Teledyne LeCroy Analyzer Settings
96 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

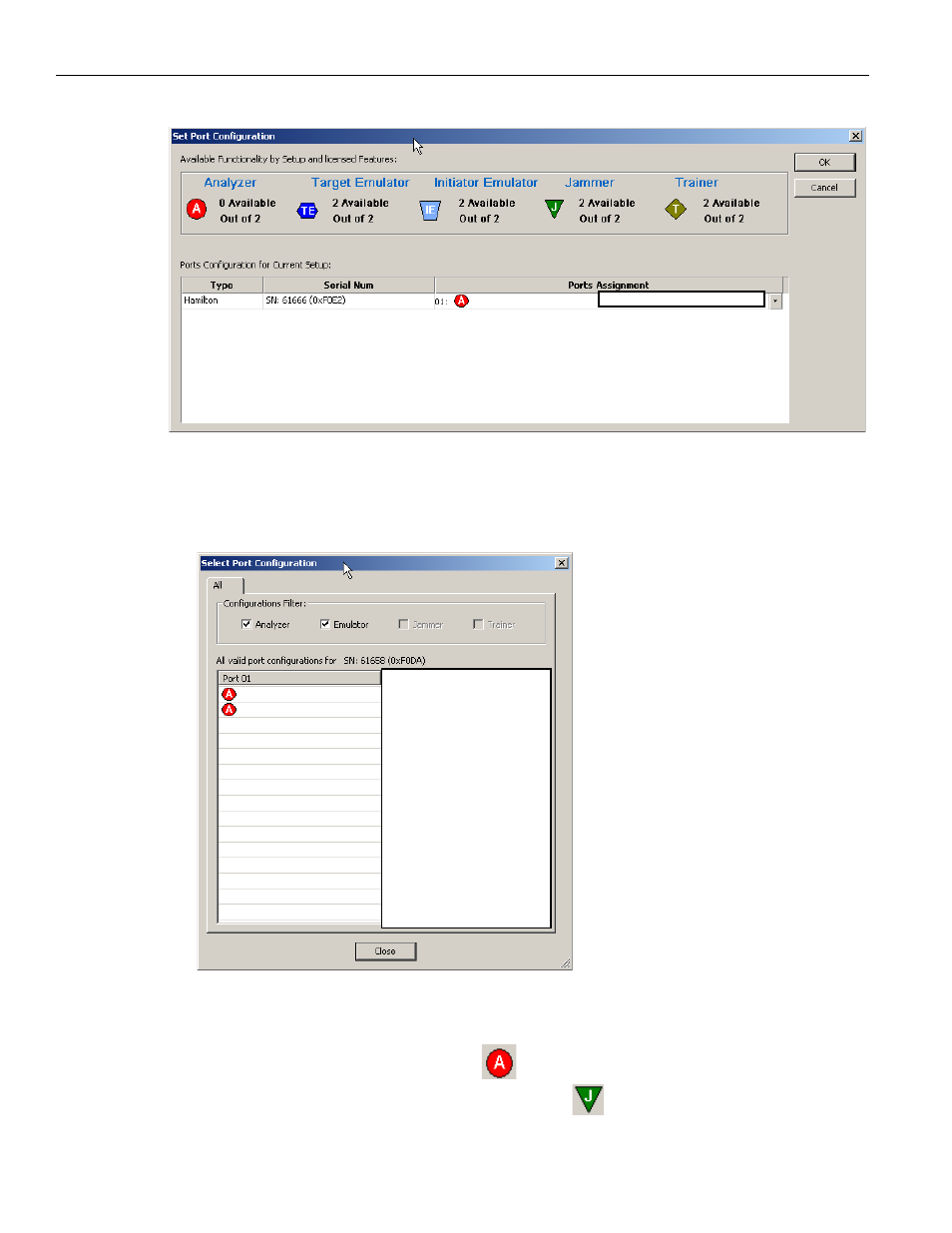

Figure 2.67: SAS: Set Port Configuration Dialog
The dialog shows the current port configuration. To select a port configuration, click the
down arrow to display the Select Port Configuration dialog.
Figure 2.68: SAS: Select Port Configuration Dialog
Port configuration depends on the application you run.
 To act as Analyzer, select the Analyzer port configuration.
 To activate the InFusion on a port, select Jammer.
