Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 61
Protocol Errors Teledyne LeCroy
 Register Device to Host
 Set Device Bit
 DMA Activate
 DMA Setup
 BIST
 PIO Setup
 Data
 Any Type
STP Frame Pattern
Double‐click STP Pattern to open the STP Pattern selection dialog.

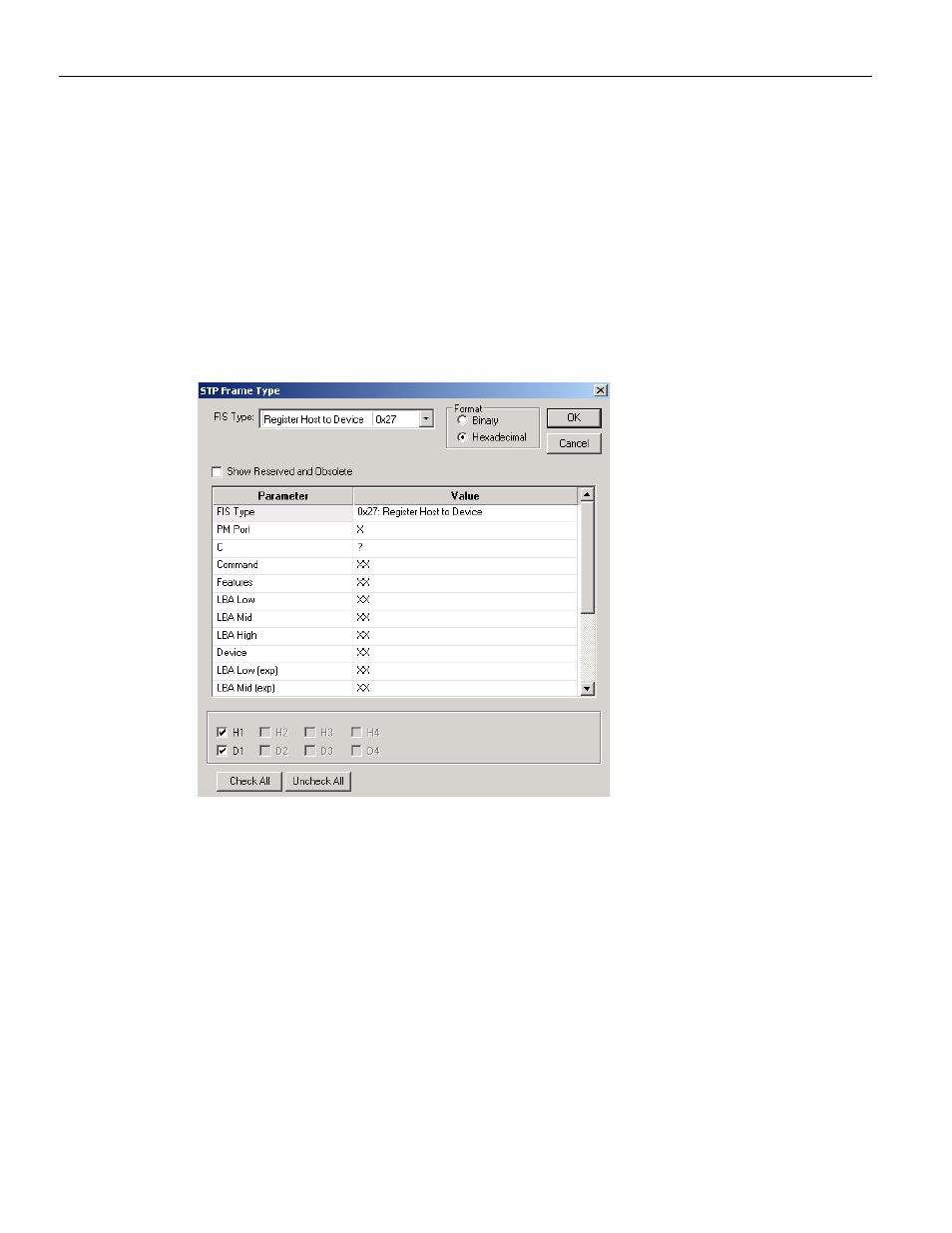

Figure 2.24: SATA: STP Pattern Dialog
The STP Pattern dialog opens with the default FIS Type as Register Host to device. To
choose another available FIS Type, click the down arrow next to the FIS Type list box.
Choose FIS Type and complete the corresponding dialog.
FIS Types (SAS and SATA)
If you select STP Frame (SAS) or FIS Pattern (SATA) for the Pattern, the FIS Pattern window
displays (see
Figure 2.25 on page 62 ). You can select the FIS Type in this window from
among the following types.
Register Host to Device
