Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 107
Creating a Data Block Teledyne LeCroy
To add another data block:
1. Click the New button in the Data Block dialog box.

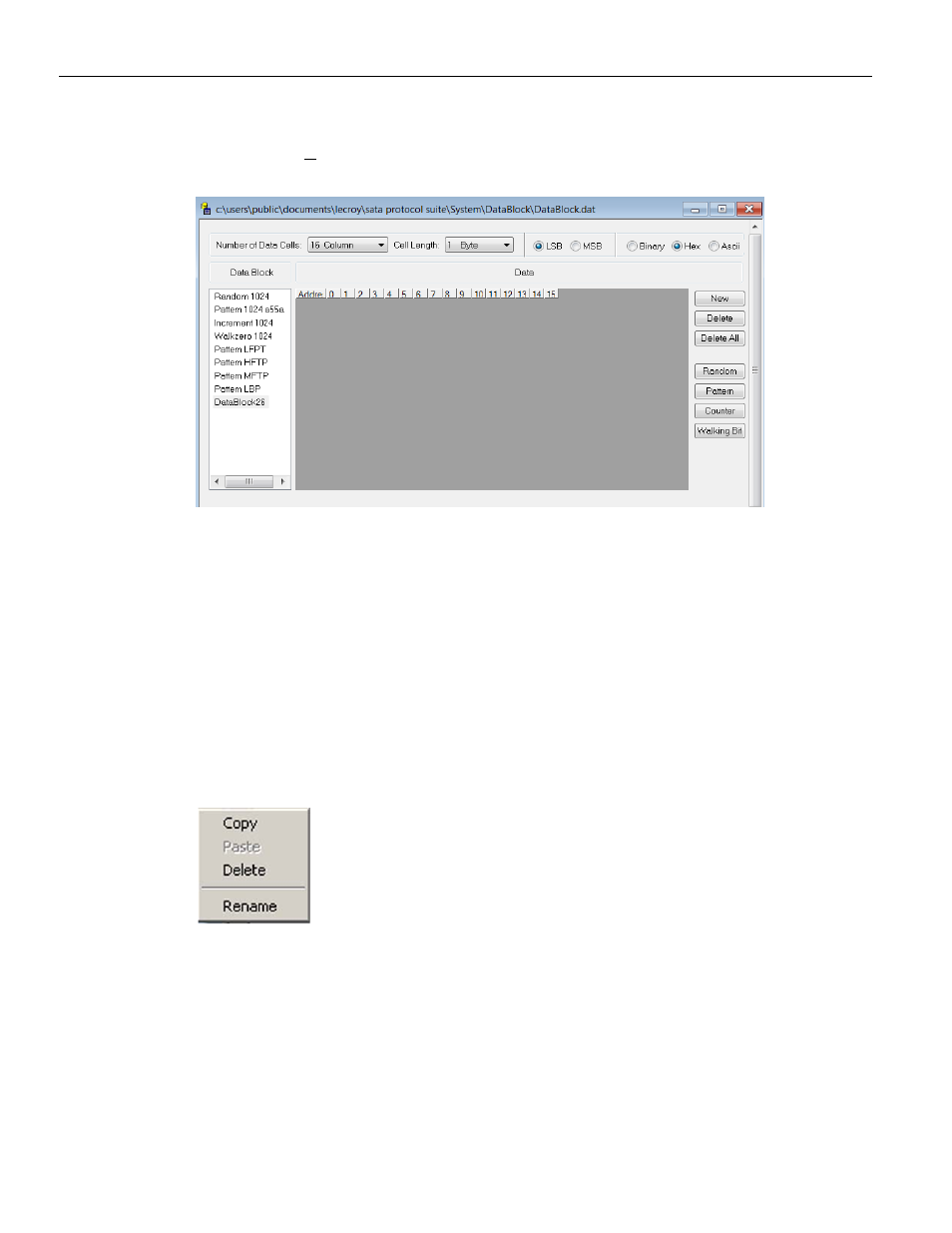

Figure 2.81: New Data Block Dialog Box
2. Choose the number of data columns (up to 16 data cells/row) and the cell length (up
to 16 bytes/cell). This is a display function only.
3. Click either the Bin, Hex, or Ascii option button to choose a number format.
4. Click either the LSB or MSB option button to choose a bit order.
2.18.1 Naming a Data Block
Each new data block automatically receives a sequential data block number. To assign a
unique descriptive name to a data block, right‐click the data block name to open the Data
Block Edit menu.
Figure 2.82: Data Block Edit
