Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 221
Setup Menu Teledyne LeCroy
3.21.7 Expansion Check
To perform a Expansion Card Data Status or Clock Status check, select the Expansion tab.

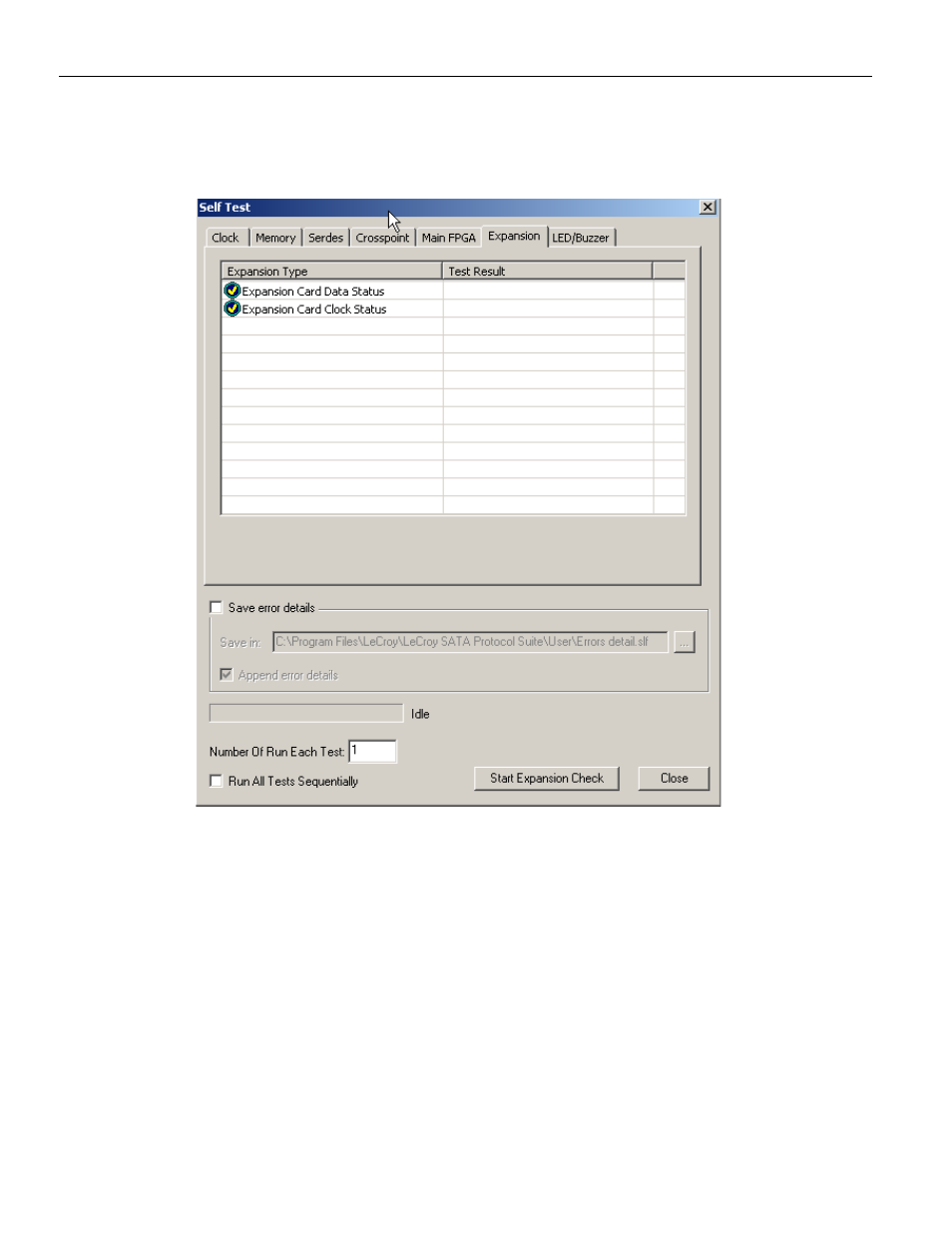

Figure 3.147: Self Test Dialog Expansion Tab
Choose the Expansion Card Data Status or Clock Status to test and click the
Start Expansion Check button. After a short time, the Test Result appears to the right of
the selected line.
