Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 47
Saving a Trace Capture Teledyne LeCroy
2.9.2 Export Read/Write Command Report
From the File menu, you can Export Read/Write Command Report as an Excel file, using
the Save As dialog.
2.9.3 Export Paired SAS Address Report
If Text View is activated, from the File menu you can save a Paired SAS Address Report as
an Excel file, using the Export Paired SAS Address Report dialog (see following figure).

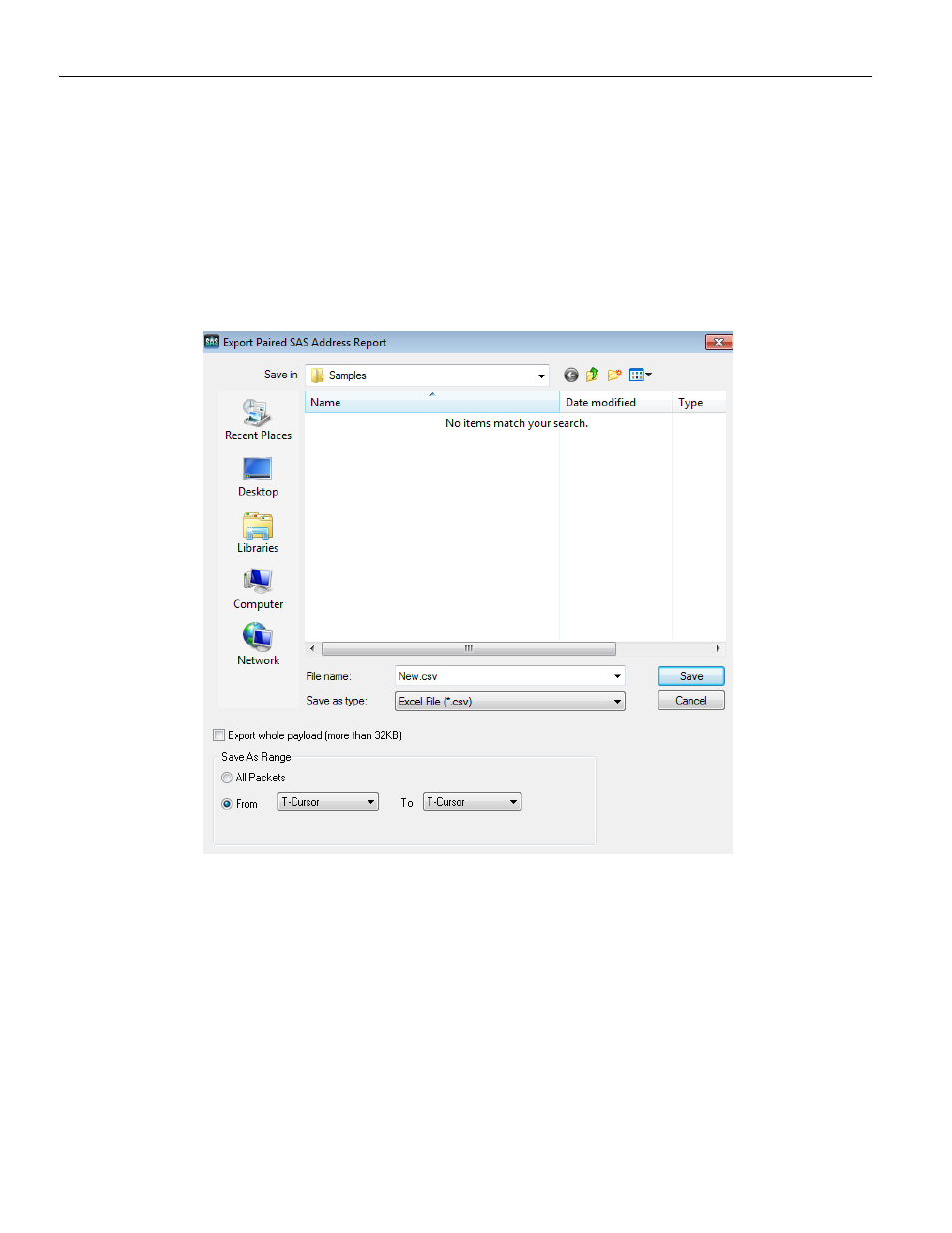

Figure 2.9: Export Paired SAS Address Report Dialog
 Check the box Export the whole payload (more than 32KB) to export the whole
payload (more than 32KB).
 You can limit the data range of the saved file. You can save:
 All Packets
 Range between selected cursors
You can view expanded traffic (particularly during discovery) in a spreadsheet format. You
can use column headers with SAS Address Pairs. For example, instead of I1, T1, I2, T2, and
so on, the columns are Source/Destination SAS Address pairs, such as S1:SEP or S2:EXP 0.
