Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 55
Protocol Errors Teledyne LeCroy
SAS vs. SATA: SATA Dialog has no radio buttons and has different drop‐down options.
Choose a Primitive from the drop‐down list box to exclude, and click OK. Repeat for
additional Primitives.
2.11.5 Data Pattern
Double‐click Data Pattern to open the Data Pattern definition dialog.

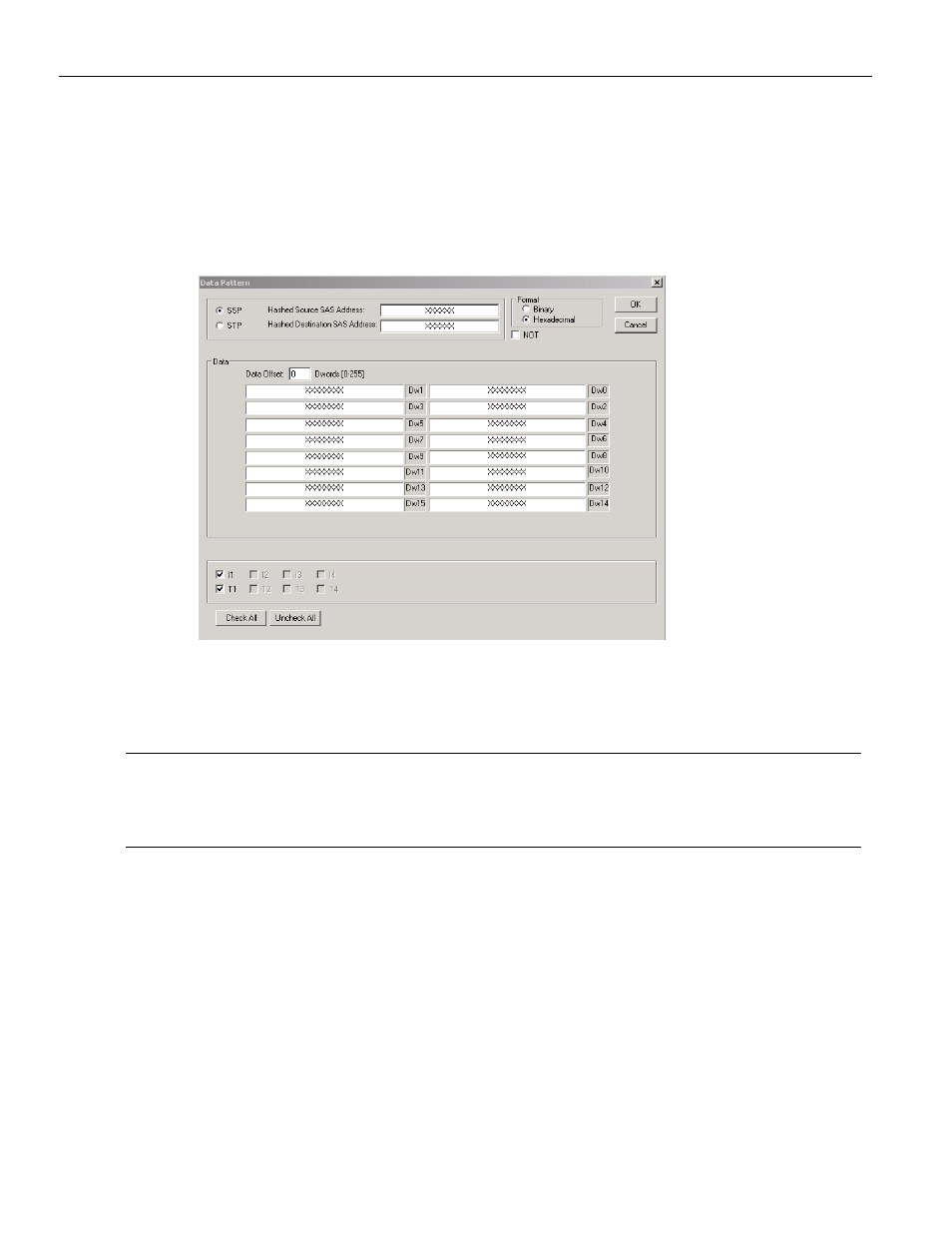

Figure 2.17: SAS: Data Pattern Dialog
SAS vs. SATA: SATA Dialog shows Port at the top and does not show SSP or STP.
Define the data pattern for capture or exclusion from capture and click OK.
Note: When entering the data pattern in the “Data” section of this screen, if you are reading the data
pattern from a recorded trace, you must reverse the order of the bytes listed for each DWORD
entered. For example, if you want to capture (or exclude) “00 01 02 03” (as displayed in the
trace), you must enter this pattern as “03 02 01 00”.
2.12 Protocol Errors
Double‐click Protocol Errors to open the Protocol Errors selection dialog (see Figure 2.18
on page 56 ).
