Navigation + View Toolbar Teledyne LeCroy
Set Time Stamp Origin

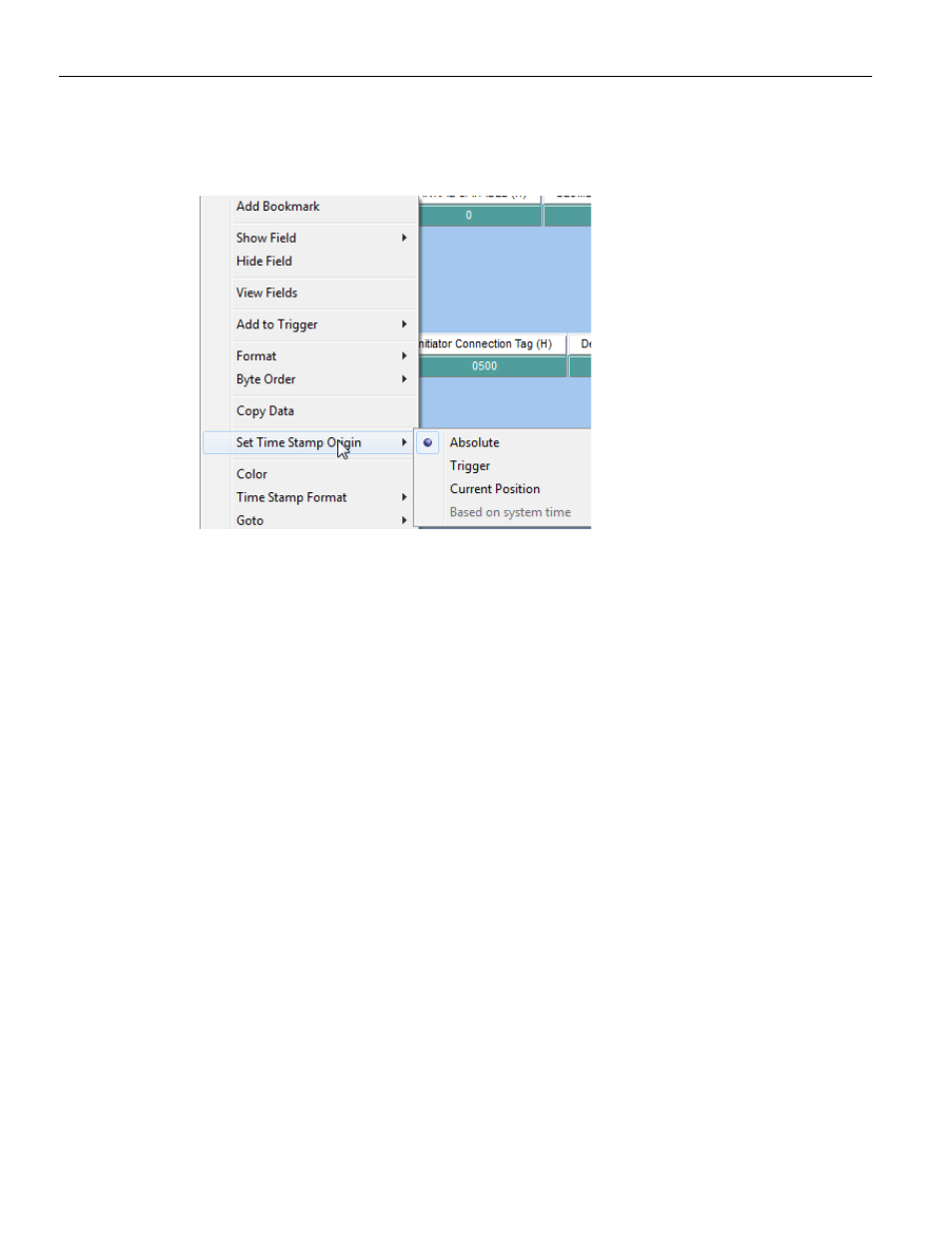

Right‐click in the sample viewer to open the fly out menu:
Figure 3.81: Bookmark Found Example in Data Viewer Display
Highlight Set Time Stamp Origin and choose either Absolute, Trigger, Current Position, or
Based on system time.
3.5.2 Filtering
The Filtering menu and options allow you to modify data in the sample viewer display to
exclude packets with a set of user‐defined patterns and show the results in all views.
To set up filtering, you must have a viewer display open.
The Filtering menu has the options:
 Enable Filtering (see “Enable Filter” on page 172 )
 Filtering (see “Filter Setup” on page 162 )
 Link Layer (SAS)
 Transport Layer (SAS)
 Application Layer (SAS)
 Physical Layer (SATA)
 FIS Layer (SATA)
 Command Layer (SATA)
 Filter Idles (see “Filter Idle” on page 172 )
