3.21.4 Serdes Check
To perform an FPGA 1 or 2 Serdes Chip check, select the Serdes tab.

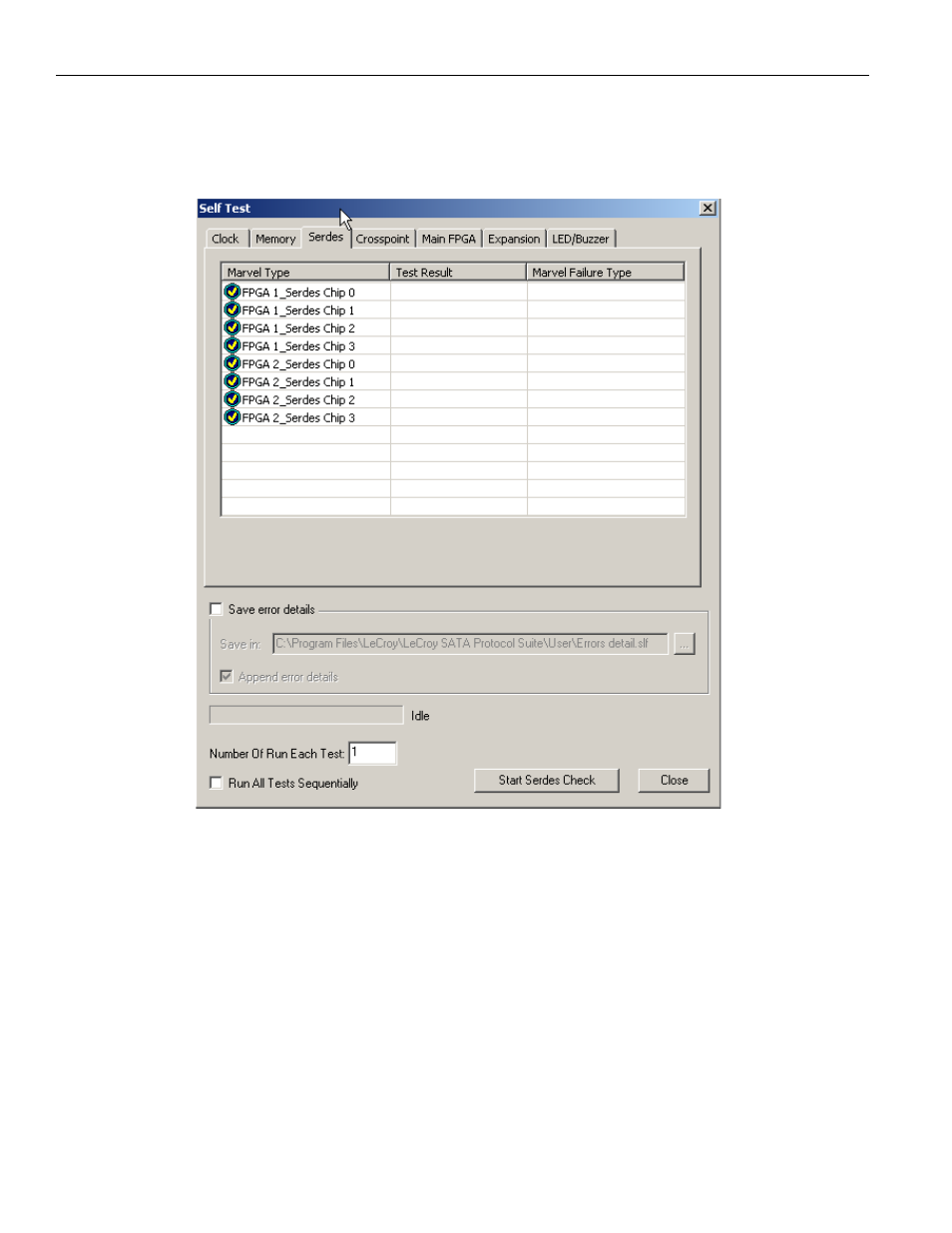

Figure 3.144: SATA: Self Test Dialog Serdes Tab
Choose the n FPGA 1 or 2 Serdes Chip to test and click the Start Serdes Check button.
After a short time, the Test Result and Marvel Failure Type appear to the right of the
selected line. Marvel Failure Type indicates the error type.
