*.sts SATA Sample file (in the SATA Examples folder “Sample” subfolder)
*.tsh SATA Search configuration file
*.wss SAS Workspace file (in the SAS System folder “Predefined\Workspace”
subfolder)
*.wst SATA Workspace file (in the SATA System folder “PreDefined\Workspace”
subfolder)
2.10.2 Example Projects
The Analyzer includes example projects that you can use to perform an immediate
analysis without any setup.
The Analyzer system software has a pre‐defined folder (directory) structure for storing all
files. All example files are in the Examples folder under the Sierra M6‐1 folder.
It is strongly recommended that you open some example files to see types of projects
that you can create.
2.10.3 Run an Example Analysis Project
To run an example project:
1. Select File > Open.
2. Locate example analysis projects by looking in the Examples folder. Examples are
available for AdvanceCaptr, EasyCaptr, Exerciser, PatternGenerator, Samples, and
User Define Decoding Script.
3. In the EasyCaptr folder, choose an example *.sac file and click Open to display the
Open dialog.

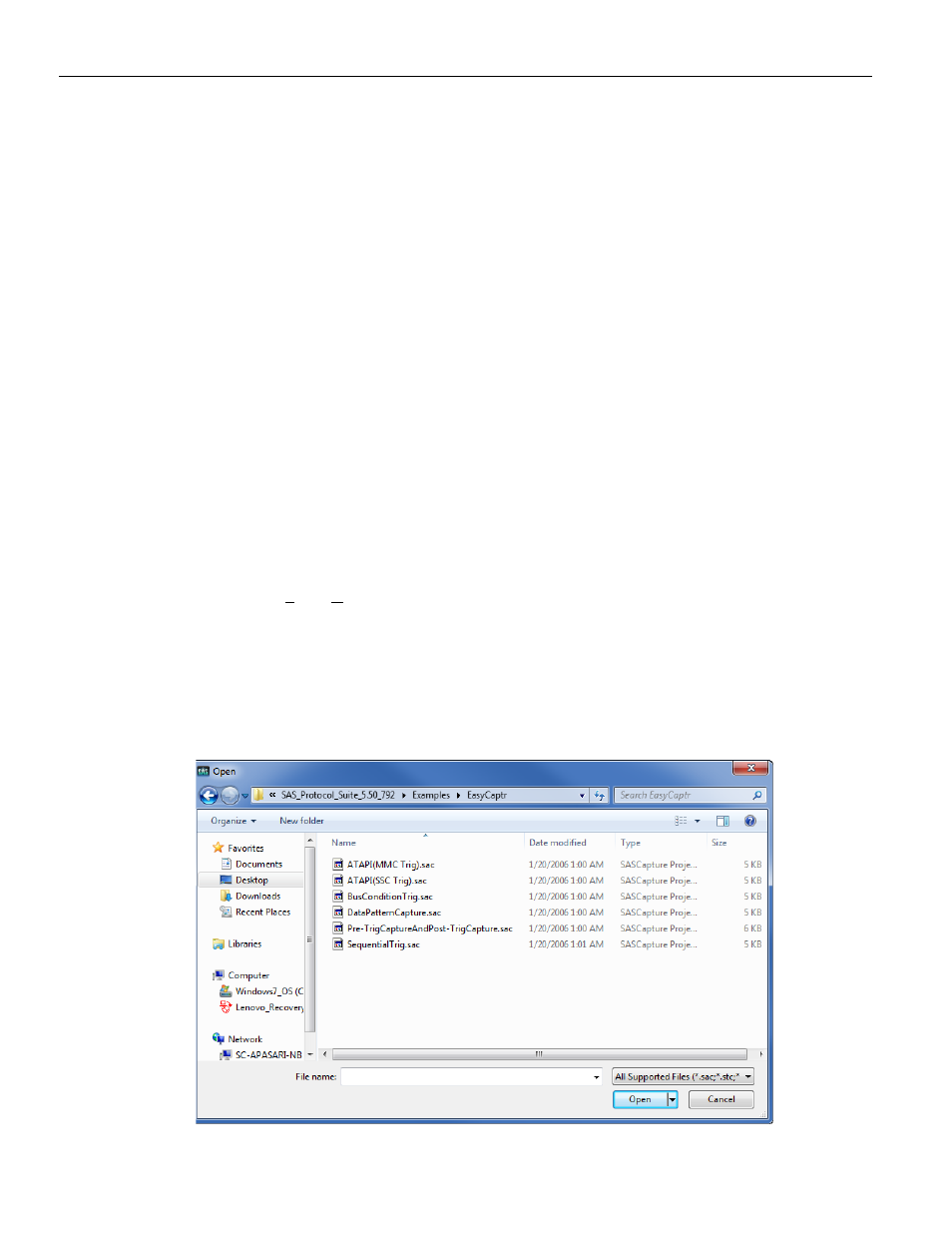

Figure 2.10: File Open Dialog
