18 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

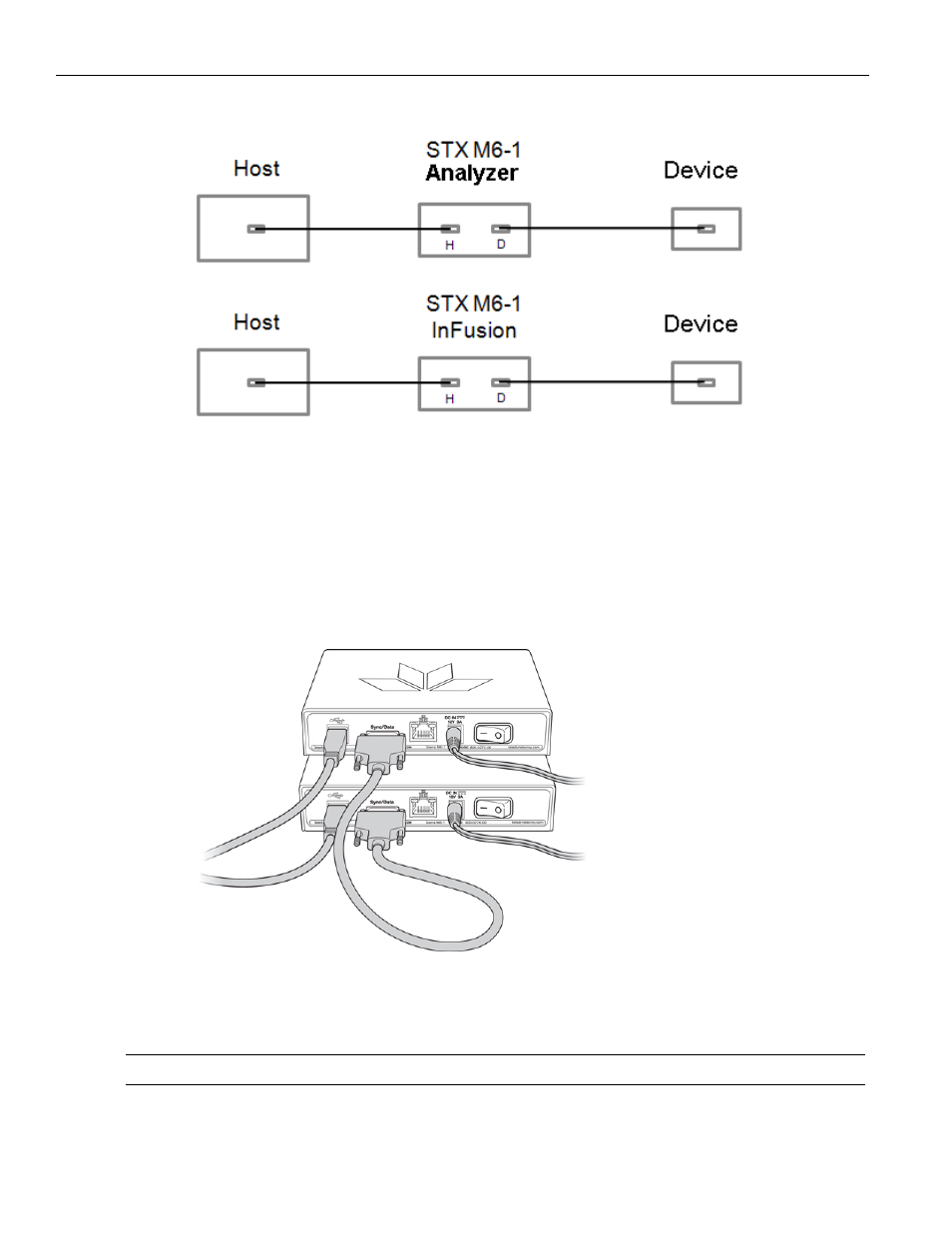

Figure 1.4: Hardware Setup
1.7 Cascading Sierra Analyzers
A Sierra M6‐1 analyzer includes a built‐in Sync port on the back panel (between the USB
and Ethernet ports). See
Figure 1.3 .
To connect two Sierra M6‐1 analyzers, plug the ends of a Micro‐D Sync cable [AC031XXA‐
X] into the Sync ports.
Figure 1.5: Cascading Two M6-1 Analyzers with a Micro-D Sync Cable
You must connect each of the analyzers to the host machine using the USB port or
Ethernet port.
Note: Before connecting, stop all recording. However, you do not have to turn power off.
For Sierra M6‐1 analyzers connected by Sync cables, the SAS/SATA Protocol Suite
application automatically synchronizes their recording timestamps, starts, and stops.
