3.21.2 Clock Check
To perform a Clock check, choose the clock to test and click the Start Clock Check button.
After a short time, the Test Result appears to the right of the selected line.

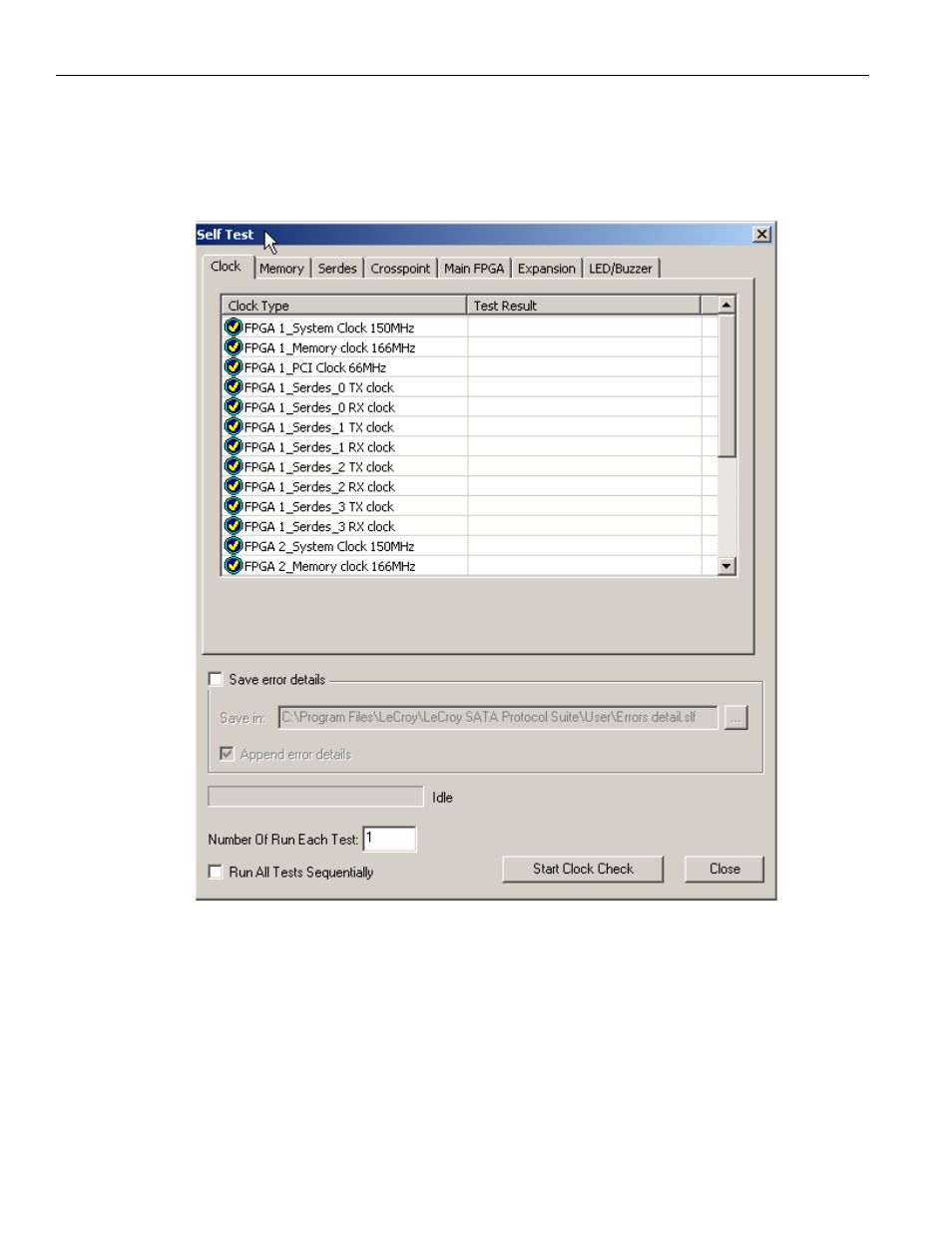

Figure 3.142: SATA: Self Test Dialog Clock Tab
Test Result: OK or Error
If a test is OK and you specified one run, the Test Result is OK: 1 times.
If a test has an error and you specified one run, the Test Result is Error: 1 times.
Saving
You can save any check result by checking the Save error details check box and specifying
a destination file name.
