Teledyne LeCroy Port Status
188 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

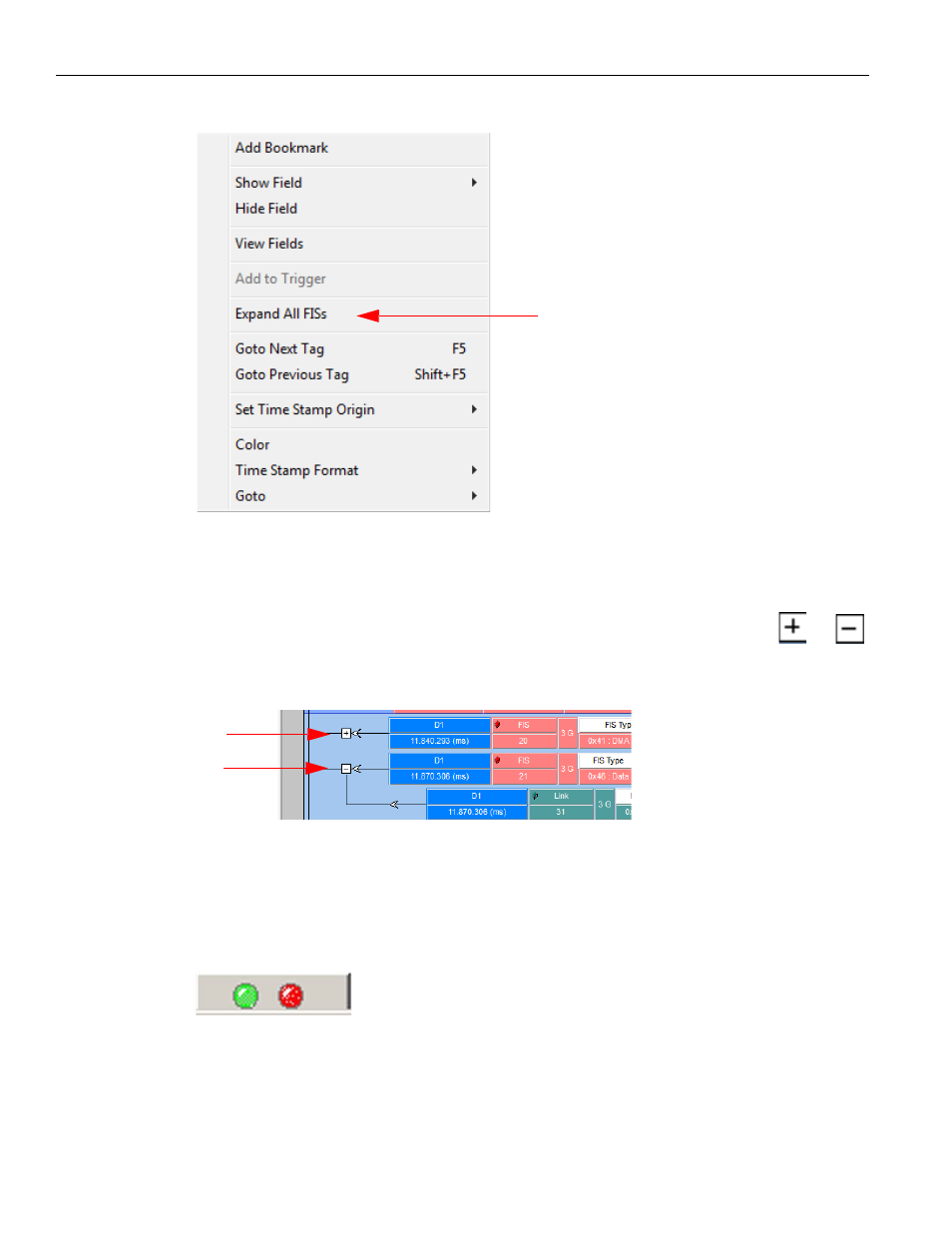

Figure 3.113: Expand All FIS’s
To collapse, right‐click the mouse in a data field and choose Collapse All FIS’s or Collapse
All ATA Cmd.s.
You can expand or collapse specific packets and commands by clicking on the or
buttons.
Figure 3.114: Expand/Collapse Specific Layers.
3.7 Port Status
You can get an overview of the active ports by clicking the Port Status button at the
bottom right of the application window.
The Port Status displays the Port, Speed, and Analyzer (see Figure 3.115 on page 189 ).
