 Command: All, Custom, Check Power Mode, Execute Device Diagnostic,
Flush Cache, Identify Device, Read DMA Ext, Read FPDMA Queue, Set Feature,
Write DMA Ext, Write FPDMA Queue
 PM Port
 Direction: All, H‐>D, D‐>H, I‐>T, T‐>I, or Custom
 Number of FIS: All, Custom, or a number
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Incomplete, Normal Output
 Timeout: such as All, Custom, N/A, Yes and No (see “Time out of ATA Command
Report” on page 130 )
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number of occurrences
 %: of total count

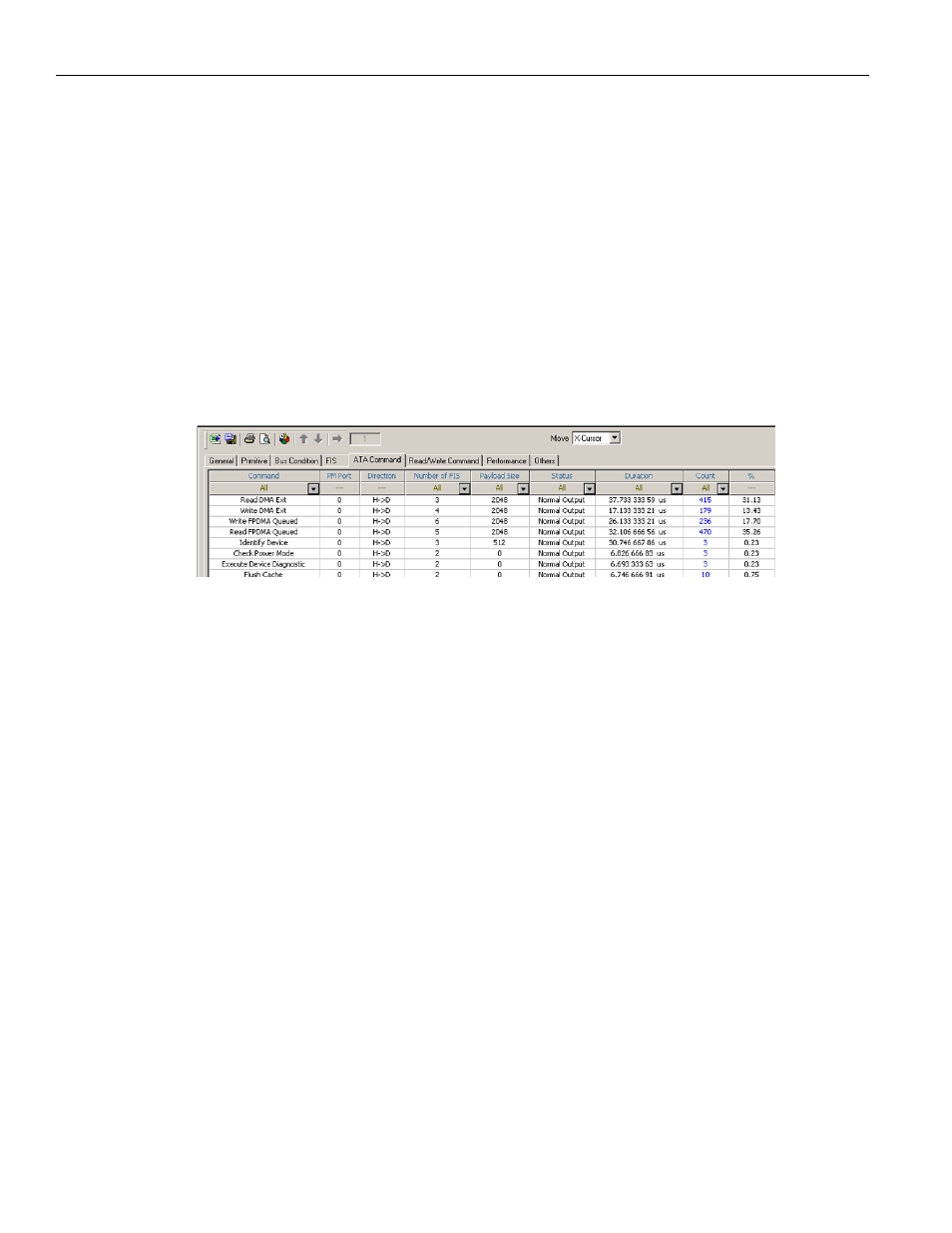

Figure 3.29: SATA: ATA Command Report
Time out of ATA Command Report
The Time out shows the NCQ time out. It is applicable for only NCQ commands. A
threshold can be set in the "NCQ commands Timeout Threshold", the default value is
1000 sec (the user can change it to any value). The statistical report provides a "Time
out" report based on this threshold. Any NCQ command that takes more than the given
threshold is flagged as "yes", which means that a timeout occurred for that command.
ATAPI Report
To display the ATAPI Report, click the ATAPI tab. The ATAPI Report displays information in
the following columns:
 Command: All, Custom, Inquiry, Mode Sense 10, Read10, Request Sense
 Direction: All, H‐>D, D‐>H, or Custom
 Number of FIS or Number of Transport: All, Custom, or a number
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Check Condition, Good
 Duration: All, Custom, or time unit (accumulative)
 Count: All, Custom, or a number of occurrences
 %: of total count
