Teledyne LeCroy Preferences
200 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual
3.15 Preferences
Preferences allow you to define template files for new Analyzer projects, to specify how
sample files appear when opened, and to set ATAPI and SCSI Spec Assignments.
To perform settings in an open sample view, select Setup > Preferences
3.15.1 General Tab

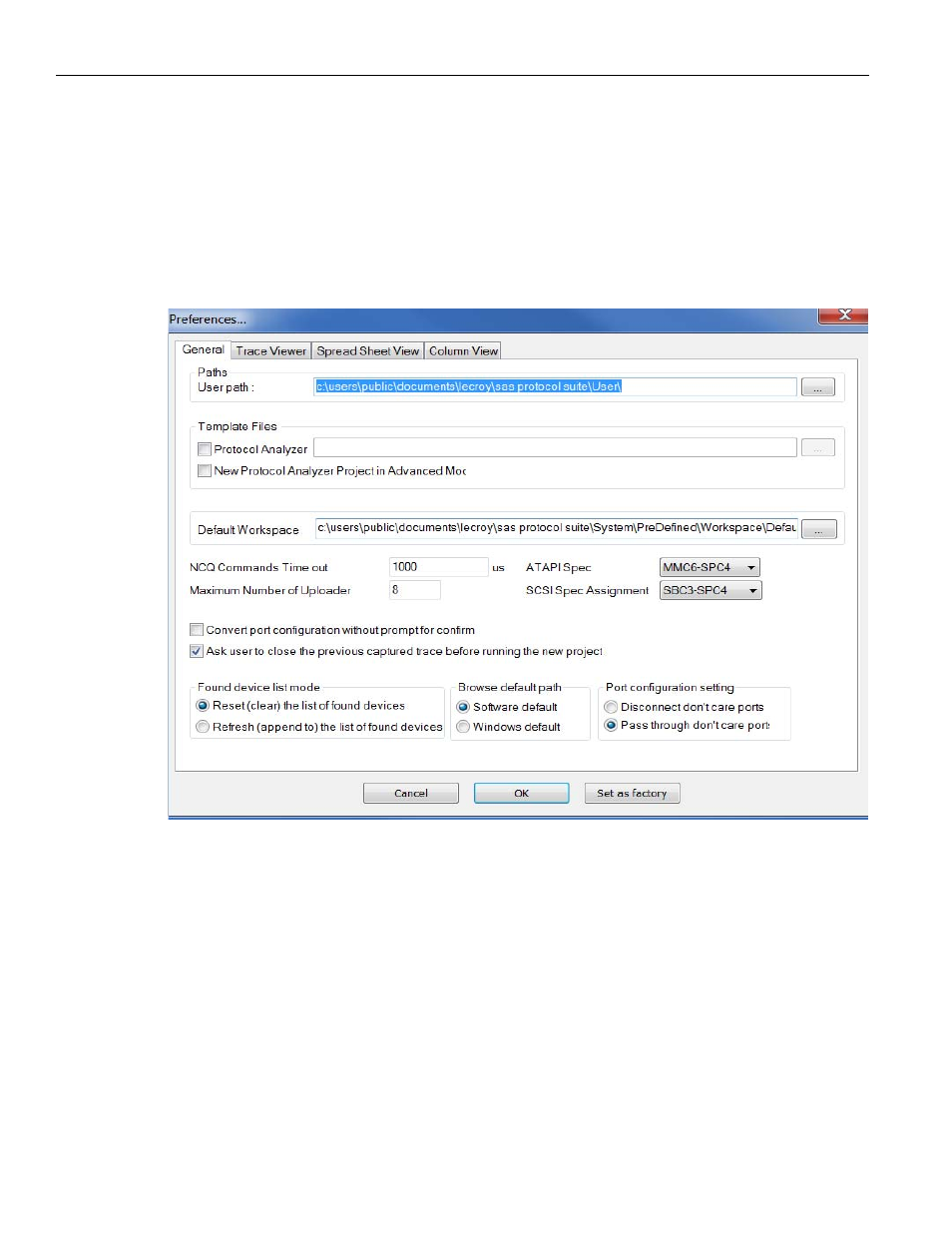

Figure 3.126: Preferences Dialog General Tab
The SATA Preferences dialog has the same options, except that it does not have
“SCSI spec assignment”.
Paths
User Path specifies the “User” folder path, used by the software after launching the Open dialog.
Template Files
Protocol Analyzer: You can use a pre‐saved analyzer project file as a template. Whenever
you make a new project file, the software uses the template to initialize the project file.
New Protocol Analyzer Project in Advanced Mode: When you use the New menu item to
create a new project file, the software switches to Advanced mode automatically.
