Protocol errors – Teledyne LeCroy Sierra M6-1 SAS_SATA Protocol Analyzer User Manual User Manual
Page 81
Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual
79
Trigger Setup
Teledyne LeCroy
Protocol Errors
Double‐click Protocol Errors in the Pattern window to open the Protocol Errors dialog.

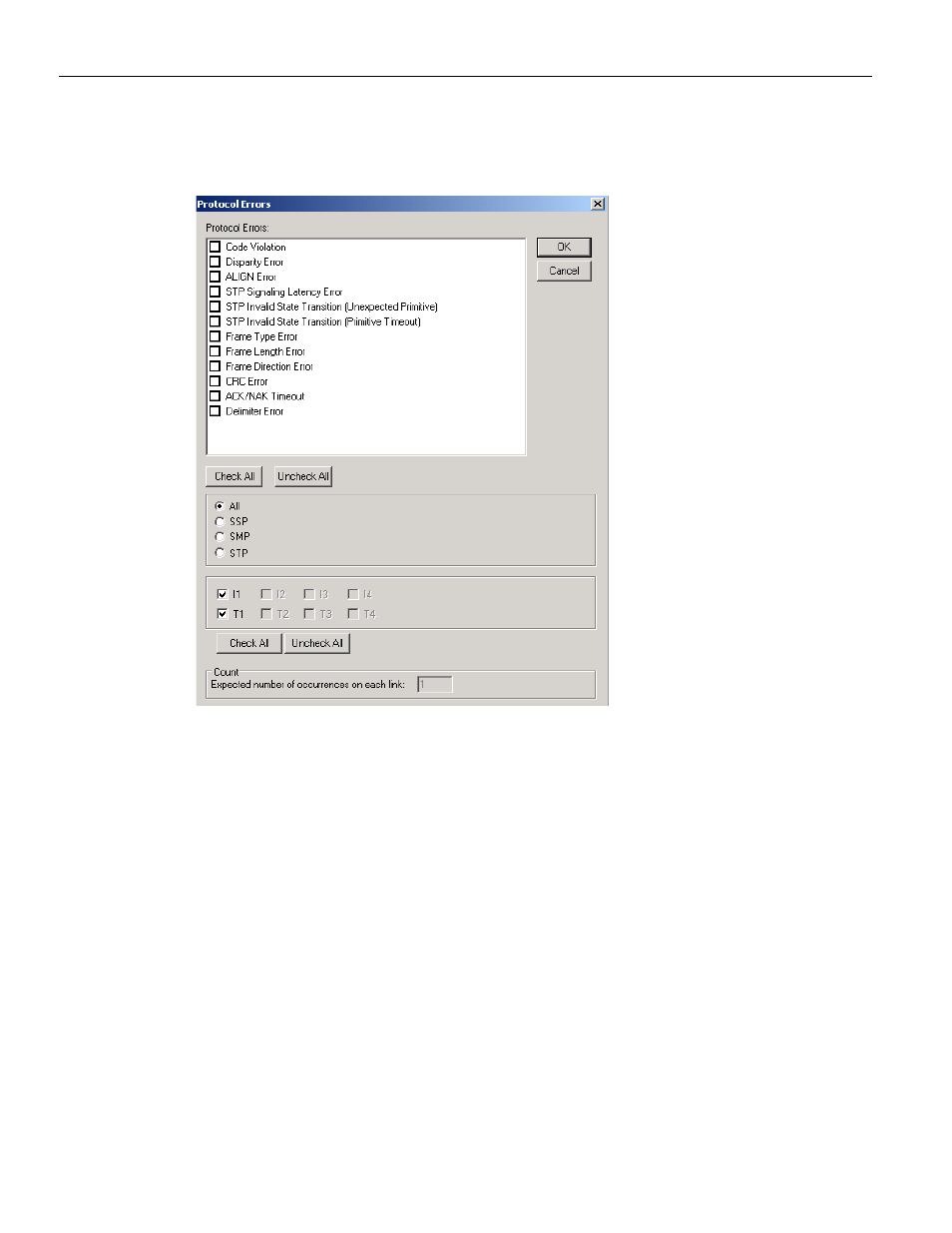

SAS: Protocol Errors Dialog
SAS vs. SATA: SATA Dialog shows Port and does not show SSP, SMP, or STP radio buttons.
Check the protocol error(s) to trigger on and click OK.
