122 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

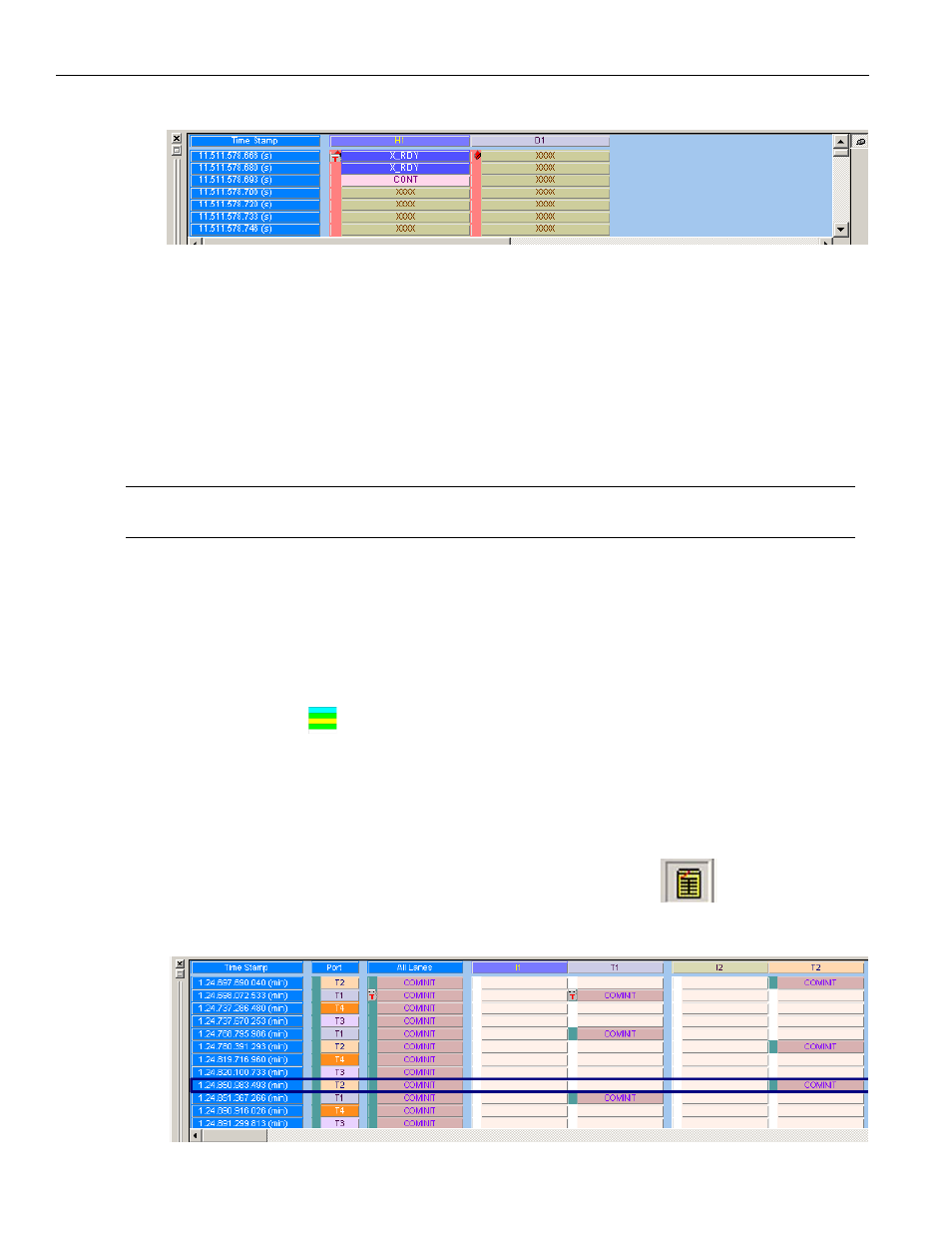

Figure 3.14: SATA: Column View
Right‐click in the Column View to display commands:
 Preferences
 Time Stamp Format (LeCroy Format, Milli Second, Micro Second)
 Go to (Trigger Position, X Position, Y Position, Packet Number, Time Stamp, Book‐
mark, Begin, End)
 Bookmark
 Goto within Packet (SOF, EOF, Next HOLD, Previous HOLD, Next HOLDA,
Previous HOLDA, Next Align, Previous Align, Next R_IP, Previous R_IP)
Note: The Column View displays the CRC value. To see different formats (10b, 8b, scrambled, and so
on), select a format by clicking its Tool menu button.
Resize Columns
You can resize the columns in Column View by clicking in the column boundary and
dragging the boundary to a new position.
Rearrange Columns
You can rearrange columns by left‐clicking in the column title and then dragging the drag‐
and‐drop icon to a new position.
3.3.7 Text View
Text View displays the captured data interpreted as transaction frames, grouped in
columns by port.
To display Text View, select Analysis > Text View or click the button on the
View Type toolbar.
Figure 3.15: SAS: Text View
