Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 29
Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars Teledyne LeCroy

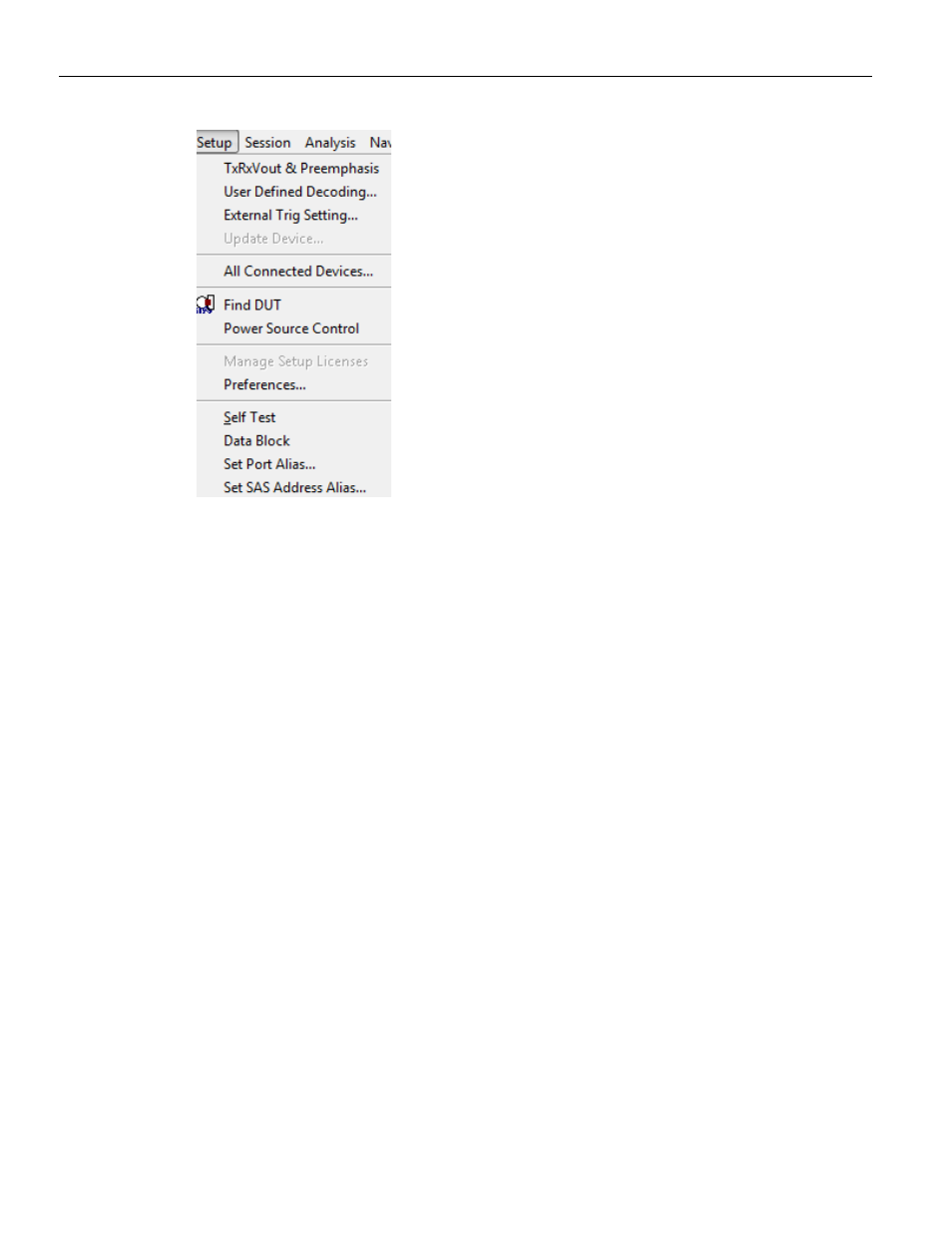

Figure 1.19: Setup Menu Option
1.11.3 Session
The Session menu has the following options:
 Start Capture/Record ‐ Start capture or record a trace
 Pause Capture/Record ‐ Aborts the capture without saving
 Stop Capture/Record ‐ Stops the hardware
1.11.4 Analysis
The Analysis menu allows you to view captured data (see Figure 1.20 on page 30 ) and
(see Figure 1.20 on page 30 ).
Menu items and toolbar options are enabled or disabled and displayed or hidden based
on the type of window open. The following types of windows can be displayed:
 No active window
 Project file open
 Trace file open
