Teledyne LeCroy Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars
32 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

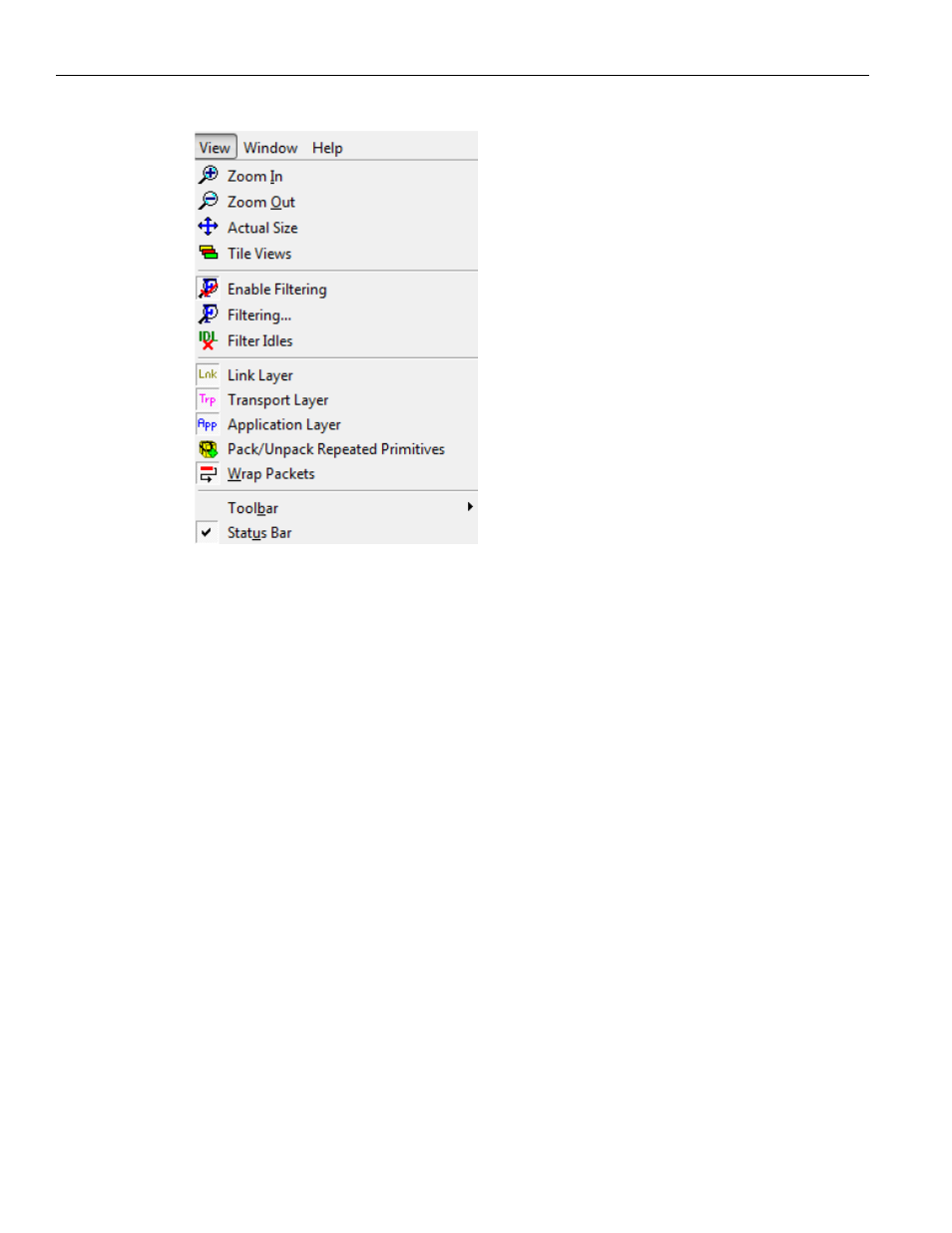

Figure 1.22: View Menu Option
 Zoom In (refer to “Navigation + View Toolbar” on page 156 )
 Zoom Out (refer to “Navigation + View Toolbar” on page 156 )
 Actual Size (refer to “Navigation + View Toolbar” on page 156 )
 Tile Views (refer to “Navigation + View Toolbar” on page 156 )
 Enable Filtering (refer to “Filter Setup” on page 162 )
 Filtering (refer to “Filter Setup” on page 162 )
 Filter Idles (refer to “Filter Setup” on page 162 )
 Link Layer‐SAS only (refer to “Packet View Toolbar” on page 179 )
 Transport Layer‐SAS only (refer to “Packet View Toolbar” on page 179 )
 Application Layer‐SAS only (refer to “Packet View Toolbar” on page 179 )
 Pack/Unpack Repeated Primitives‐SAS only (refer to “Packet View Toolbar” on
page 179 )
 Physical Layer‐SATA only (refer to “Packet View Toolbar” on page 179 )
 FIS Layer‐SATA only (refer to “Packet View Toolbar” on page 179 )
 Command Layer‐SATA only (refer to “Packet View Toolbar” on page 179 )
 Wrap Packets (refer to (refer to “Packet View Toolbar” on page 179 )
 Toolbar (allows you to customize the toolbar with the options given below)
 Main
 Record+Capture
 Analysis
 Navigation+View
 Packet View
 Column View
 Cursor position
 Target Emulator
 Status Bar (refer to “Cursor Position Status Bar” on page 190 )
