Teledyne LeCroy Analysis
148 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

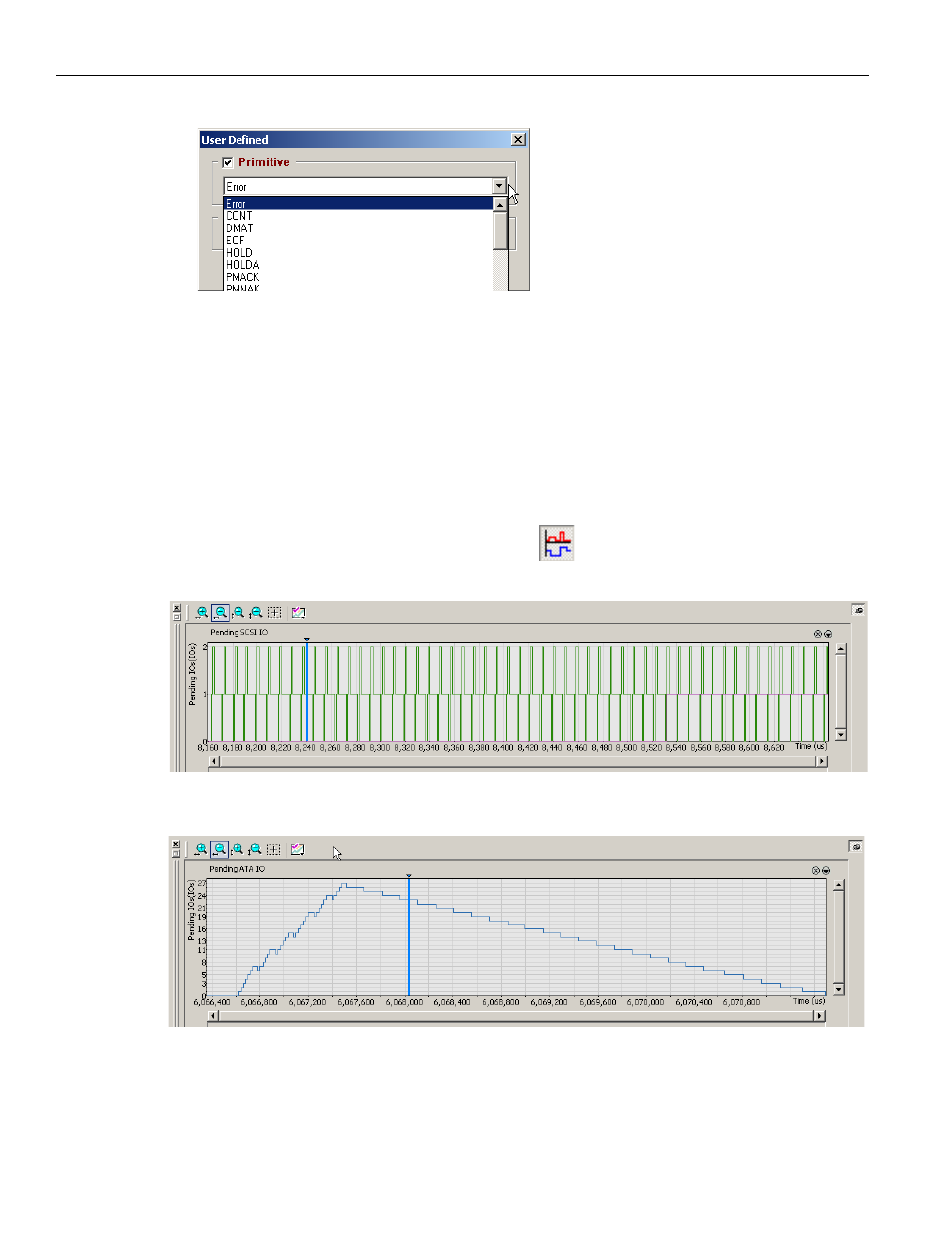

Figure 3.62: SATA: Choosing a Primitive
Check a Connection Type option radio button, if available, and click OK.
Zoom
You can Zoom from x1 to x256.
3.3.14 Bus Utilization View
The Bus Utilization View displays information on pending IO. To display the
Bus Utilization View of the current capture, 
click View > Bus Utilization View or click the button on the View Type toolbar.
Figure 3.63: SAS: Bus Utilization View for Pending SCSI IO.
Figure 3.64: SATA: Bus Utilization View for Pending ATA IO
Available Bus Utilization Views are:
 Pending SCSI IO (for SAS)
 Pending ATA IO (for SATA)
