Exclude RRDY (SAS only)
Check this to exclude RRDY primitives from the data capture.
Exclude NOTIFY (SAS only)
Check this to exclude NOTIFY primitives from the data capture.
Exclude Idle
Check this to exclude Idles from the data capture.
Define different patterns for pre-trigger and post-trigger data captures
Replaces the Capture tab with a Pre‐Trigger Capture tab and a Post‐Trigger Capture tab.
2.5 SAS/SATA Software Menus and Toolbars
The SAS and SATA software has the following menus and toolbars.
2.5.1 SAS/SATA Main Toolbar
The following figure displays the SAS main toolbar.
Note: The sections “SAS/SATA Main Toolbar” on page 40 and “SATA Main Toolbar” on page 40 are
shown separately to indicate the different context sensitive toolbar options depending on
whether SAS or SATA trace or project is open.
Figure 2.3: SAS: Software Menus and Toolbar
2.5.2 SATA Main Toolbar

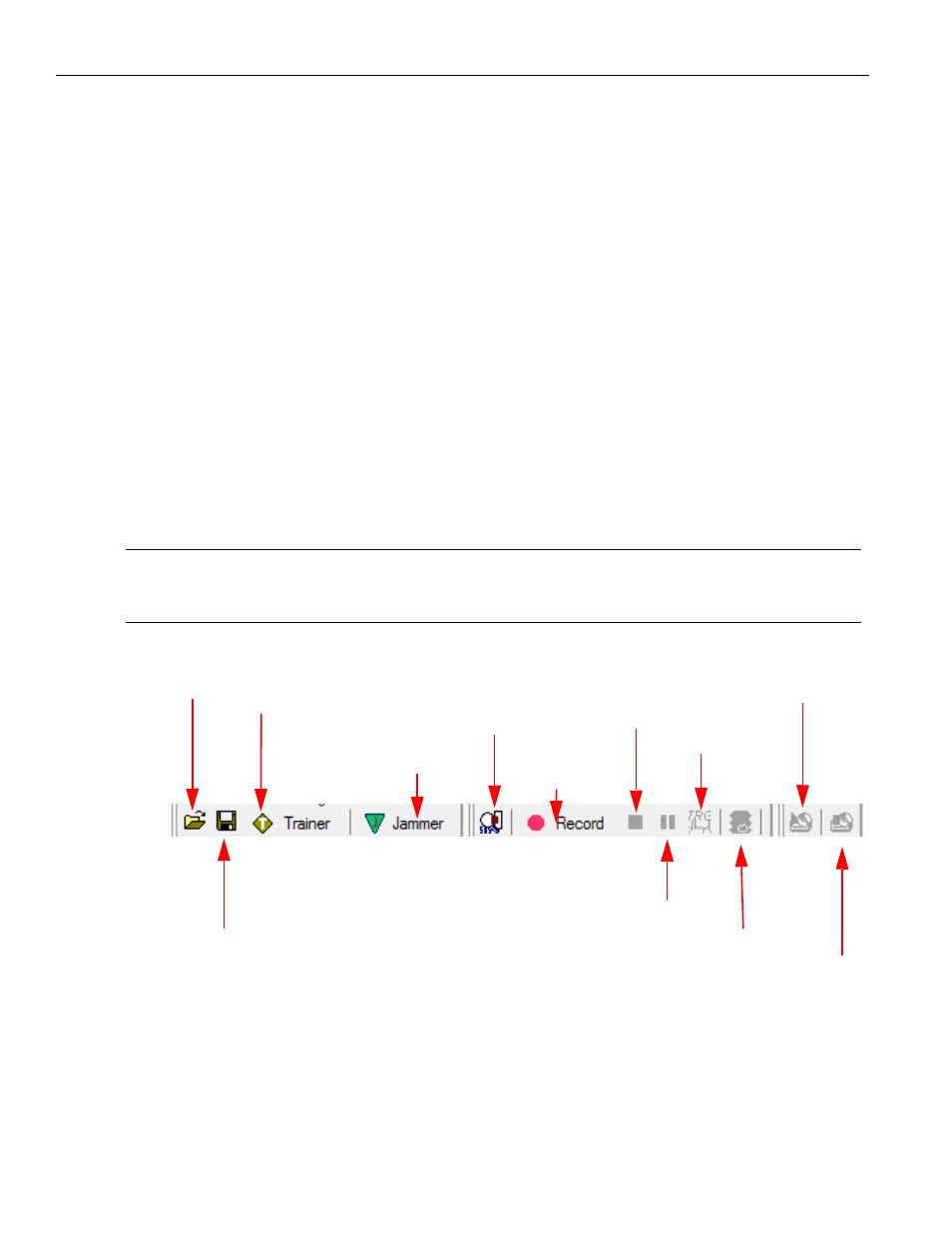

The following figure displays the SATA main toolbar.
Open Project File
Launch Trainer
Launch Jammer
Abort Capturing Without Saving Sample File
Start Target Emulator
Find DUT
Stop Recording
Upload Manager
Start Recording
Stop Target Emulator
Save
Manual Trigger
