Teledyne LeCroy Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars
34 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

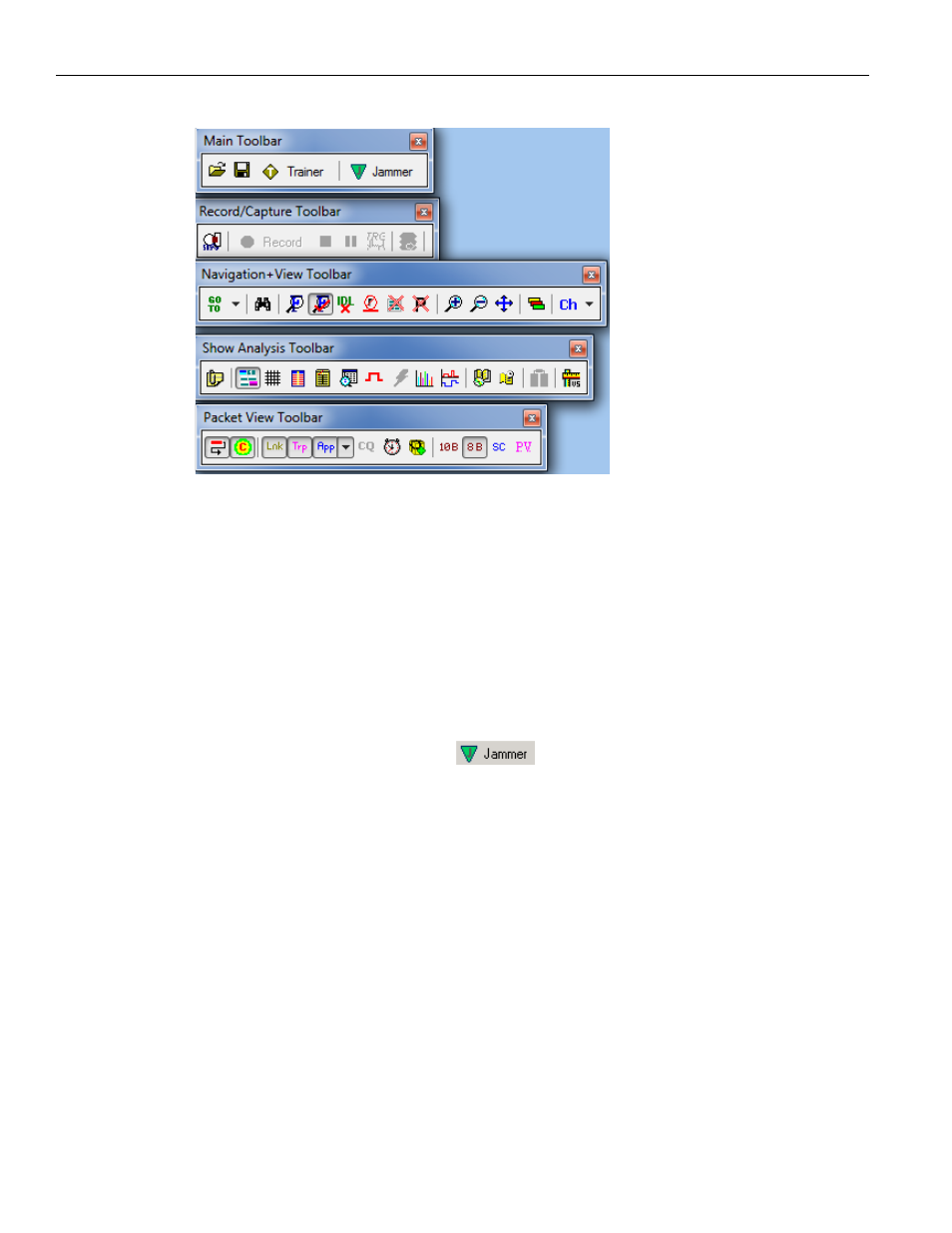

Figure 1.23: SAS/SATA Protocol Suite Toolbars
1.11.10 Port Status
You can display an overview of the active ports by clicking the buttons at the bottom right
of the main window (
See “Port Status” on page 188 ).
1.11.11 InFusion
The Teledyne LeCroy InFusion™ Error Injector and Traffic Modifier is an error injector and
traffic modification tool for traffic passing through the Jammer. It allows you to verify
real‐world fault handling for Serial Attached SCSI (SAS) and Serial ATA (SATA)
systems.Click on the Jammer icon to invoke the Teledyne LeCroy SAS or SATA
InFusion, (see “InFusion Overview” on page 227 ).
You can toggle between the InFusion and Analyzer panes by using the Alt+Tab keys, the
Windows Task Bar or by pressing the respective toolbar button in each pane.
1.11.12 Analyzer and InFusion
Sierra M6‐1 Analyzers can be used in tandem to combine simultaneous error injection
and trace capture/analysis capabilities (see
Figure 1.24 on page 35 ).
