Teledyne LeCroy Trigger Setup
70 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual
2.13.4 Choosing a Parameter
Either highlight the category and click the Add>> button, or double‐click the category, to
open a corresponding definition dialog.
To remove an item, highlight it in the Project Tree, then click the <button.
2.13.5 Triggering on a Timer
Triggering based on a timer means that the trigger is activated when the timer expires.
Other triggers can preempt the timed trigger while it is counting down the time. The
timer starts when the project s started.
You can set a timer independently of any other trigger selection, to cause an
unconditional trigger after a set time.
To set the timer value, double‐click Timer in the Pattern window to open the Timer
dialog.

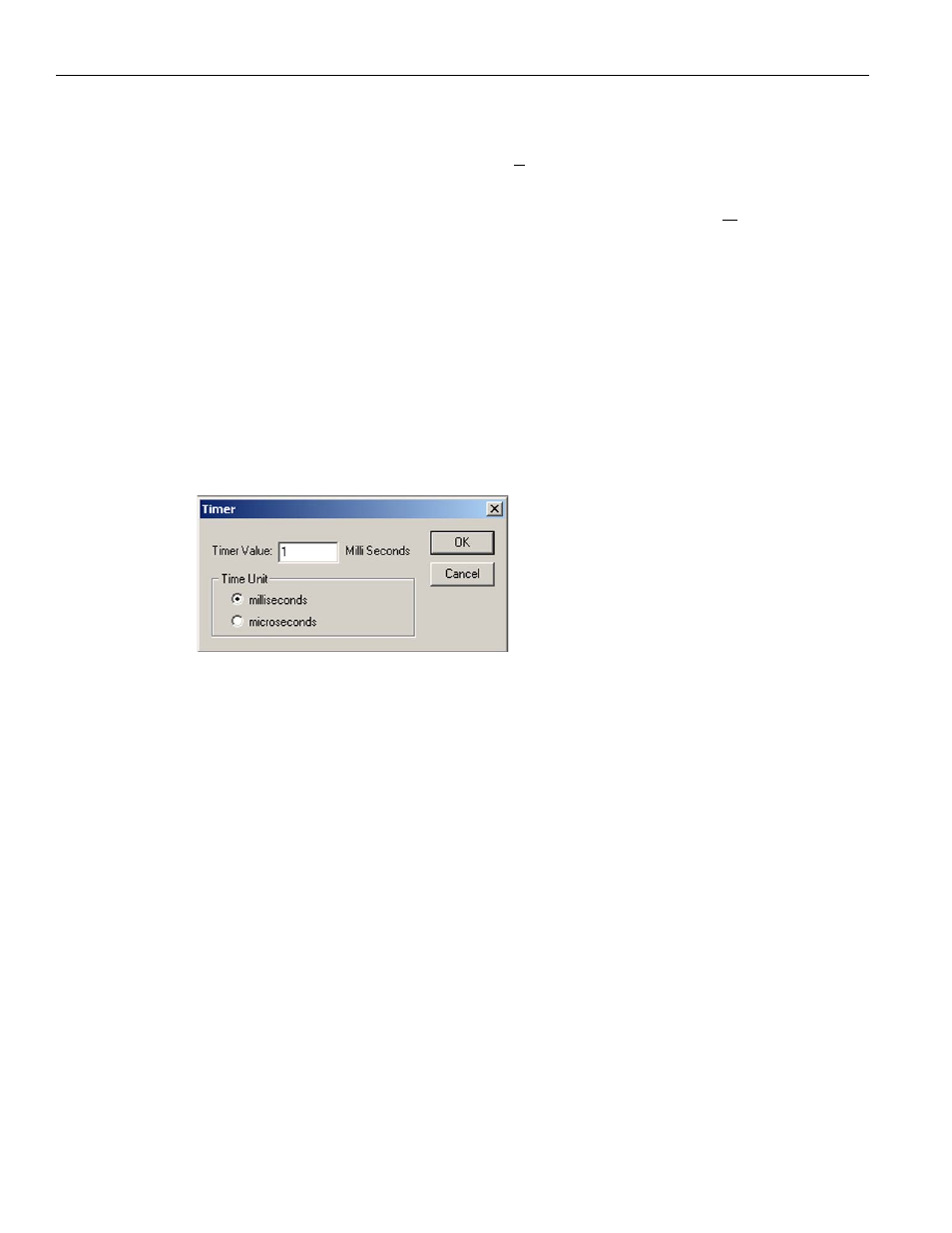

Figure 2.37: Timer Dialog
Check a Time Unit, enter the Timer Value, and click OK.
2.13.6 Timeout
Selecting Timeout for the pattern displays the Timeout Pattern dialog (see Figure 2.38 on
page 71 ).
