Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 253
Example 1: Creating a Single Event and Action that Removes a Primitive Teledyne LeCroy
4.9 Example 1: Creating a Single Event and Action that Removes a
Primitive
In this example, the Global Rules area of the scenario waits for each RRDY Normal
primitive from the initiator and removes it.
1. Click the New Scenario button in the main library or one of the device libraries.
2. In the Scenario Properties dialog, enter the scenario name, description, and
direction of traffic change (see Figure 4.11 on page 241 ).
3. In the Global Rules area, click the prompt to add an event.

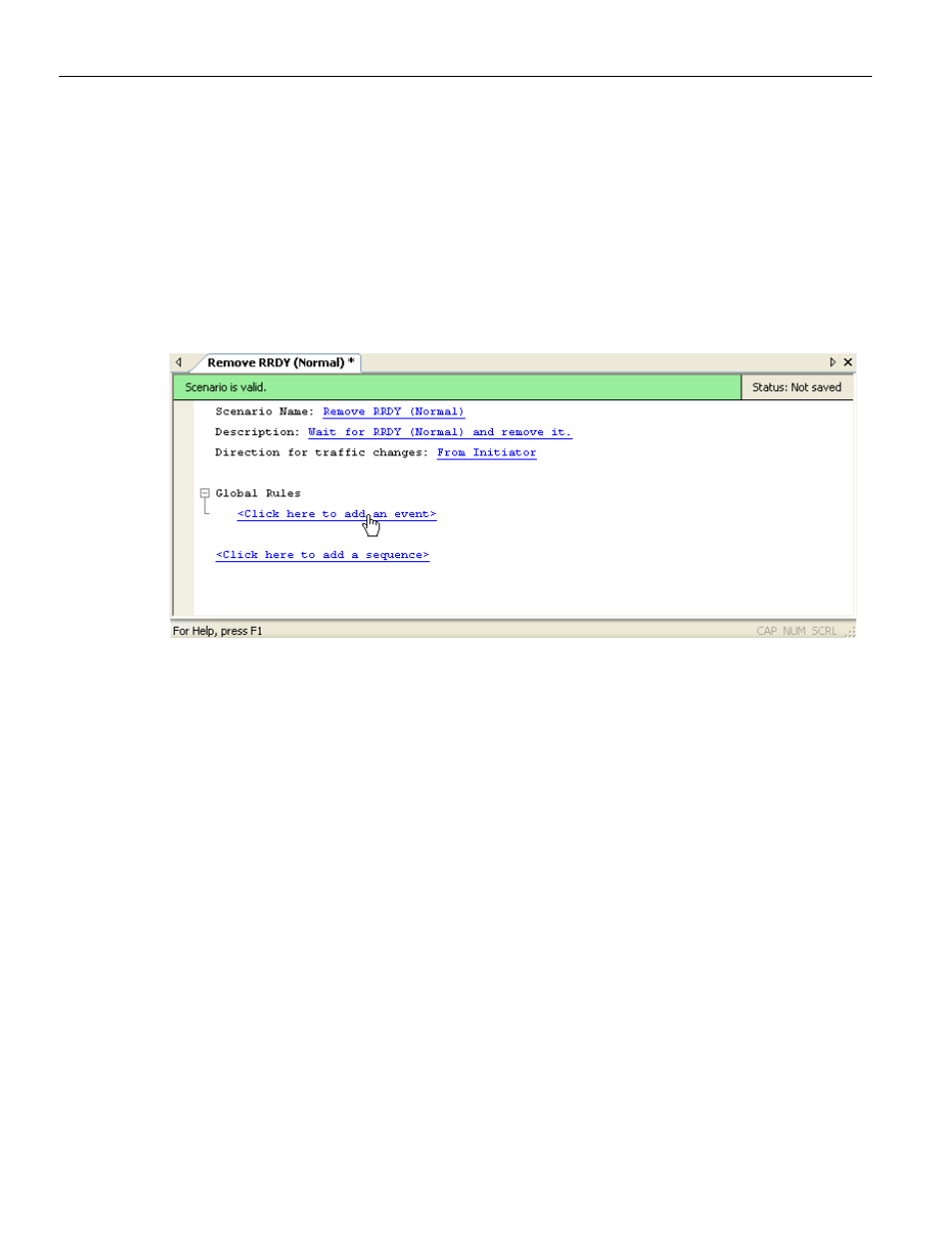

Figure 4.18: Example 1: Adding an Event
The Event Properties dialog box appears (see Figure 4.13 on page 243 ).
4. In the Type column of the Event Properties dialog, choose Primitive > SAS Primitive.
5. In the Type column in the middle of the dialog box, click Description if you want to
add a description of the event.
6. Click Direction to choose the direction of traffic to monitor for the selected event
(the default is From Initiator, which is what you want for this example).
