Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 85
Trigger Setup Teledyne LeCroy
FIS (Frame Information Structure) (SATA only)
Double‐click FIS to open the FIS Type selection dialog.

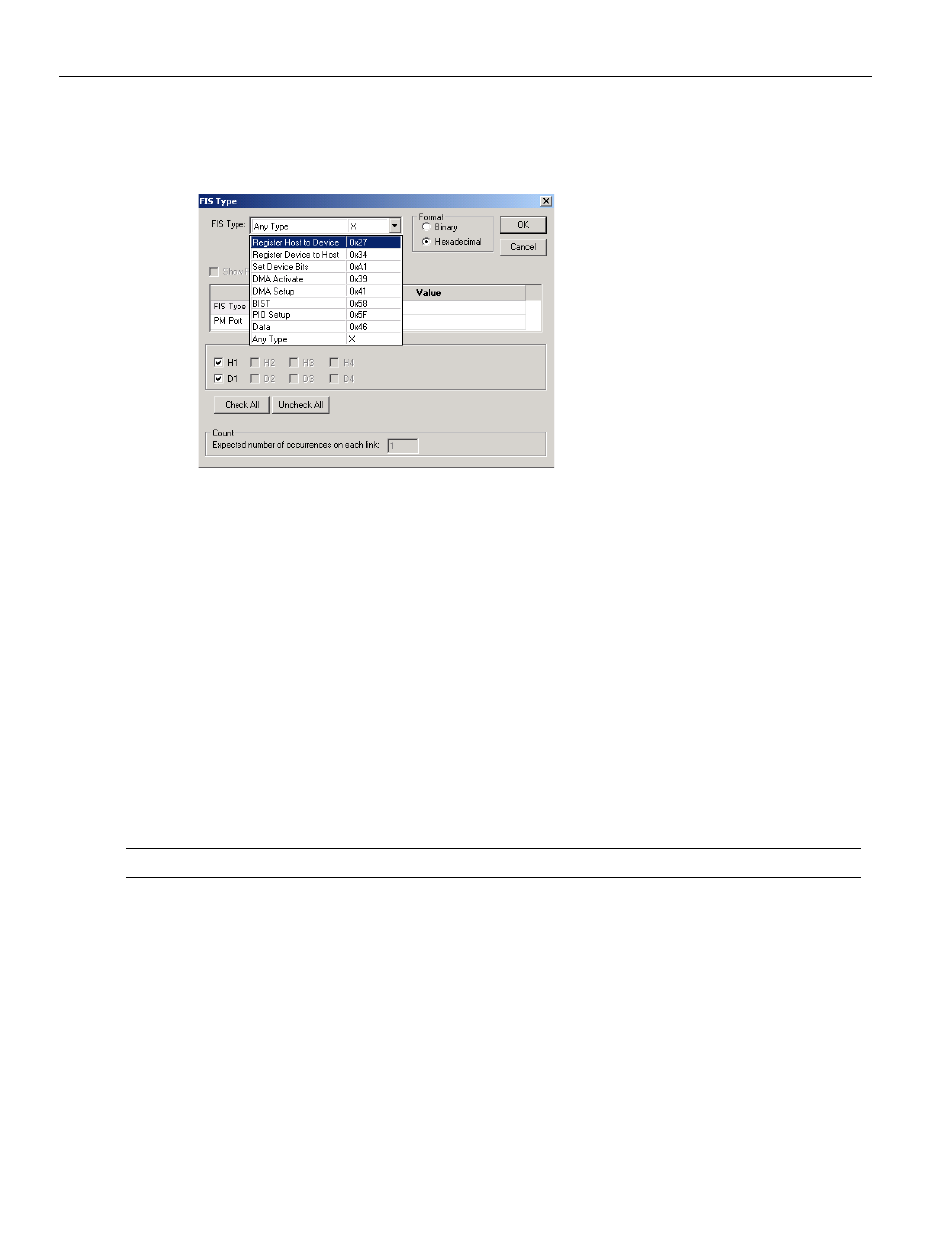

Figure 2.55: SATA: FIS Type Dialog
SAS vs. SATA: Not available in SAS.
Choose a FIS type on which to trigger, and click OK. Repeat for additional types.
Available FIS Types:
 Register Host to Device
 Register Device to Host
 Set Device Bit
 DMA Activate
 Any Type
 DMA Setup
 BIST
 PIO Setup
 Data
 Any Type
Note: You cannot trigger on a Vendor FIS.
