Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 135
Analysis Teledyne LeCroy
Lanes Report (SAS)
To display the Lanes Report, click the Lanes tab. The Lanes Report displays the report data
in columns with the following information:
 Port
 Open Accept: All, Custom, or a number
 Open Reject: All, Custom, or a number
 AIP Waiting on Con.
 Break
 SCSI Command: All, Custom, or a number
 ATA Command: All, Custom, or a number
 SMP Command: All, Custom, or a number
 Out Standing Command: All, Custom, or a number
 Transfer Bytes: All, Custom, or a number
 Link Utilization (time)
 Link Utilization %

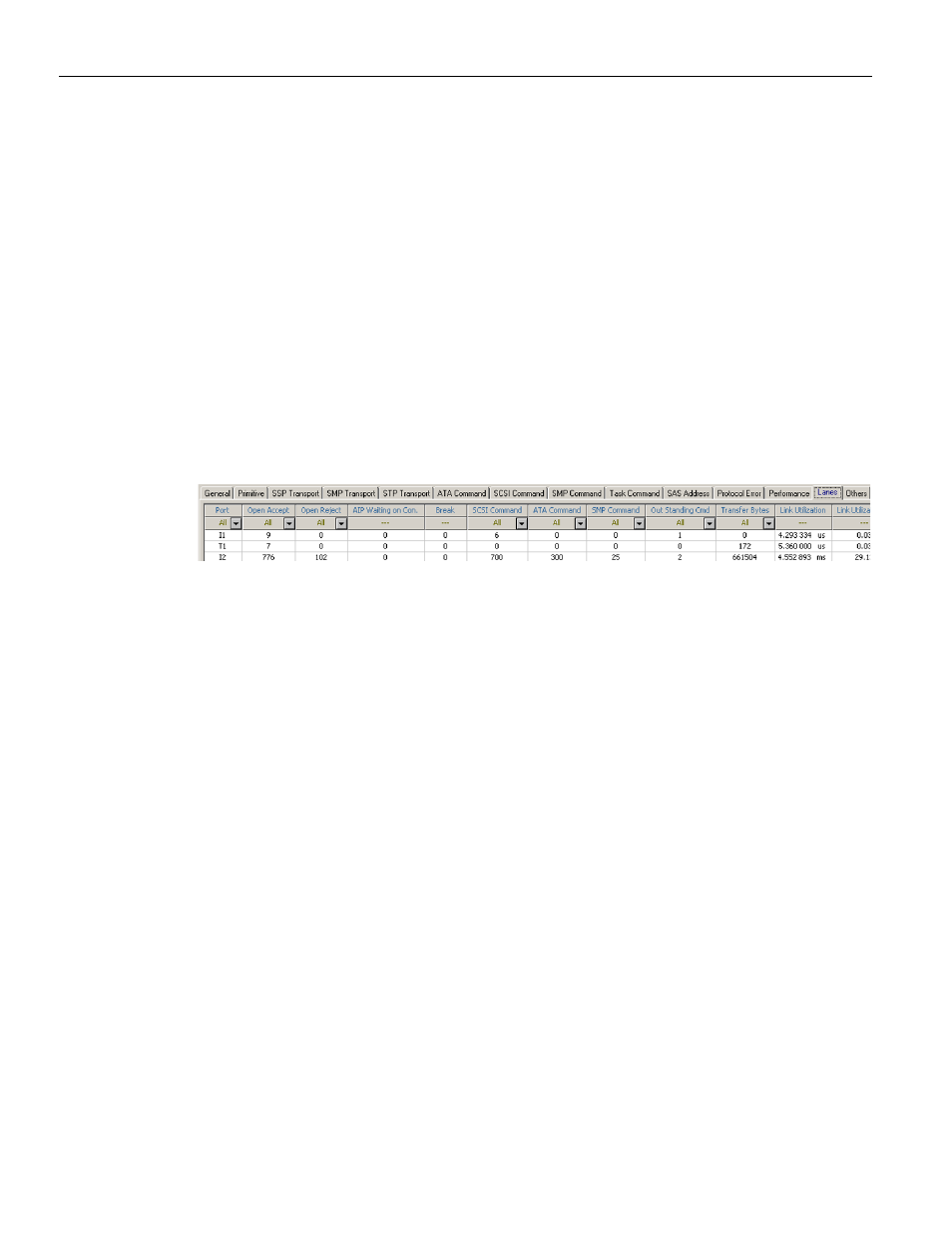

Figure 3.40: SAS Lanes Report
Read/Write Command Report (SAS)
To display the Read/Write Command Report, click the Read/Write Command tab. You can
enable or disable creation of this page under Preferences (see
“Preferences” on
page 200 ). The Read/Write Command report displays the report data in columns with the
following information (see Figure 3.41 on page 136 ):
 Source SAS Address
 Destination SAS Address
 Protocol Type
 OpCode/Command
 Tag
 LBA
 Sector Count
 Xfer Length
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Good
 Completion Time
 Performance
 Standard Deviation
 Count: All, Custom, or a number
