210 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual
To display the External Trig Setting dialog, select Setup > External Trig Setting.
External Trig Out Setting
The Analyzer can send a Low or High external signal anytime a trigger occurs. Select the
External Trig Out Setting: High Active, Low Active, or Toggle from High to Low or Low to
High once (3.3 V output).
Enter the External TrigOut pulse width.
Note: The External TrigOut pulse width field supports increments of 16 ns, starting from 64 ns and up
to 1024 ns.
External Trig In Setting
An external Low or High input signal can cause triggering. Select the
External Trig In Setting: High Active, Low Active, or Toggle from High to Low or Low to
High once (3.3 V output).
3.18 Update Device
The Update Sierra Device command allows you to update a Sierra M6‐1 Analyzer or CATC‐
Sync expansion card whose current version is incorrect.
1. Click Setup > Update Sierra Device to display the Device Setup dialog.

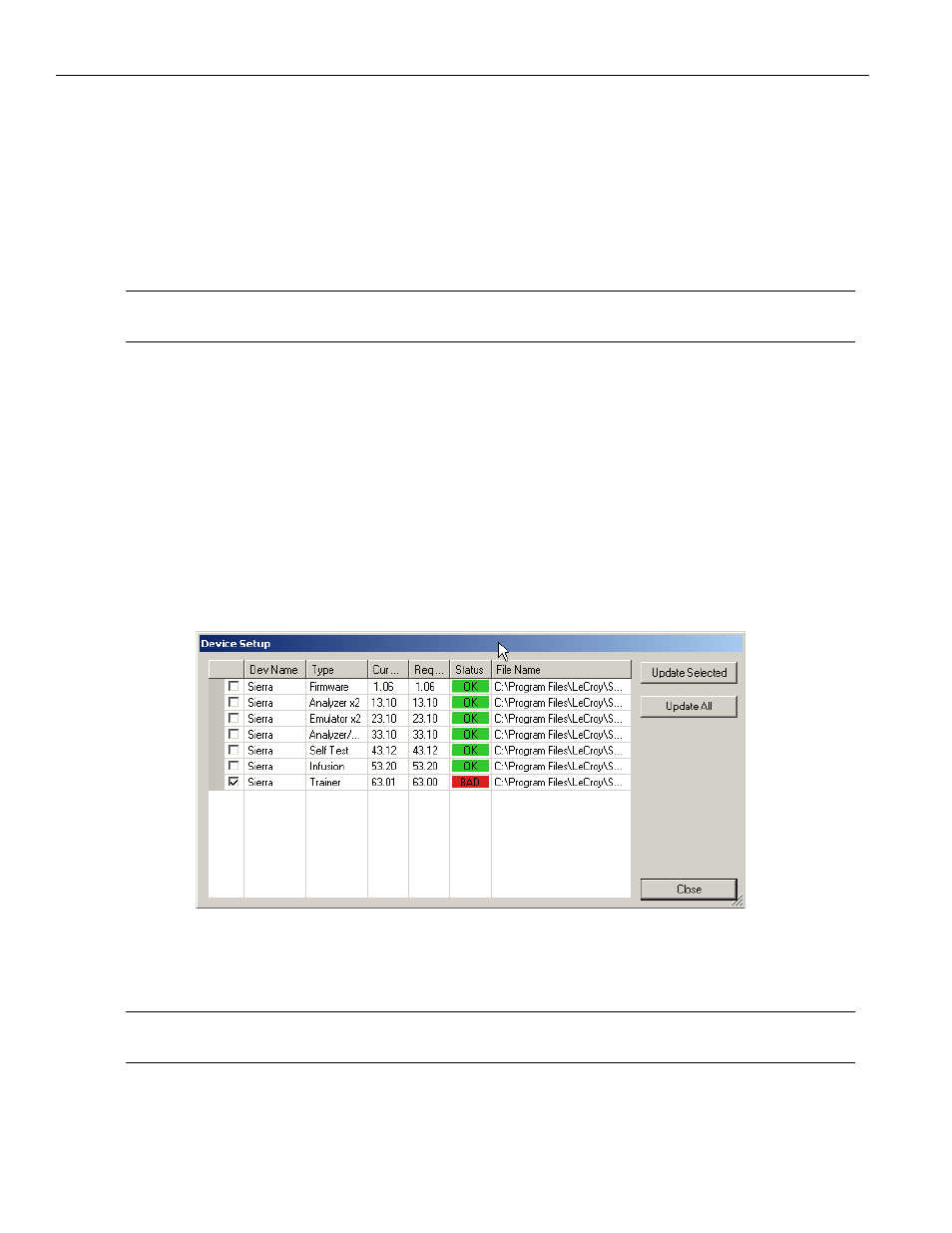

Figure 3.133: Device Setup Dialog with BAD Device Status
Devices whose version is correct have an OK status. 
A device whose version is incorrect has a BAD status.
Note: You can click the ellipses (...) at the end of a file path and name to display an Open dialog, in
which you can browse for files.
2. Click the checkbox to the left of a device with BAD status, then click Update Selected to
begin the process that will make the Analyzer version correct (see Figure 3.134 on
page 211 ).
