Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 23
Connecting via Ethernet Teledyne LeCroy
IP Settings...

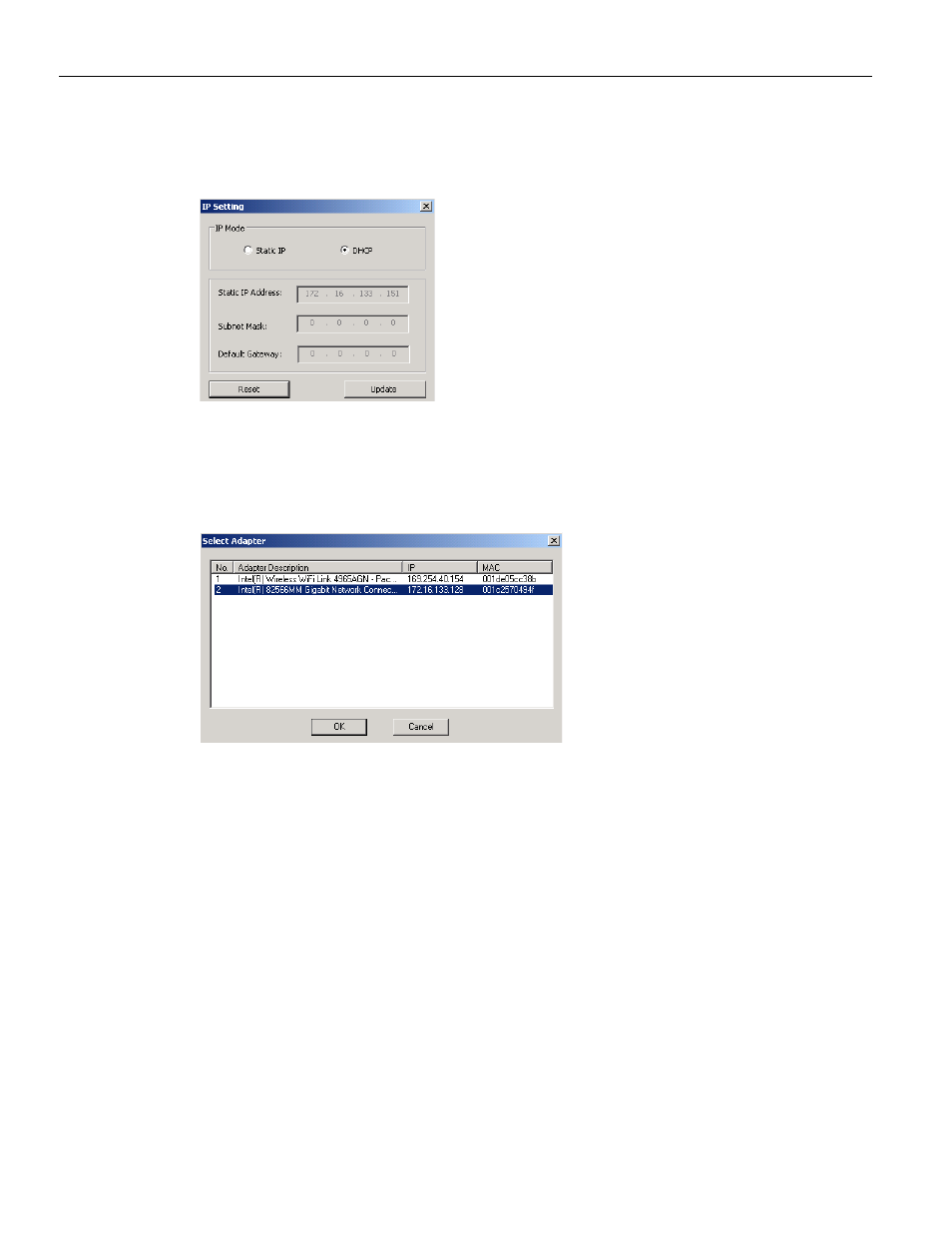

Click IP Setting to reset IP settings of a device. The following IP Setting dialog displays.
Figure 1.12: IP Setting Dialog
Networks...
Click Networks to select a network adapter. The following dialog displays.
Figure 1.13: Select Adapter Dialog
Refresh Device List
Click Refresh Device List to refresh the device list.
To connect to a device, select a device which is Ready to Connect and click the Connect
button on the right. The Connection Properties dialog is displayed (see
Figure 1.14 on
page 24 ).
