Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

Advanced Mode (User‐Defined)

Teledyne LeCroy

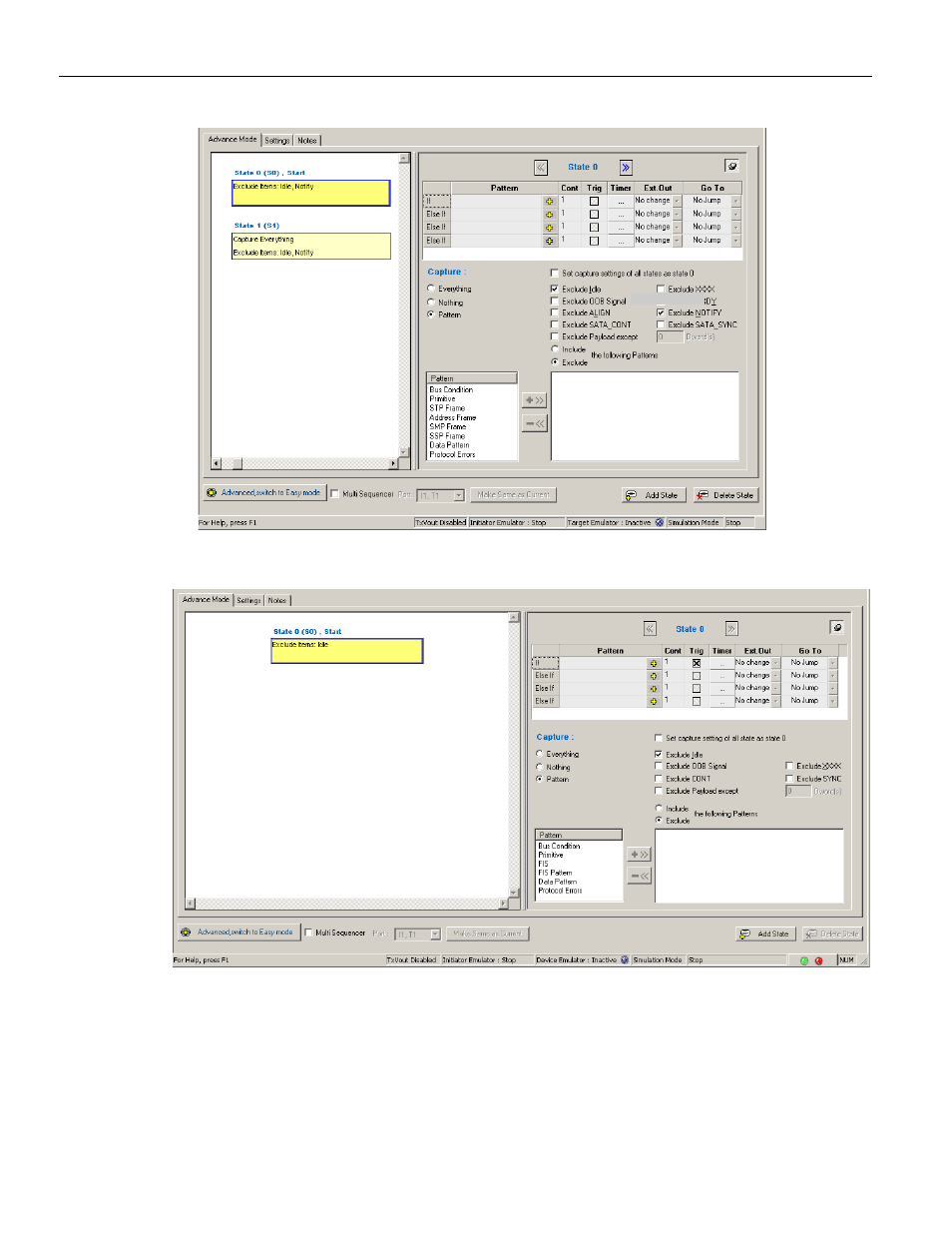

Figure 2.70: SAS: State Programming Dialog

Figure 2.71: SATA: State Programming Dialog

SAS vs. SATA: SATA Dialog removes Exclude ALIGN, Exclude RRDY, and Exclude NOTIFY.
SATA Dialog replaces Exclude SATA_CONT with Exclude CONT and Exclude SATA_SYNC
with Exclude SYNC.

SATA Dialog has patterns Bus Condition, Primitive, FIS, FIS Pattern, Data Pattern, and
Protocol Errors and does not have STP Frame, SMP Frame, STP Frame, or Address Frame.
