Teledyne LeCroy Toolbars
190 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual
3.8 Toolbars
3.8.1 Enabling Tool Bars

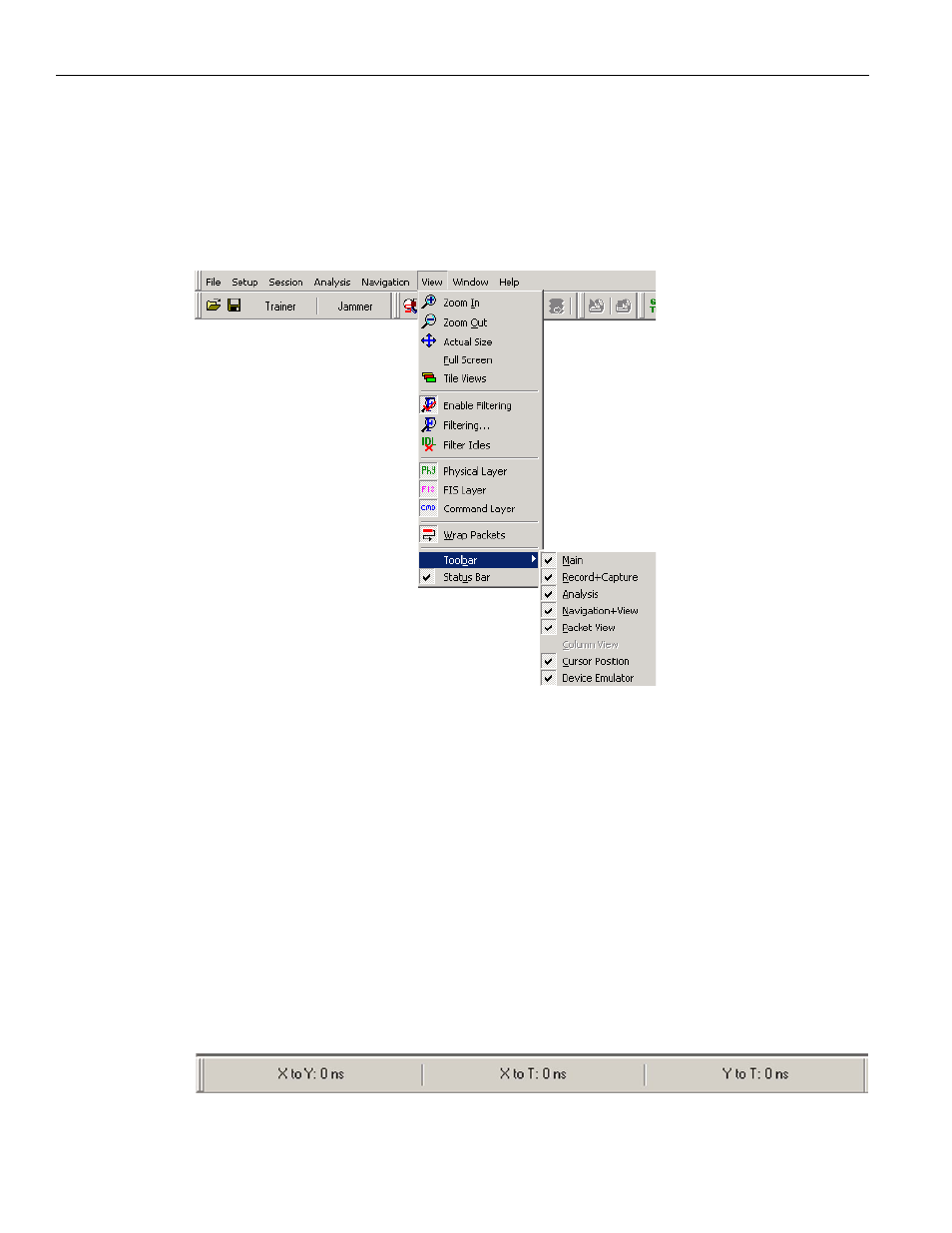

To customize the Viewer Display workspace, you can enable and reposition the available
toolbars. To display or hide toolbars, select View > Toolbar, then check or uncheck
toolbars (see following screen capture).
Toolbars are:
 Main
 Record + Capture
 Analysis
 Navigation + View
 Packet View
 Column View
 Cursor Position
 Device/Target Emulator
Once enabled, the toolbars can dock at the Viewer Display window or float on the
windows desktop.
3.8.2 Cursor Position Status Bar
To display the cursor position status bar, select Toolbar > Cursor Position.
Figure 3.116: Cursor Position Toolbar
See “Using the Cursors and Bookmarks” on page 191 .
