Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 31
Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars Teledyne LeCroy
 Power Tracker View: Displays power statistics
1.11.5 Navigation
The Navigation menu has the following options to navigate through the application (see
the following screen capture):

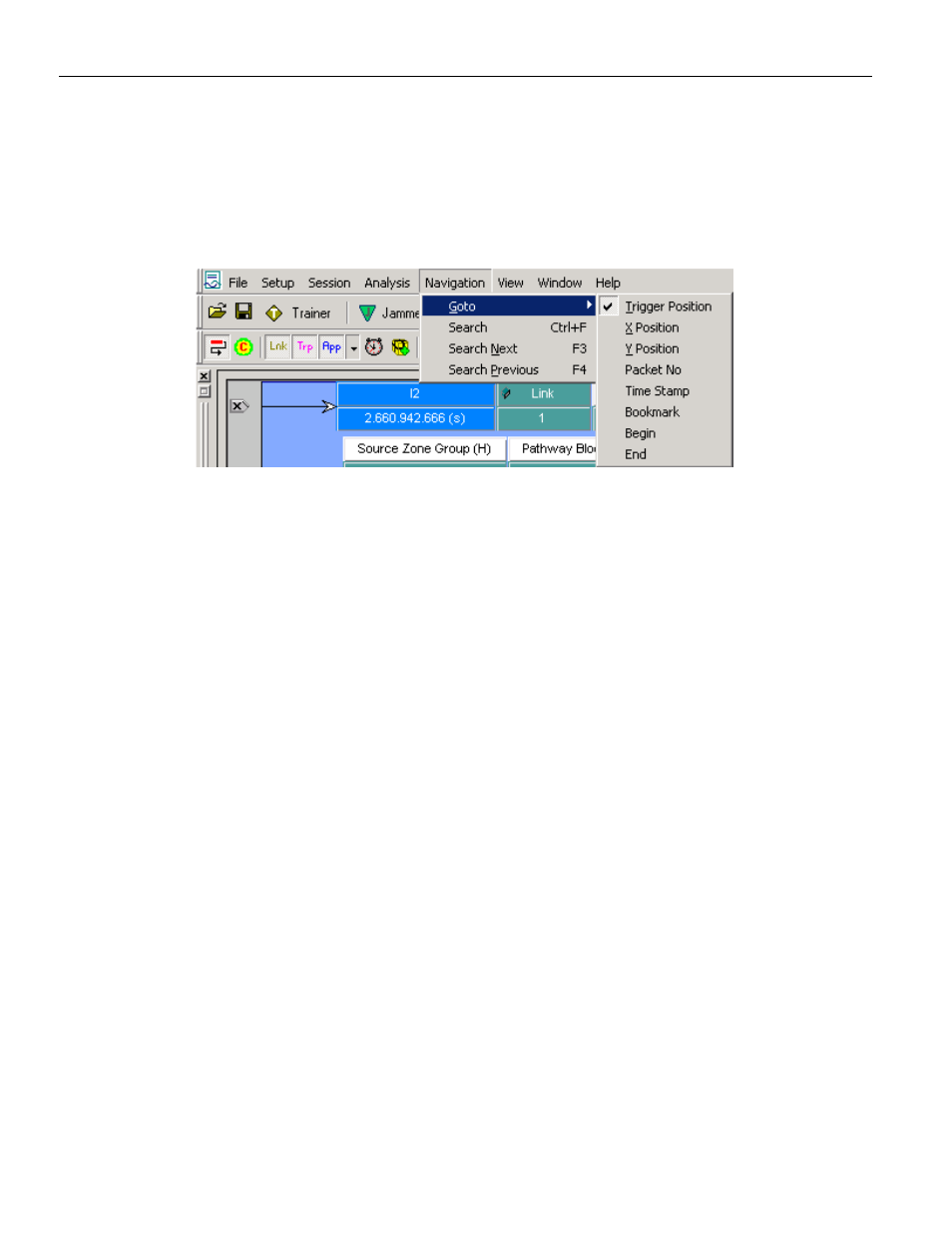

Figure 1.21: Navigation Menu Option
 Goto
 Trigger Position
 X Position
 Y Position
 Packet No
 Time Stamp
 Bookmark
 Begin
 End
 Search
 Search Next
 Search Previous
1.11.6 View
The View menu options allows the user to zoom in and out, enable/disable filtering and
toolbars among other actions. It has the following options (see
Figure 1.22 on page 32 ):
