Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 217
Setup Menu Teledyne LeCroy
Number of Runs Each Test
You can specify to run a test more than once.
Run All Tests Sequentially
This option runs all items in the Clock, Memory, Serdes, Crosspoint, Main FPGA,
Expansion, and LED/Buzzer tests in order. After you check this check box, the command
button becomes Start All Tests. You must click the Stop Test button on the LED/Buzzer tab
to stop the check.
3.21.3 Memory Check
To perform a SDRAM or Exerciser RAM memory check, select the Memory tab.

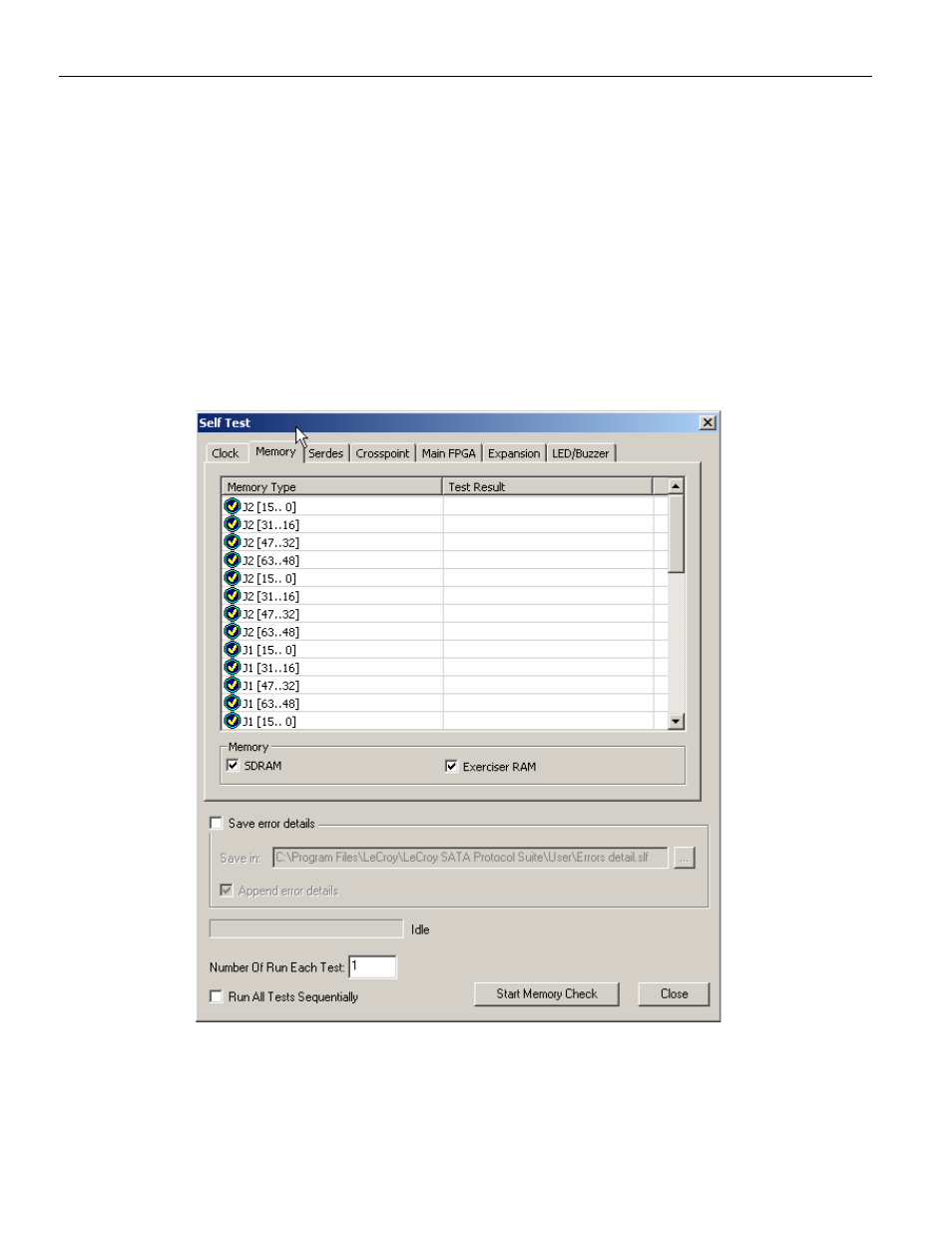

Figure 3.143: SAS: Self Test Dialog Memory Tab
Choose the SDRAM, Exerciser Data, or Exerciser Instruction to test and click the Start
Memory Check button. After a short time, the Test Result appears to the right of the
selected line.
