Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 185
Packet View Toolbar Teledyne LeCroy
Related Frames

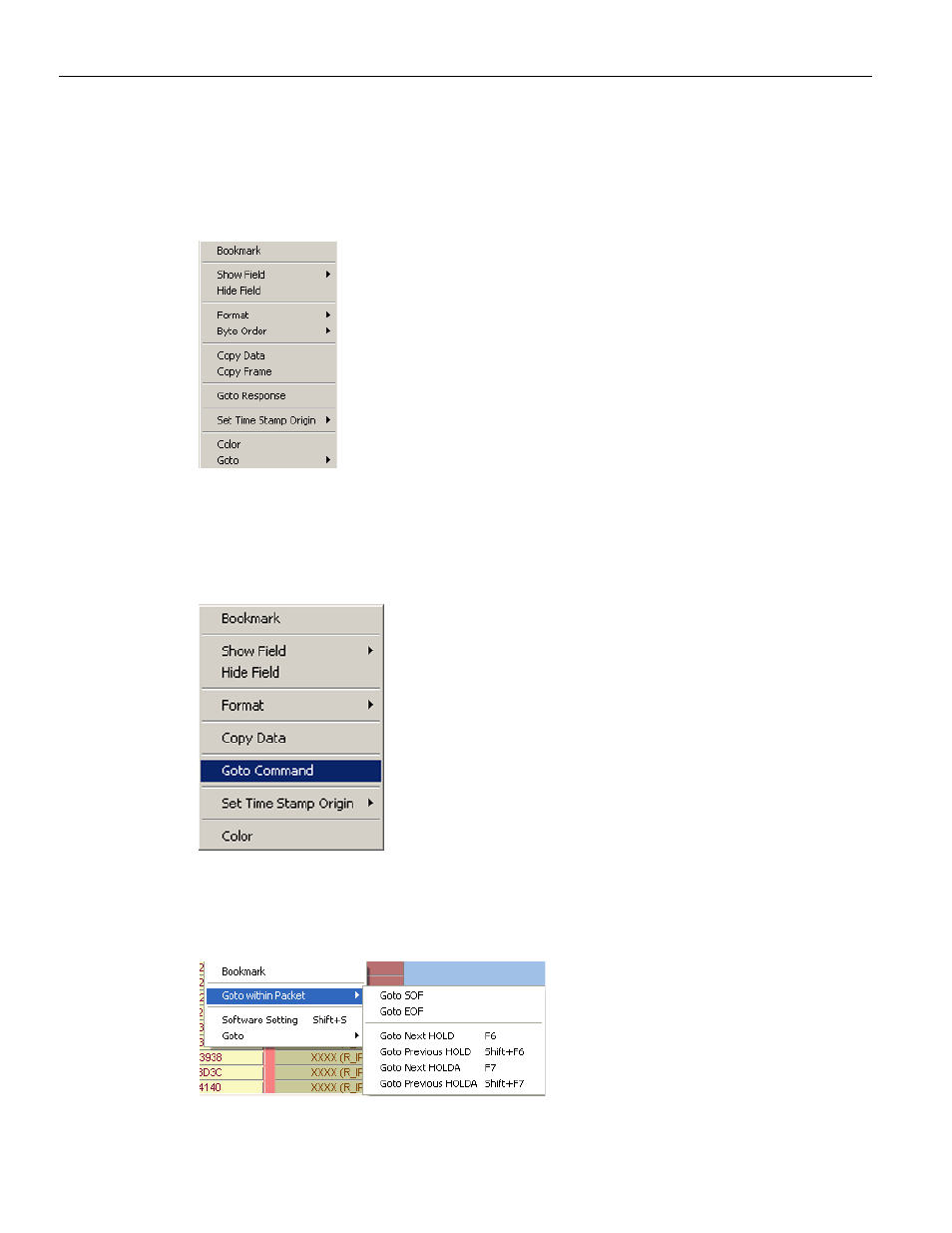

Right‐click a Command frame for an SSP frame, or Register Device to Host for an STP
frame, to open a short‐cut menu, then choose Goto Response to jump to the
corresponding Response frame in the viewer.
Figure 3.106: Goto Response
Similarly, right‐click a Response frame for an SSP Frame, or Register Device to Host for an
STP frame, to open a short‐cut menu, then choose Goto Command to jump to the
corresponding Command frame in the viewer.
Figure 3.107: Goto Command
In Column View, you can right‐click a DWORD inside a frame to display the
Goto Within Packet command. You can jump to an SOF, EOF, HOLD, or R_IP.
Figure 3.108: Goto Within Packet Command
