Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 251
Scenario Actions Teledyne LeCroy

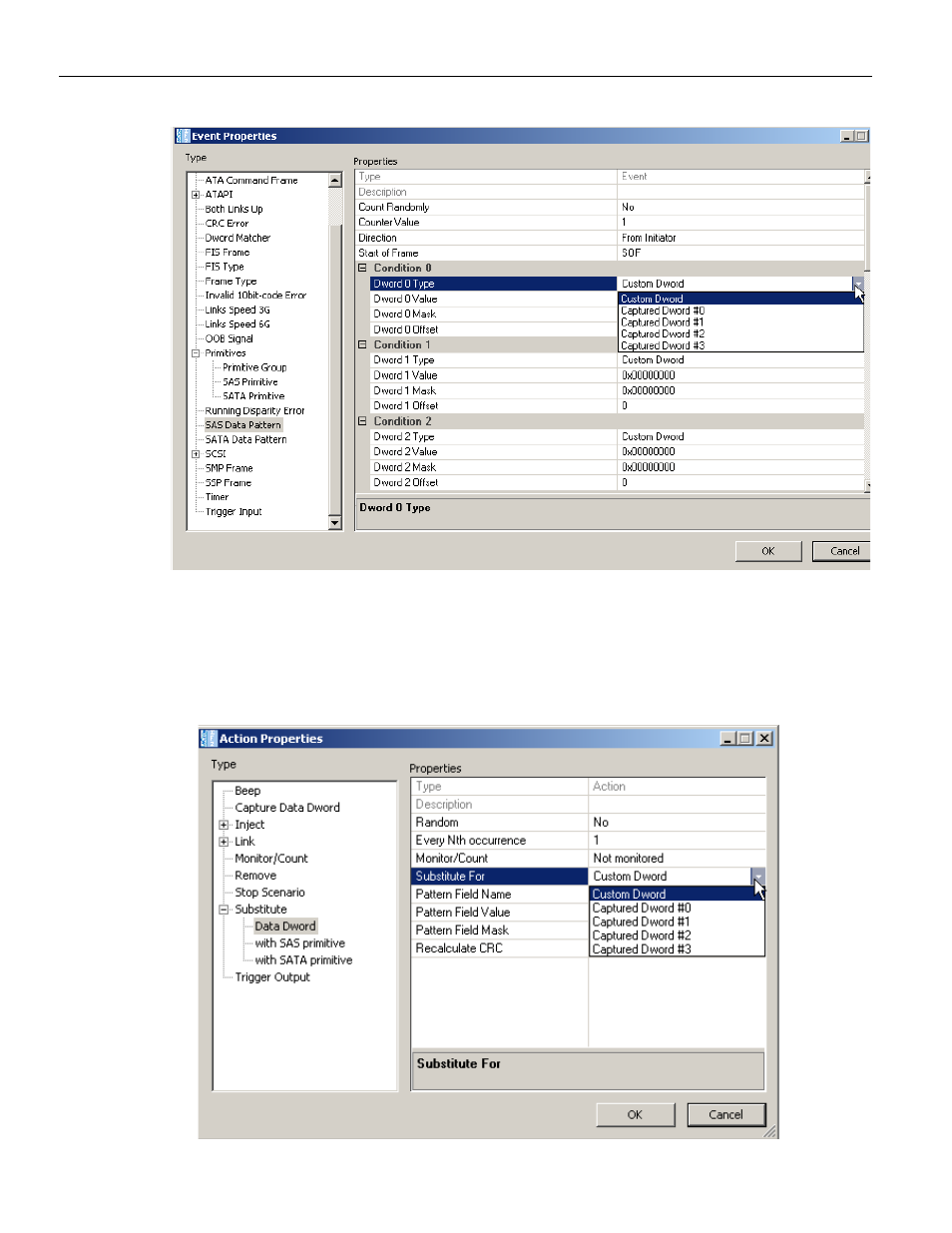

Figure 4.16: Using a Captured DWORD in a SAS Data Pattern
Captured data DWORDs may also be used in the Substitute Data DWORD test state
action. From the Action Properties screen, choose Substitute Data DWORD and then
select the Substitute for property. A drop‐down menu is provided (see below) that allows
the choice of a custom DWORD or any of the four captured DWORD registers.
Figure 4.17: Using a Captured Data DWORD in Substitute DWORD Test Action
