Teledyne LeCroy Creating a Data Block
108 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual
Choose Rename.

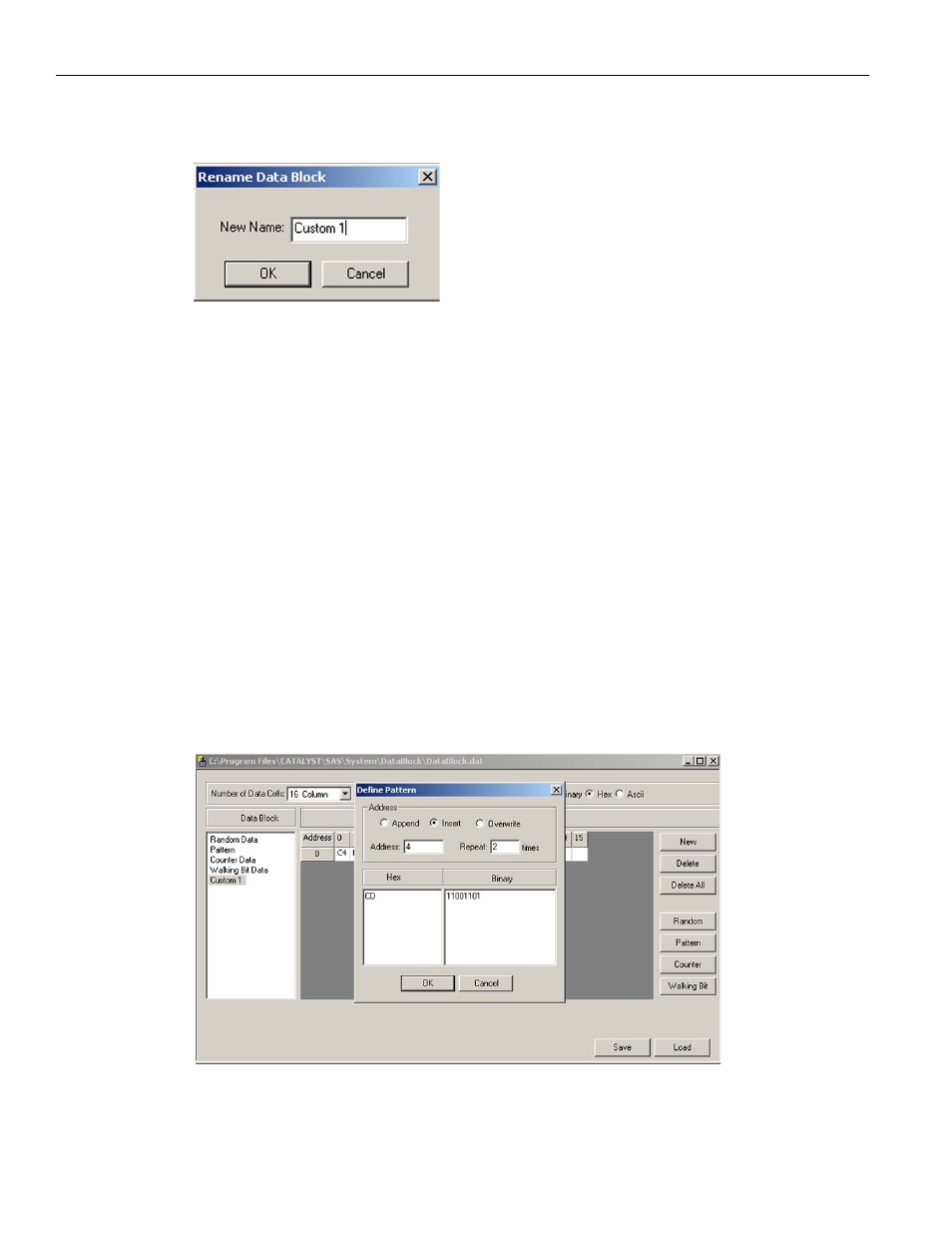

Figure 2.83: Rename Data Block
Enter a descriptive name in the New Name edit box and click OK.
2.18.2 Editing a Data Block
You can enter data in the defined cell structure by these methods:
 Define your own pattern
 Set a counter
 Choose a Random Pattern
 Choose a Walking Bit Pattern
2.18.3 Define Your Own Pattern
To define a pattern:
1. Click Pattern to open the Define Pattern dialog box as shown in Figure 2.84:
2. Enter a data pattern in the Data Pattern edit box.
3. Choose the number of times to repeat that pattern, and click OK.
Figure 2.84: Define Your Own Data Pattern
