Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual 73
Trigger Setup Teledyne LeCroy
Symbol
Double‐click Symbol in the Pattern window to open the Symbol dialog.

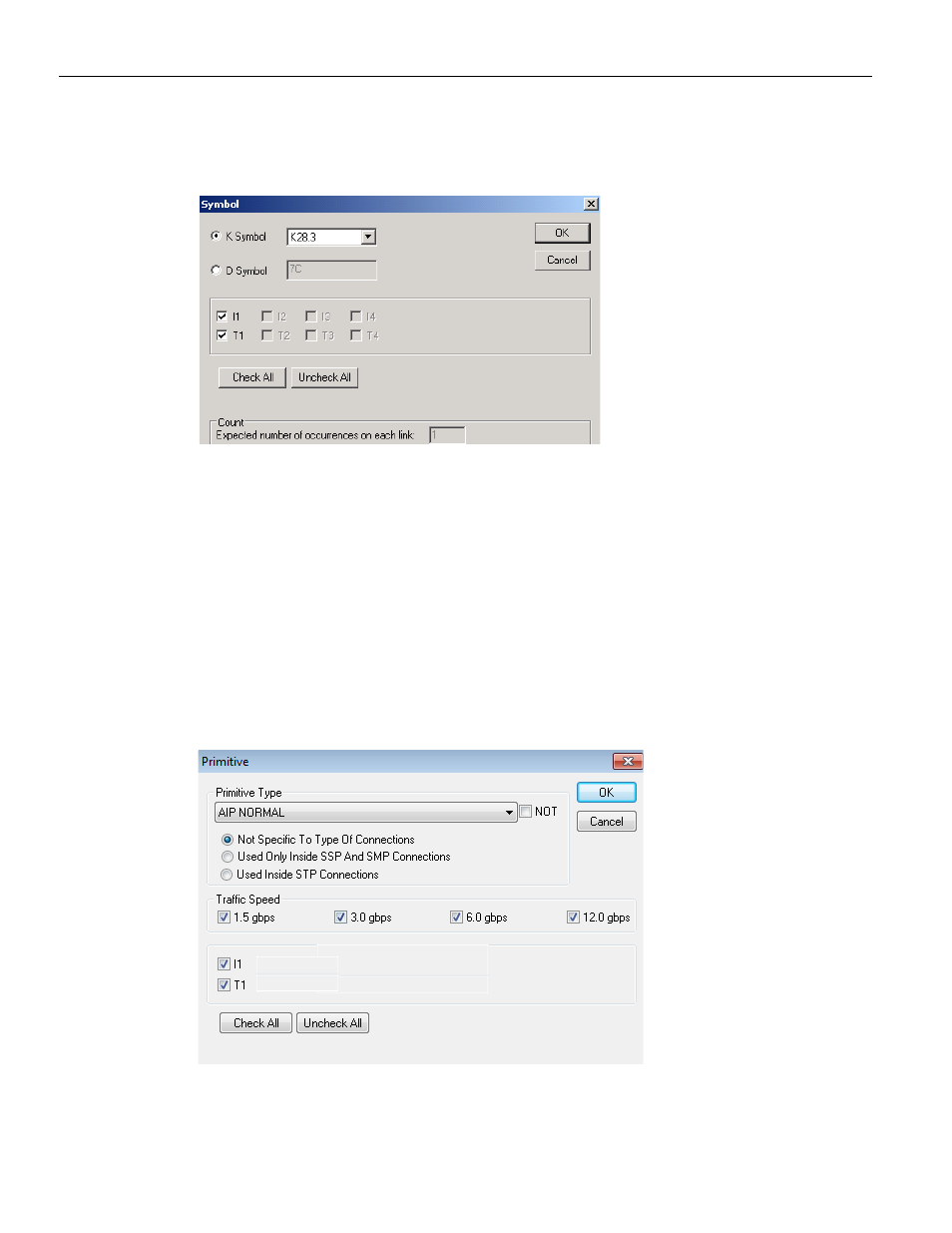

Figure 2.41: Symbol Dialog
Choose a symbol type by checking either the K Symbol or D Symbol option, then click the
down arrow in the Symbol dropdown list, choose a symbol to trigger on, and click OK.
Note that the D Symbol choice does not have a down arrow.
 To choose a D symbol, click the D symbol option button and enter a Hex value.
Primitive
Double‐click Primitive in the Pattern window to open the Primitive dialog. The radio
buttons select a different subset of primitives from an approximate total of 88 that are
available. This makes it easier to find the right primitive. The Count field is enabled when
the Define Sequential Trigger Mode check‐box is selected (see
Figure 2.36 on page 69 ).
Figure 2.42: SAS: Primitive Dialog
SAS vs. SATA: SATA Dialog has no radio buttons and has different drop‐down options.
