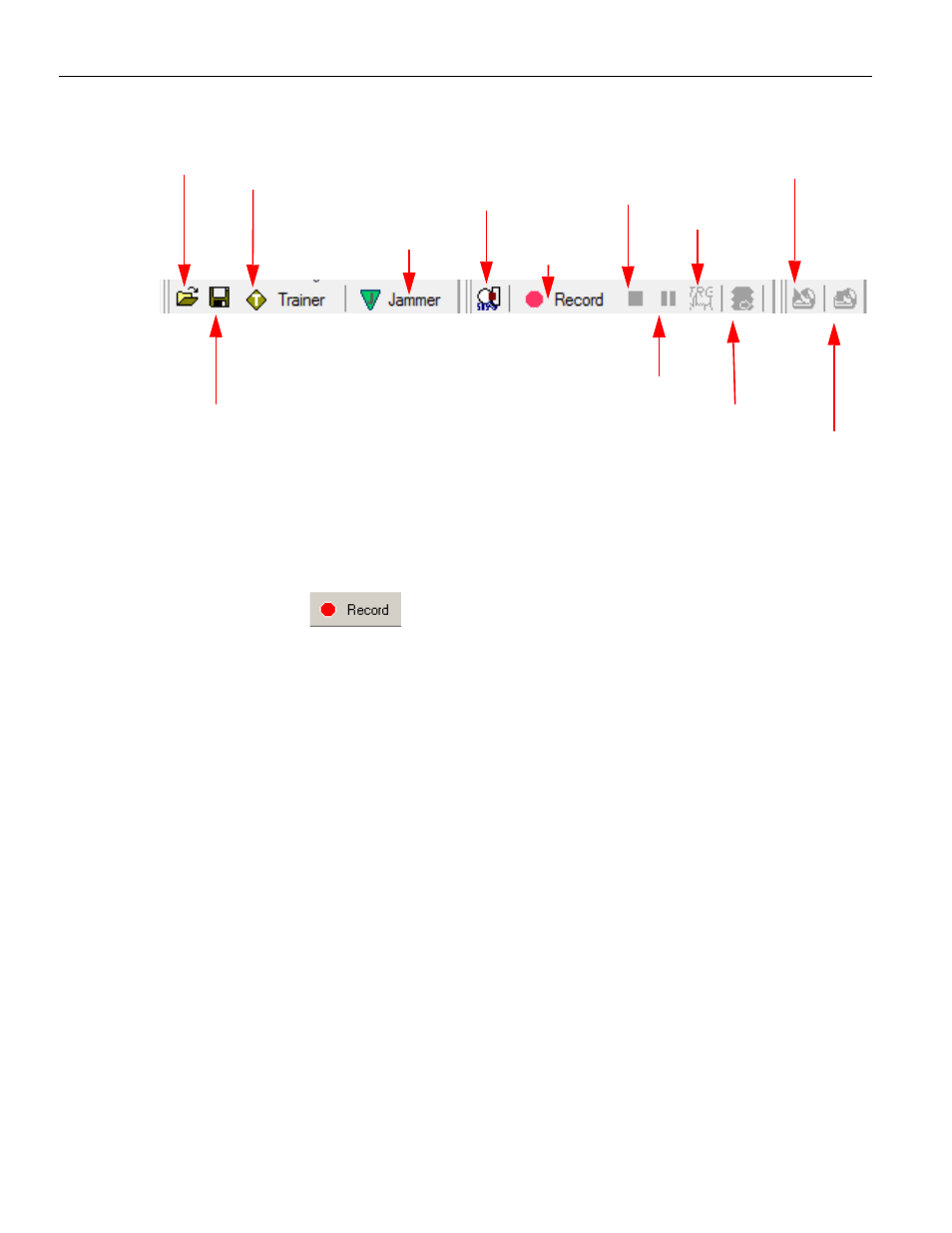

Figure 2.4: SATA: Software Menus and Toolbar
2.6 Start Recording
To get an immediate overview of the bus traffic to and from your Analyzer:
1. Click the Record button.
2. The analyzer begins filling the defined memory buffer with traffic captured from the
bus. After the traffic fills the memory buffer, the traffic is uploaded to the viewer and
the Packet View display opens. Packet View is the default display. However, more
views are available by selecting View on the menu bar and choosing the desired
View.
Open Project File
Launch Trainer
Launch Jammer
Abort Capturing Without Saving Sample File
Start Target Emulator
Find DUT
Stop Recording
Upload Manager
Start Recording
Stop Target Emulator
Save
Manual Trigger
