Teledyne LeCroy Connecting via Ethernet
24 Sierra M6‐1 SAS/SATA Protocol Analyzer User Manual

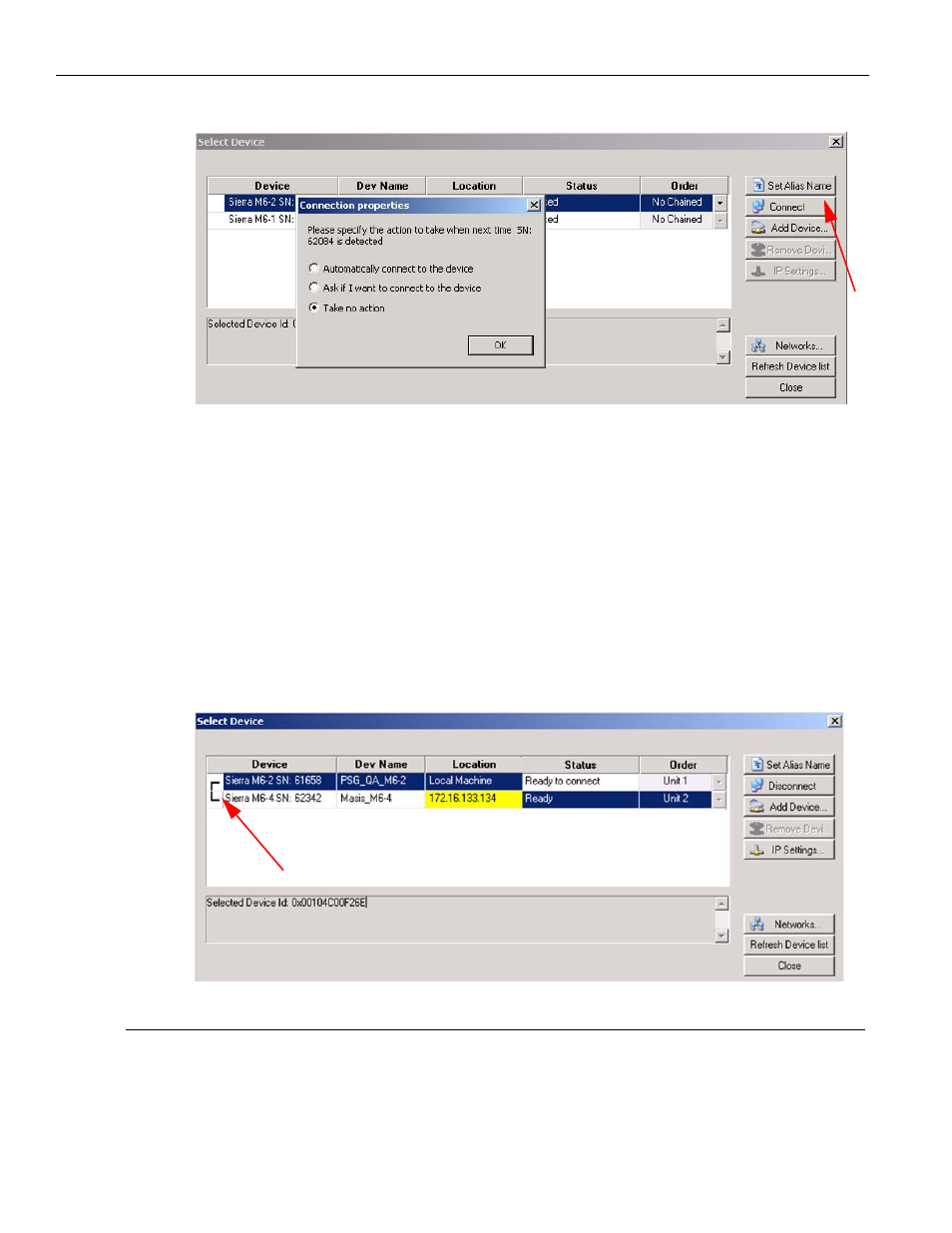

Figure 1.14: Connection Properties Dialog
Specify one of the actions from the following:
 Automatically connect to the device
 Ask if I want to connect to the device
 Take no action
If ‘Automatically connect to the device’ is selected, the next time the application opens
the device will be automatically connected.
In the Select Device dialog chained or cascaded units are displayed in the Device column
with a
[ (square bracket) icon. The sequence of the units is displayed in the Order
column. See the following screen capture.
Figure 1.15: Select Device Dialog Displaying Unit 1 and Unit 2 Chained
Note: When using STX Sync cards, you need to manually specify the order of the chained units. To
match your unit sequence to the address for each unit in the Select Device dialog, click the
pull down tab under the Order heading (on the right side) and select unit numbers: 1 for
