HomeSafe User’s Guide
20-4 Menu 3 LAN Setup
Table 20-2 Menu 3.2: LAN TCP/IP Setup Fields
FIELD DESCRIPTION EXAMPLE
Edit IP Alias The HomeSafe supports three logical LAN interfaces via its single
physical Ethernet interface with the HomeSafe itself as the
gateway for each LAN network. Press [SPACE BAR] to select
Yes and then press [ENTER] to display menu 3.2.1 No
When you have completed this menu, press [ENTER] at the prompt [Press ENTER to Confirm…] to save
your configuration, or press [ESC] at any time to cancel.
20.3.1 IP Alias Setup
IP alias allows you to partition a physical network into different logical networks over the same
Ethernet interface. The HomeSafe supports three logical LAN interfaces via its single physical
Ethernet interface with the HomeSafe itself as the gateway for each LAN network.

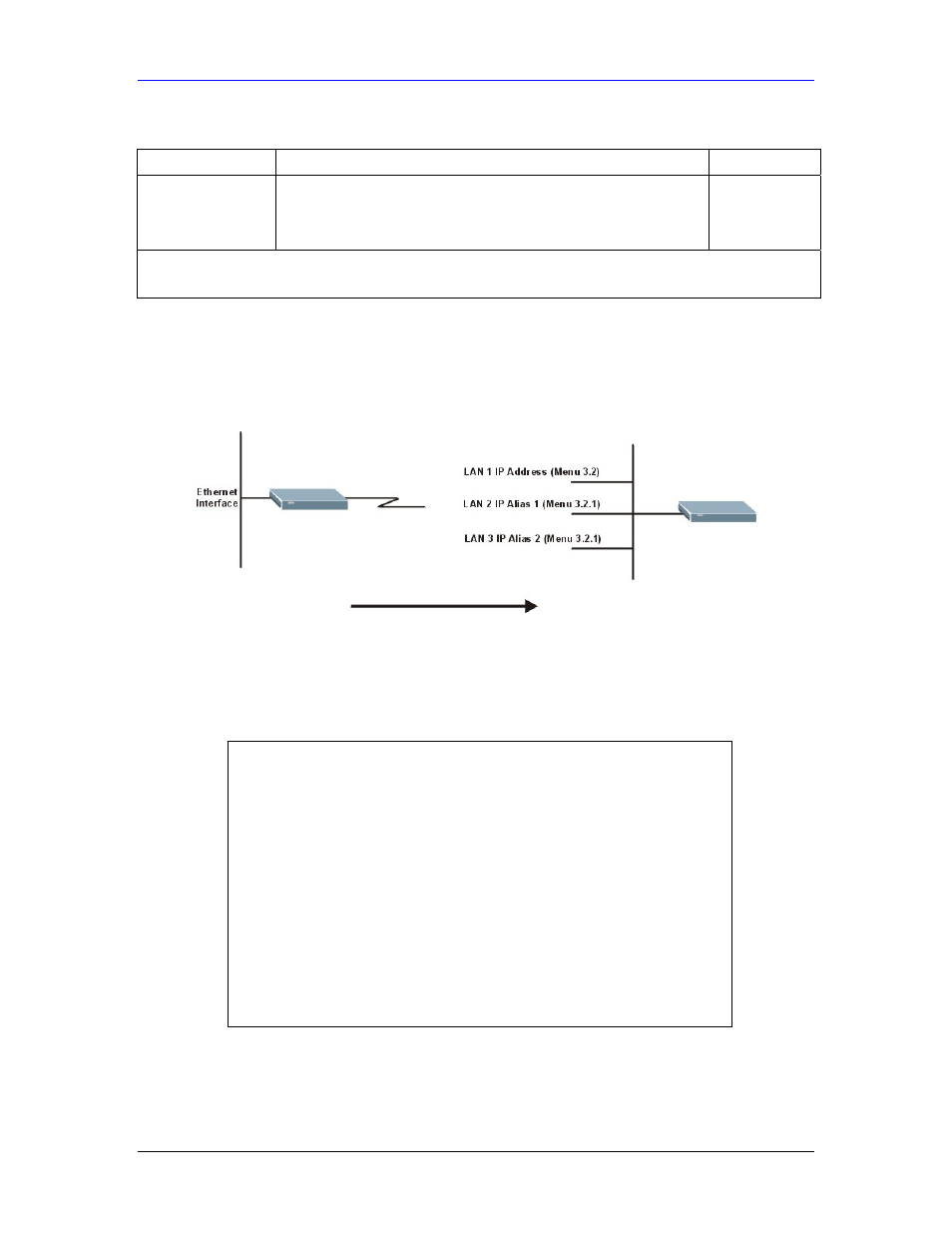

Figure 20-4 Physical Network & Partitioned Logical Networks
You must use menu 3.2 to configure the first network. Move the cursor to the Edit IP Alias field, press
[SPACE BAR] to choose Yes and press [ENTER] to configure the second and third network.
Press [ENTER] to open Menu 3.2.1 - IP Alias Setup, as shown next.
Figure 20-5 Menu 3.2.1: IP Alias Setup
Use the instructions in the following table to configure IP alias parameters.
Menu 3.2.1 - IP Alias Setup
IP Alias 1= Yes
IP Address=
IP Subnet Mask= 0.0.0.0
RIP Direction= None
Version= RIP-1
Incoming protocol filters=
Outgoing protocol filters=
IP Alias 2= No
IP Address= N/A
IP Subnet Mask= N/A
RIP Direction= N/A
Version= N/A
Incoming protocol filters= N/A
Outgoing protocol filters= N/A
Enter here to CONFIRM or ESC to CANCEL:
