16-2 Maintenance
Table 16-1 Maintenance : Status
LABEL DESCRIPTION
IP Subnet Mask This is the WAN port subnet mask.
DHCP This is the WAN port DHCP role - Client or None.
LAN Port
IP Address This is the LAN port IP address.
IP Subnet Mask This is the LAN port subnet mask.
DHCP This is the LAN port DHCP role - Server, Relay or None.
Show Statistics Click Show Statistics to display the real-time system statistics. Refer to Section
16.2.1 for more information.
16.2.1 System Statistics
Read-only information here includes port status and packet specific statistics. Also provided are
"system up time" and "poll interval(s)". The Poll Interval(s) field is configurable.

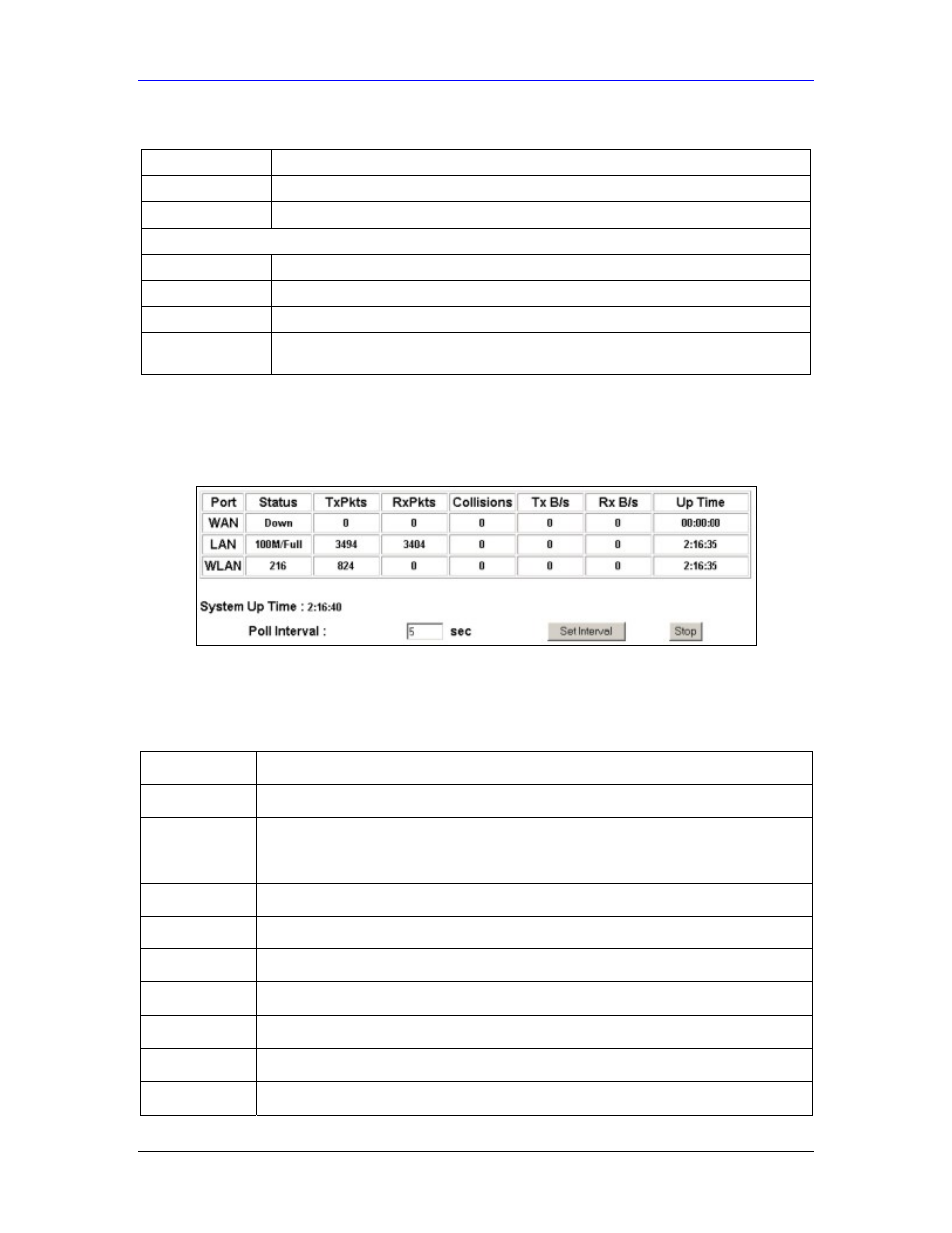

Figure 16-2 Maintenance : System Statistics
The following table describes the labels in this screen.
Table 16-2 Maintenance : System Statistics
LABEL DESCRIPTION
Port This is the WAN, LAN or WLAN port.
Status This displays the port speed and duplex setting if you're using Ethernet encapsulation
and down (line is down), idle (line (ppp) idle), dial (starting to trigger a call) and drop
(dropping a call) if you're using PPPoE encapsulation.
TxPkts This is the number of transmitted packets on this port.
RxPkts This is the number of received packets on this port.
Collisions This is the number of collisions on this port.
Tx B/s This displays the transmission speed in bytes per second on this port.
Rx B/s This displays the reception speed in bytes per second on this port.
Up Time This is the total amount of time the line has been up.
System Up Time This is the total time the HomeSafe has been on.
