Chapter 6 Home and Port Statistics Screens
IES-708-22A User’s Guide
73

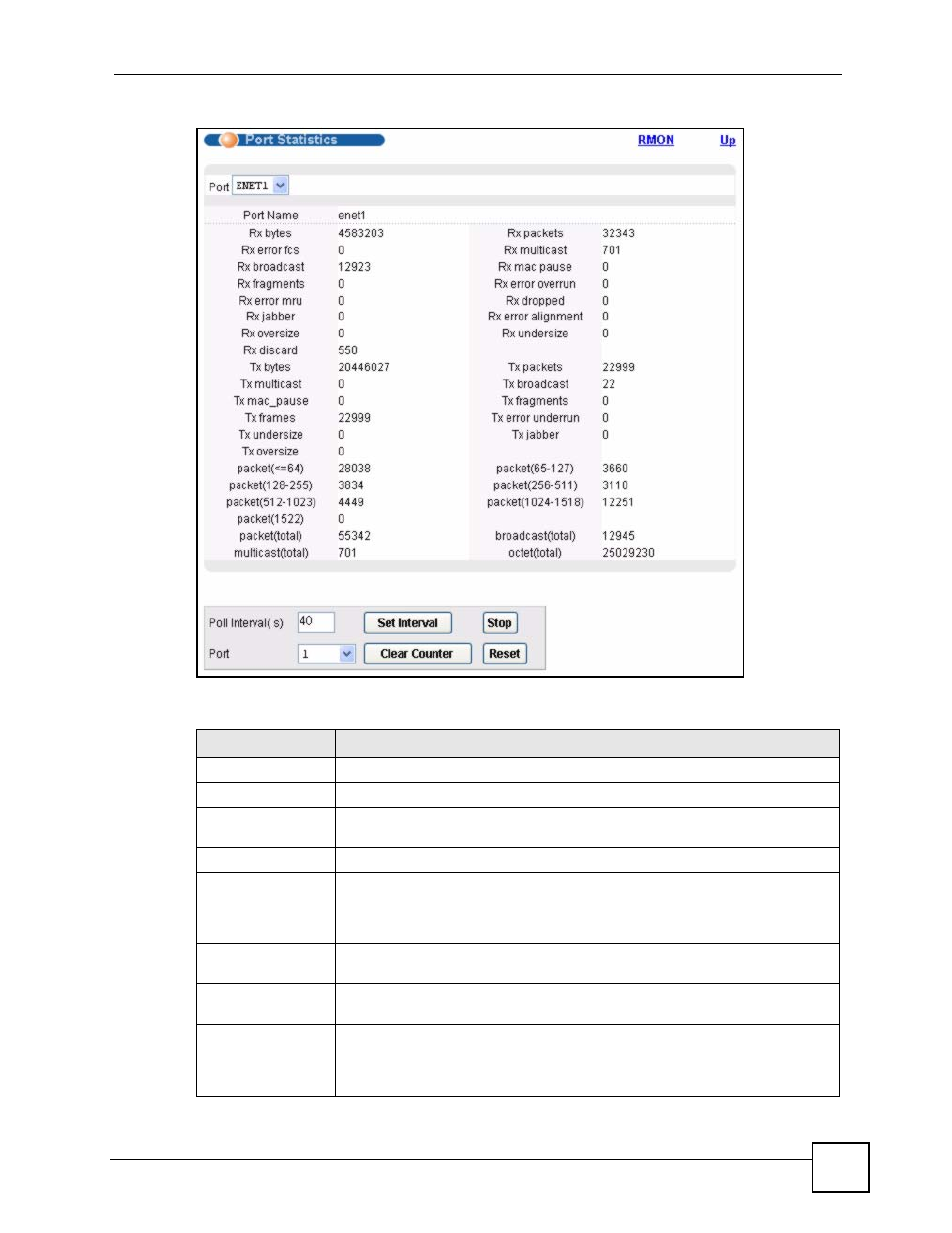

Figure 28 Home > Port Statistics (Ethernet)
The following table describes the labels in this screen.
Table 6 Home > Port Statistics (Ethernet)
LABEL DESCRIPTION
RMON Click this to open the RMON Statistics screen.
Up Click this to go back to the Home screen.
Port Use this drop-down list box to select a port for which you wish to view statistics.
This field identifies the port described in this screen.
Port Name This field displays the name that you have configured for the port.
Rx bytes This field shows the number of octets of Ethernet frames received that are from
0 to 1518 octets in size, counting the ones in bad packets, not counting framing
bits but counting FCS (Frame Check Sequence) octets. An octet is an 8-bit
binary digit (byte).
Rx packets This field shows the number of packets received on this port (including
multicast, unicast, broadcast and bad packets).
Rx error fcs This field shows the number of frames received with an integral length of 64 to
1518 octets and containing a Frame Check Sequence error.
Rx multicast This field shows the number of good multicast frames received of 64 to 1518
octets in length (for non VLAN) or 1522 octets (for VLAN), not including
Broadcast frames. Frames with range or length errors are also not taken into
account.
