Chapter 32 ACL
IES-708-22A User’s Guide
214

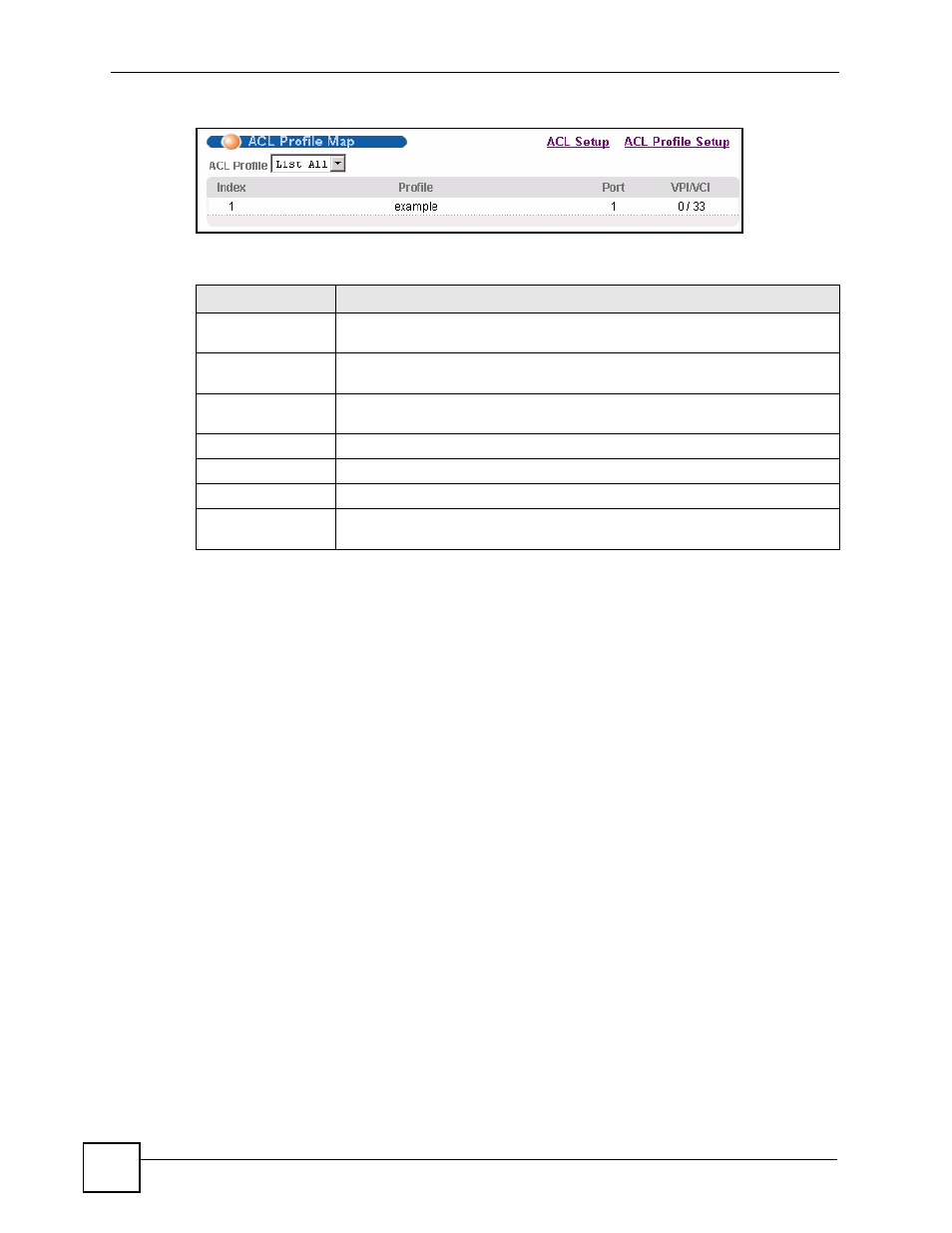

Figure 108 Advanced Application > ACL > ACL Profile Map
The following table describes the labels in this screen.
Table 71 Advanced Application > ACL > ACL Profile Map
LABEL DESCRIPTION
ACL Setup Click ACL Setup to open the screen where you can assign ACL profiles to
PVCs (see Section 32.2 on page 210 ).
ACL Profile Setup Click ACL Profile Setup to open the screen where you can set up ACL profiles
(see Section 32.3 on page 212 ).
ACL Profile Select the ACL profile(s) for which you want to see which PVCs are assigned to
it.
Index This field displays the number of an entry.
Profile This field shows the ACL profile assigned to this PVC.
Port This field displays the DSL port number on which the PVC is configured.
VPI/VCI This field displays the Virtual Path Identifier (VPI) and Virtual Circuit Identifier
(VCI). The VPI and VCI identify a channel on this port.
