Chapter 23 Spanning Tree Protocol
IES-708-22A User’s Guide
171
See the IEEE 802.1w standard for more information on RSTP. See the IEEE 802.1D standard
for more information on STP.
23.2 Spanning Tree Protocol Status Screen
To open this screen, click Advanced Application > Spanning Tree Protocol.

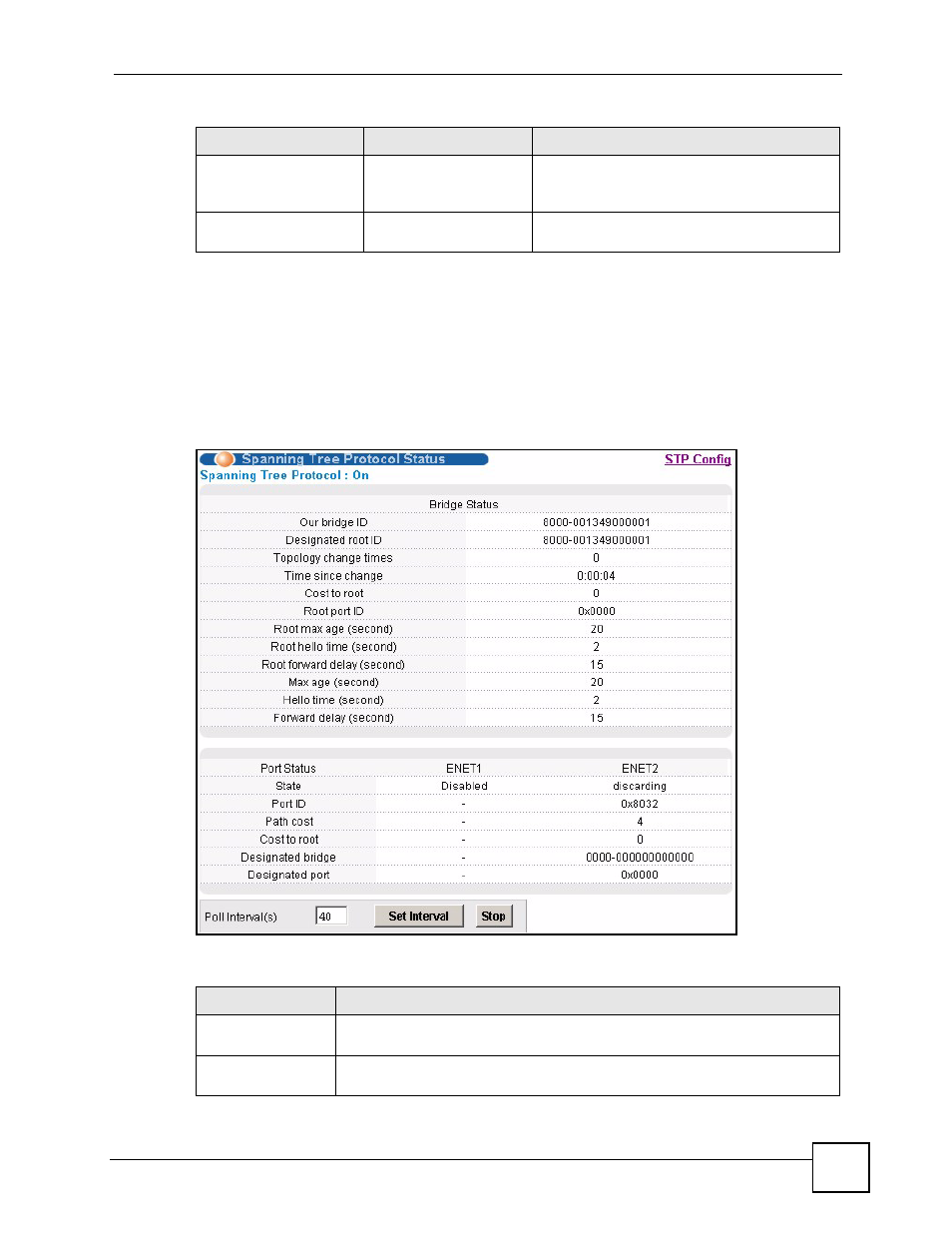

Figure 81 Advanced Application > Spanning Tree Protocol
The following table describes the labels in this screen.
Learning Learning All BPDUs are received and processed.
Information frames are submitted to the learning
process but not forwarded.
Forwarding Forwarding All BPDUs are received and processed. All
information frames are received and forwarded.
Table 50 RSTP Port States (continued)
RSTP PORT STATE STP PORT STATE DESCRIPTION
Table 51 Advanced Application > Spanning Tree Protocol
LABEL DESCRIPTION
STP Config Click STP Config to modify the IES-708-22A’s STP settings (see Section 23.3
on page 173 ).
Spanning Tree
Protocol
This field displays On if STP is activated. Otherwise, it displays Off.
