Chapter 16 G.bond
IES-708-22A User’s Guide
137
16.2.1 G.bond Status Screen
Use this screen to look at the status of each port in each bond.
To open this screen, click Basic Setting > G.bond > G.bond Status.

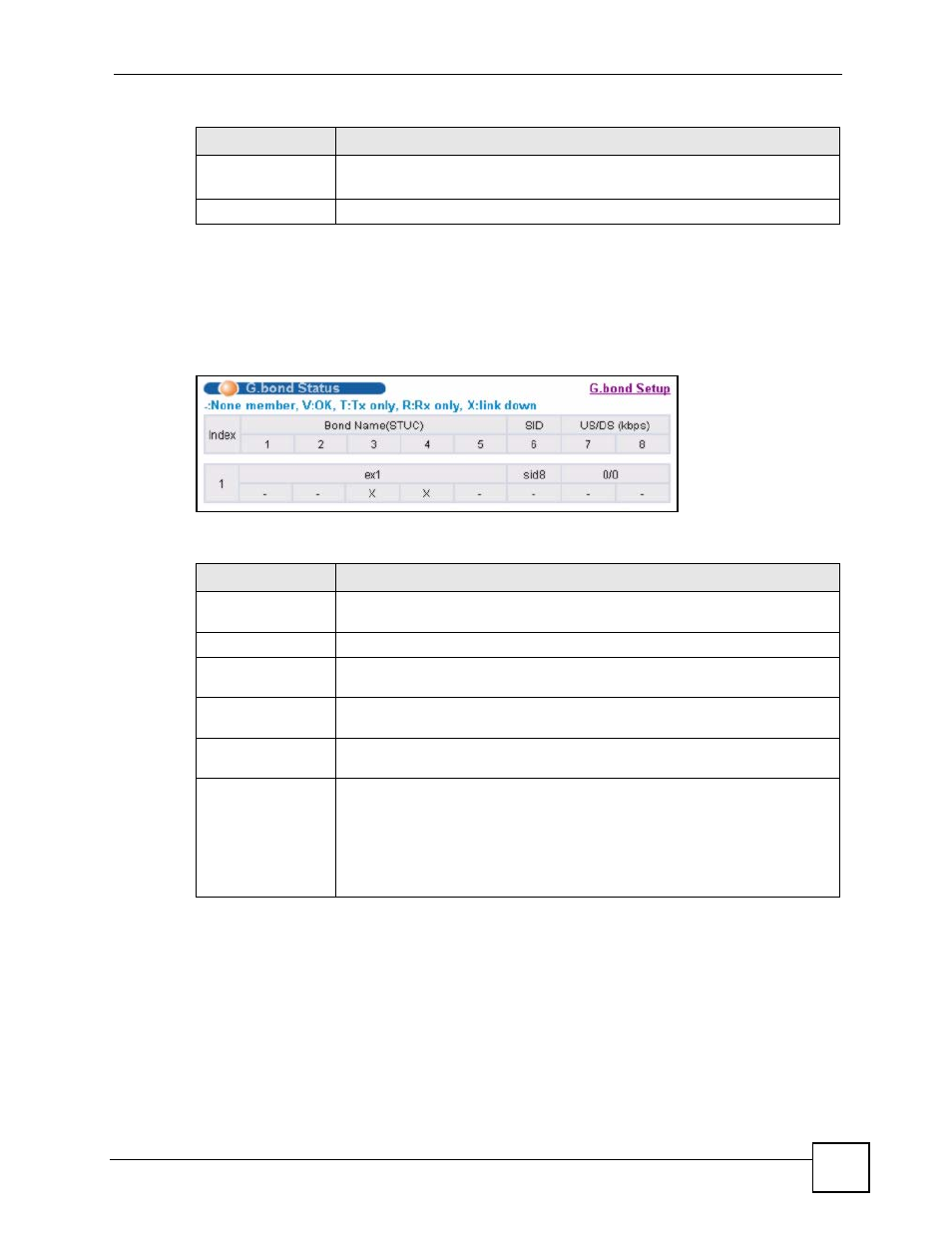

Figure 61 Basic Setting > G.bond > G.bond Status
The following table describes the labels in this screen.
Add
Apply Select this to add or update the bond.
Cancel Select this to clear the fields in this screen without saving any changes.
Table 31 Basic Setting > G.bond (continued)
LABEL DESCRIPTION
Table 32 Basic Setting > G.bond > G.bond Status
LABEL DESCRIPTION
G.bond Setup Click G.bond Setup to bond one or more ports into a logical link (see Section
16.2 on page 135 ).
Index This is the number of the bond.
Bond Name (STUC/
STUR)
This is the name of the bond.
SID This is the length of the sequence ID used in this bond. The STU-C specifies
this value.
US/DS (kbps) This is the current upstream bandwidth and current downstream bandwidth
used in this bond.
This field displays the role of each port in the bond.
-: This port is not a member of the bond.
V: This port is sending and receiving information in the bond.
T: This port is only sending information in the bond.
R: This port is only receiving information in the bond.
X: This port does not have a DSL connection.
