30.3 DSCP Map Screen
Use this screen to convert DSCP priority to IEEE 802.1p priority. To open this screen, click
Advanced Application > DSCP > DSCP Map.

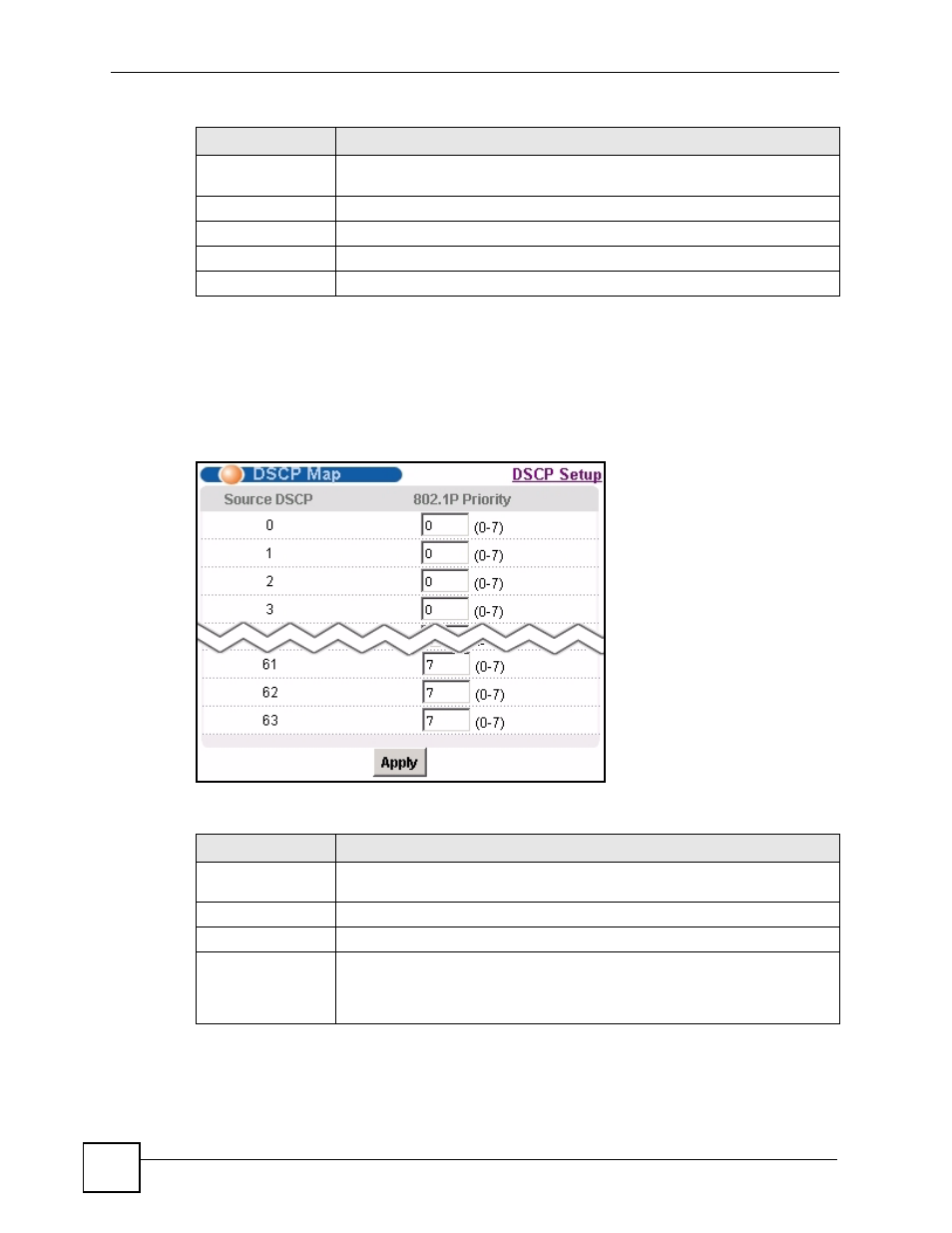

Figure 103 Advanced Application > DSCP > DSCP Map
The following table describes the labels in this screen.
Select Select this, and click Active or Inactive to enable or disable the DSCP on this
port.
Active Click this to enable DSCP on the selected ports.
Inactive Click this to disable DSCP on the selected ports.
All Click this to select all entries in the table.
None Click this to un-select all entries in the table.
Table 66 Advanced Application > DSCP (continued)
LABEL DESCRIPTION
Table 67 Advanced Application > DSCP > DSCP Map
LABEL DESCRIPTION
DSCP Map Click DSCP Setup to open the screen where you can activate or deactivate
DSCP on each port (see Section 30.2 on page 203 ).
Source DSCP This field displays each DSCP value.
802.1P Priority Enter the IEEE 802.1p priority to which you would like to map this DSCP value.
Apply Click Apply to save your changes to the IES-708-22A’s volatile memory. The
IES-708-22A loses these changes if it is turned off or loses power, so use the
Config Save link on the navigation panel to save your changes to the non-
volatile memory when you are done configuring.
