xDSL Line Data
15.1 xDSL Line Rate Info Screen
This screen displays a DSL port’s line operating values. Information obtained prior to training
to steady state transition will not be valid or will be old information.
To open this screen, click Basic Setting > xDSL Line Data.

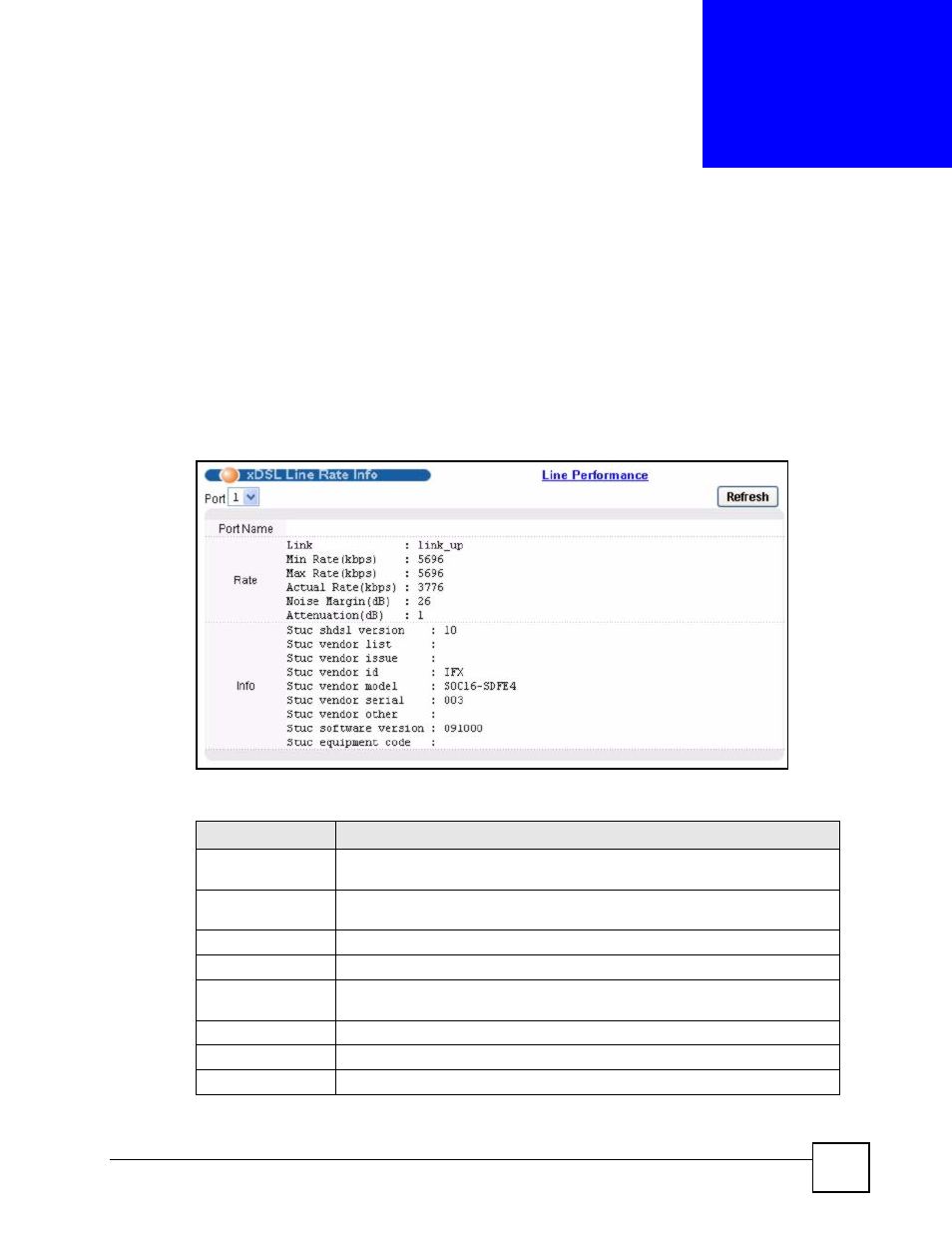

Figure 58 Basic Setting > xDSL Line Data
The following table describes the labels in this screen.
Table 29 Basic Setting > xDSL Line Data
LABEL
DESCRIPTION
Line Performance
Click Line Performance to display a DSL port’s line performance counters (see
).
Port
Use this drop-down list box to select a port for which you wish to view
information.
Refresh
Click Refresh to display updated information.
Port Name
This section displays the name of the port.
Rate
The rate fields display the transmission rates. “Line Down” indicates that the
DSL port is not connected to a subscriber.
Link
This displays the connection status of the DSL link.
Min Rate(kbps)
This is the minimum rate (in Kbps) of the DSL line.
Max Rate(kbps)
This is the maximum rate (in Kbps) of the DSL line.
