Chapter 18 IGMP
IES-708-22A User’s Guide
154

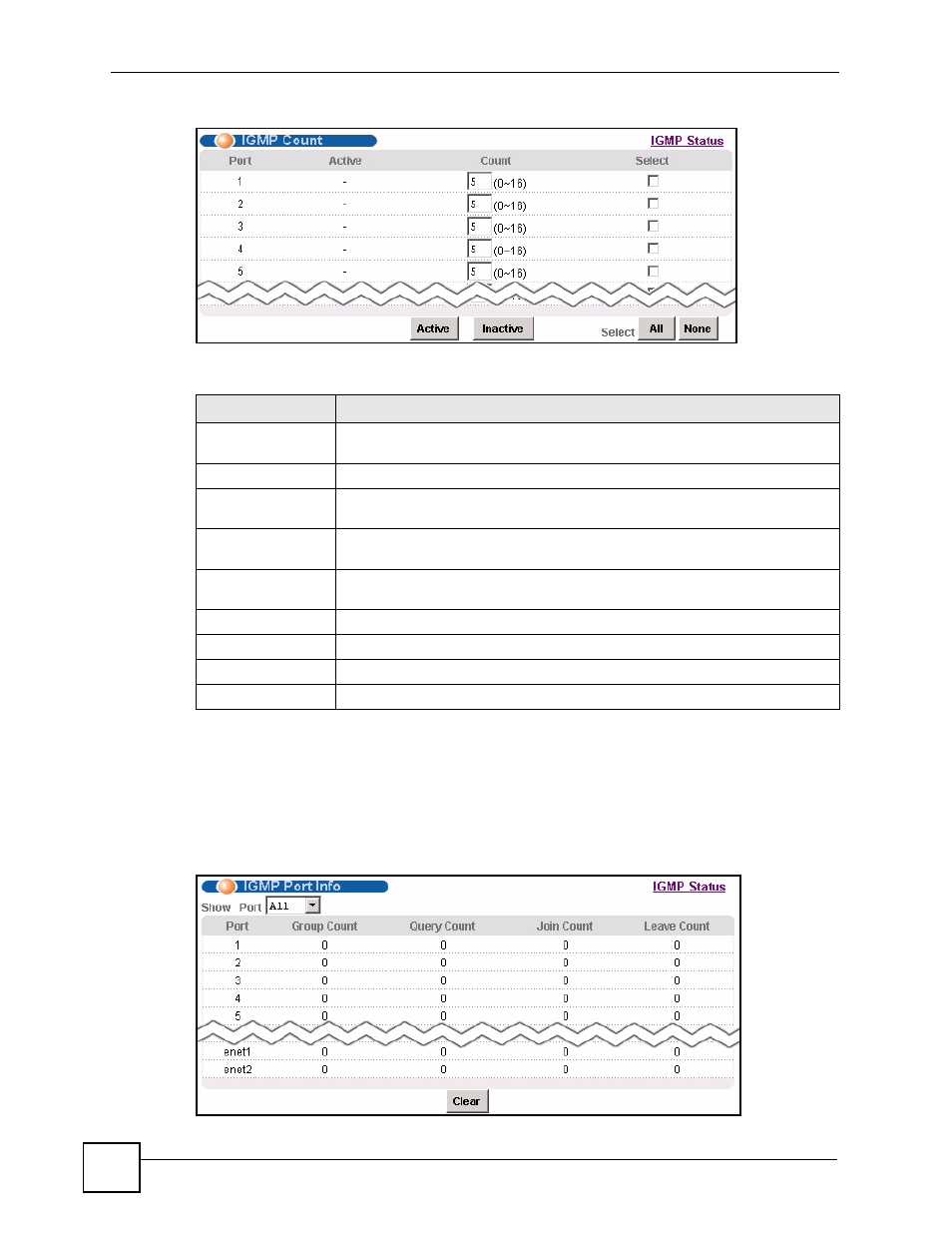

Figure 71 Advanced Application > IGMP > Count Setup
The following table describes the labels in this screen.
18.8 IGMP Port Info Screen
Use this screen to display the current number of IGMP-related packets received on each port.
To open this screen, click Advanced Application > IGMP > IGMP Port Info.
Figure 72 Advanced Application > IGMP > IGMP Port Info
Table 40 Advanced Application > IGMP > Count Setup
LABEL
DESCRIPTION
IGMP Status
Click IGMP Status to open the IGMP Setup screen where you can view current
Port
This field shows each DSL port number.
Active
This field shows whether or not the IGMP count limit is enabled on this port. “V”
displays if it is enabled and “-“ displays if it is disabled.
Count
Enter the maximum number of IGMP groups a subscriber on this port can join.
This has no effect if the IGMP count limit is disabled.
Select
Select this, and click Active or Inactive to enable or disable the specified IGMP
count limit on this port.
Active
Click this to enable the specified IGMP count limits on the selected ports.
Inactive
Click this to disable the specified IGMP count limits on the selected ports.
Select All
Click this to select all entries in the table.
Select None
Click this to un-select all entries in the table.
