Chapter 20 Multicast VLAN
IES-708-22A User’s Guide
161

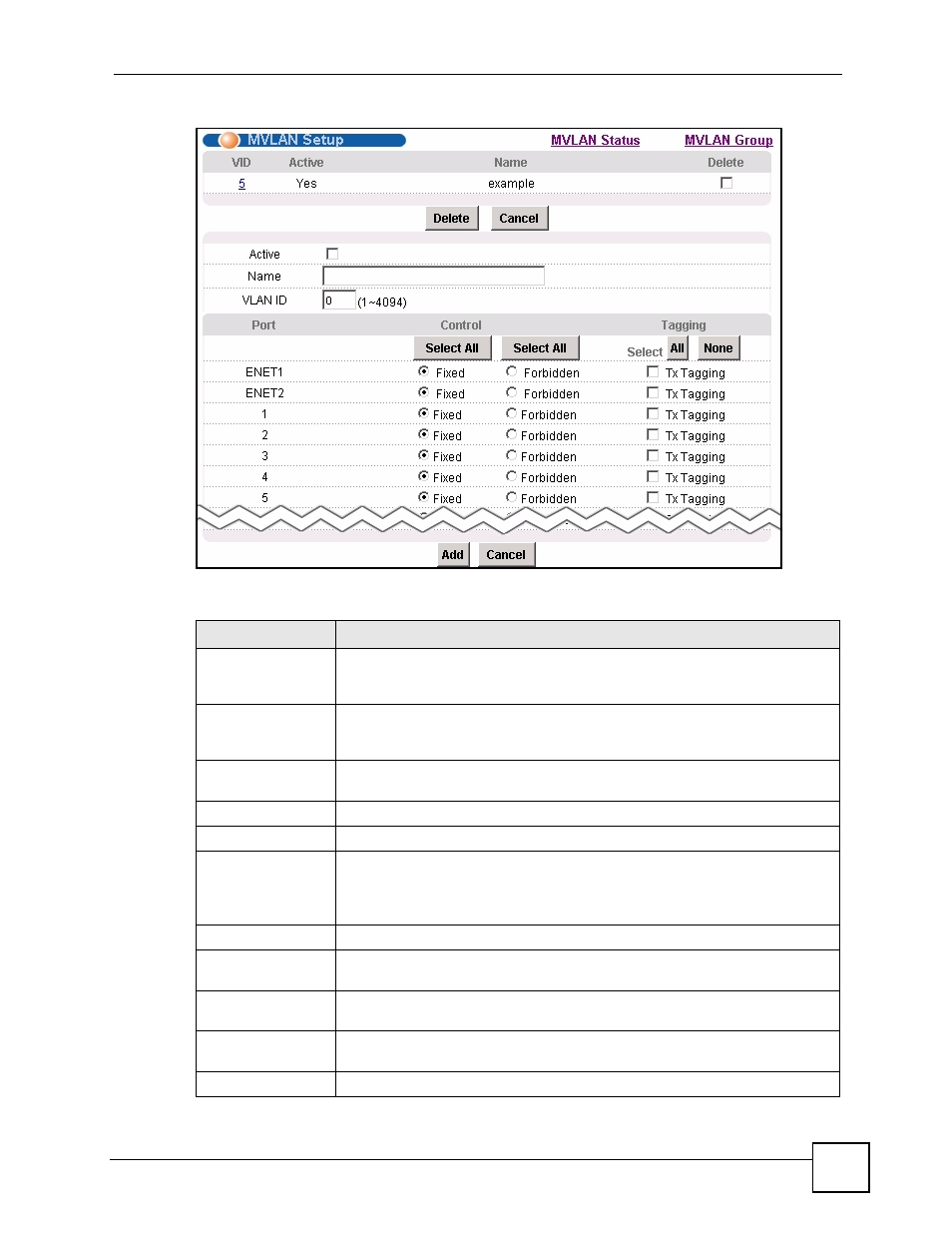

Figure 76 Advanced Application > Multicast VLAN > MVLAN Setup
The following table describes the labels in this screen.
Table 45 Advanced Application > Multicast VLAN > MVLAN Setup
LABEL DESCRIPTION
MVLAN Status Click MVLAN Status to open the MVLAN Status screen where you can view a
summary of all multicast VLAN on the IES-708-22A (see Section 20.2 on page
159 ).
MVLAN Group Click MVLAN Group to open the MVLAN Group screen where you can
configure ranges of multicast IP addresses for each multicast VLAN (see
Section 20.4 on page 162 ).
VID This field shows the VLAN ID of each multicast VLAN. Click it to edit its basic
settings and port members in the fields below.
Active This field shows whether this multicast VLAN is active (Yes) or inactive (No).
Name This field shows the name of this multicast VLAN.
Delete Select the check boxes of the rule(s) that you want to remove in the Delete
column and then click the Delete button.
You cannot delete a VLAN if any PVIDs are set to use the VLAN or the VLAN is
the CPU (management) VLAN.
Cancel Click Cancel to begin configuring the fields afresh.
Active Select this if you want the multicast VLAN to be active. Clear this if you want the
multicast VLAN to be inactive.
Name Enter a descriptive name for the multicast VLAN. The name can be 1-31
printable English keyboard characters long. Spaces are not allowed.
VLAN ID Enter the VLAN ID of the multicast VLAN; the valid range is between 1 and
4094.
Port This field displays each port number.
