YASNAC PCNC Operating Manual Chapter 3: HMI Process Operation
3.7.19 Ladder Monitor Screen

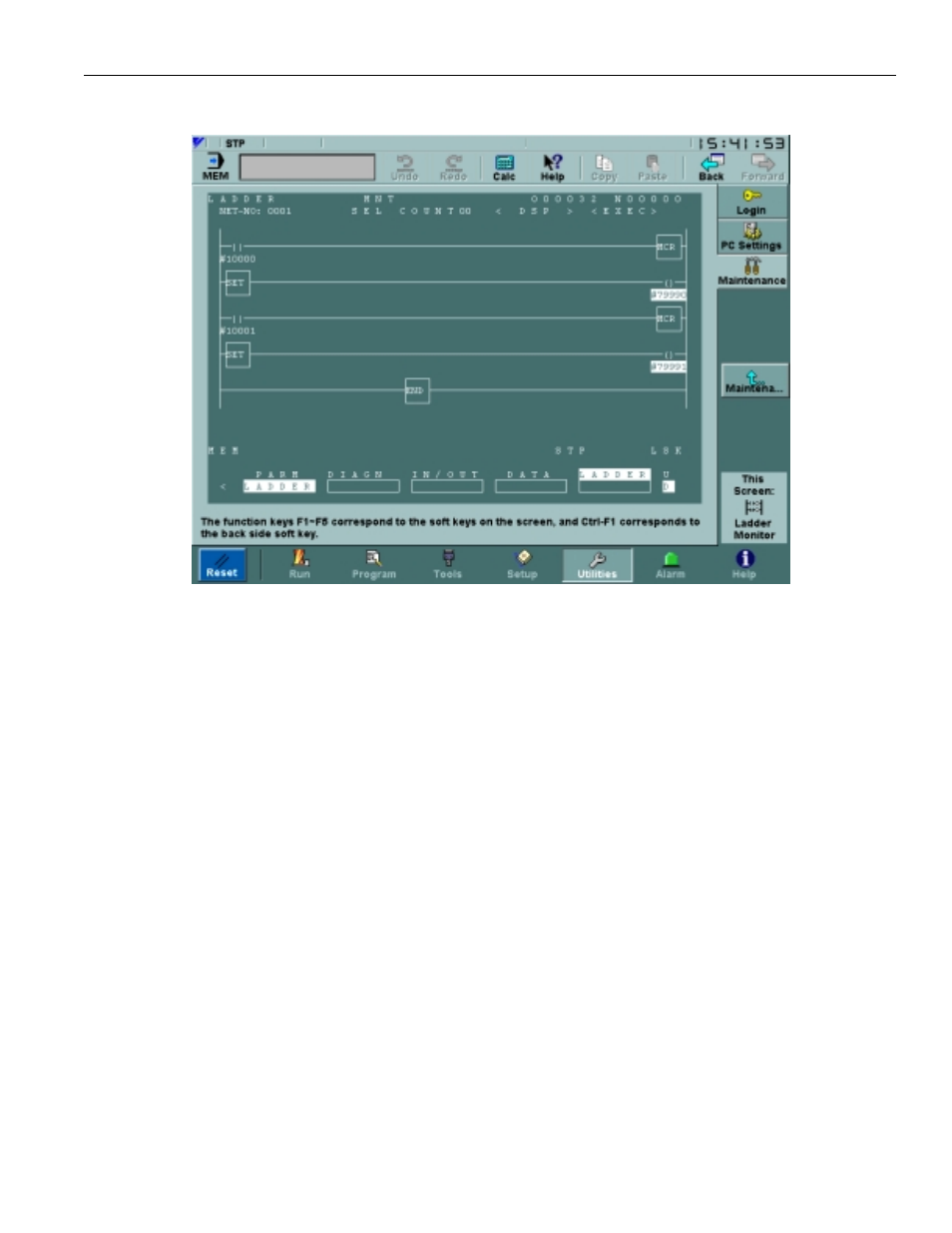

FIGURE 3.7.19.1. The Ladder Monitor Screen
The Ladder Monitor screen, shown in Figure 3.7.19.1 on page 93, is only shown for Machinist
level or higher. In this screen, the F1 through F5 soft keys can be used to view and edit the ladder.
3.7.20 Switch Label Screen
The Switch Label screen is used to configure the data shown in the Run:NC Switch screen, dis-
cussed in “NC Switch Screen” on page 33. To use this screen, MTB password or higher is
required. Changes made in this screen will affect the Run:NC Switch screen immediately.
The CNC tab, shown in Figure 3.7.20.1 on page 94, controls which switches in a list of 24 will be
in the CNC Switches box of the Run:NC Switch screen. A switch is displayed if its Enabled box
is checked. Switch labels, addresses and bits are not editable.
