98 K2 Storage Area Network Installation and Service Manual 26 October 2009
Chapter 4 Setting up K2 SAN infrastructure

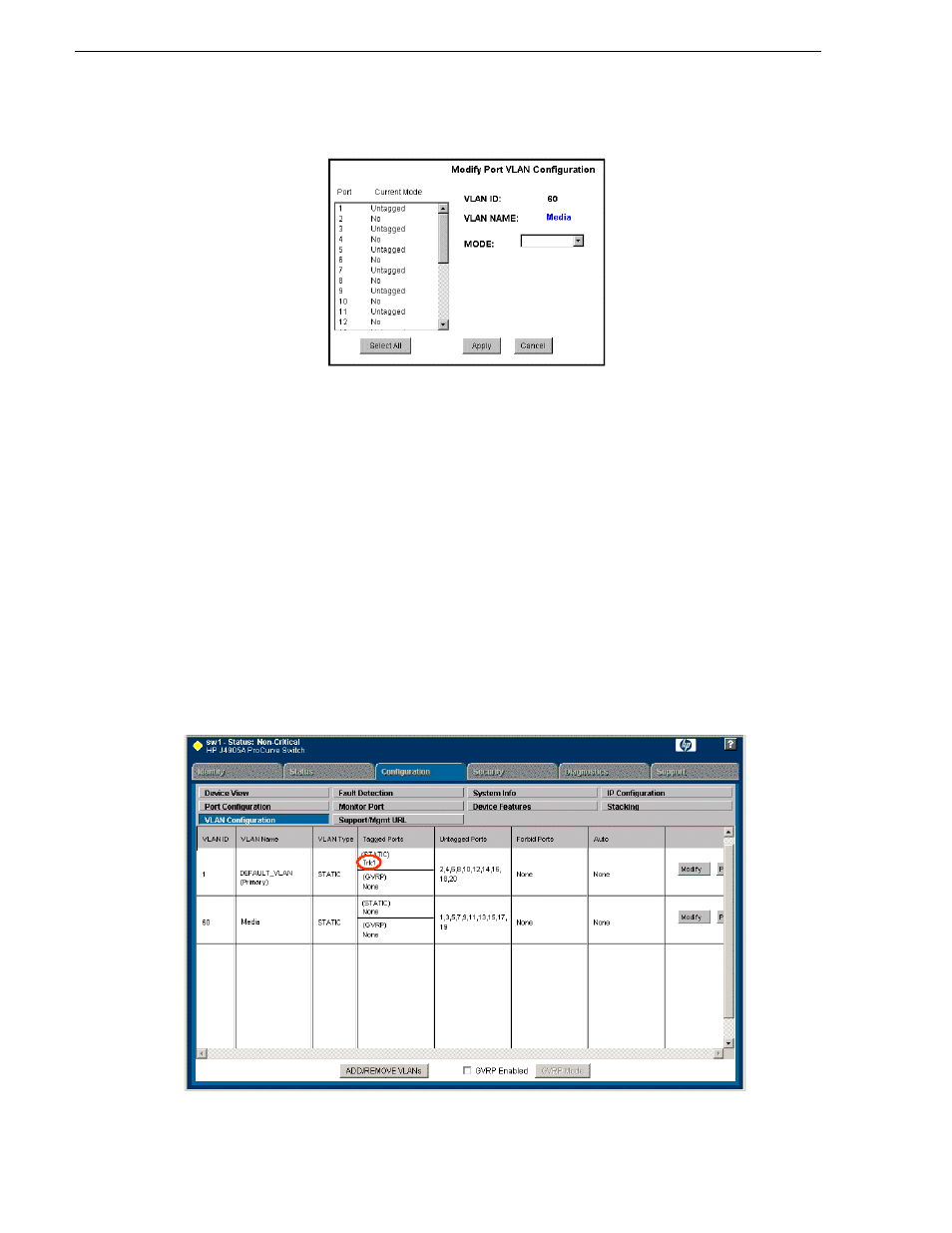

b. Select all the odd numbered ports. (Tip: Use Ctrl + Click.)
c. In the Mode drop-down list, select Untagged , then click Apply . This removes the
odd ports from the default (Control) VLAN.
If you have a trunk, do not configure it as “Tagged”. Media VLAN traffic
(iSCSI) does not go over the trunk.
17.Click the VLAN Configuration tab.
18.If you have a trunk, configure the default (Control) VLAN as follows:
a. In the DEFAULT_VLAN row, click Modify .
b. In the Current Mode list box, scroll down and select the trunk.
c. In the Mode drop-down list, select Tagged , then click Apply . This allows default
VLAN traffic (non-iSCSI) to go over the trunk.
19.Click the VLAN Configuration tab.
