26 October 2009 K2 Storage Area Network Installation and Service Manual 75

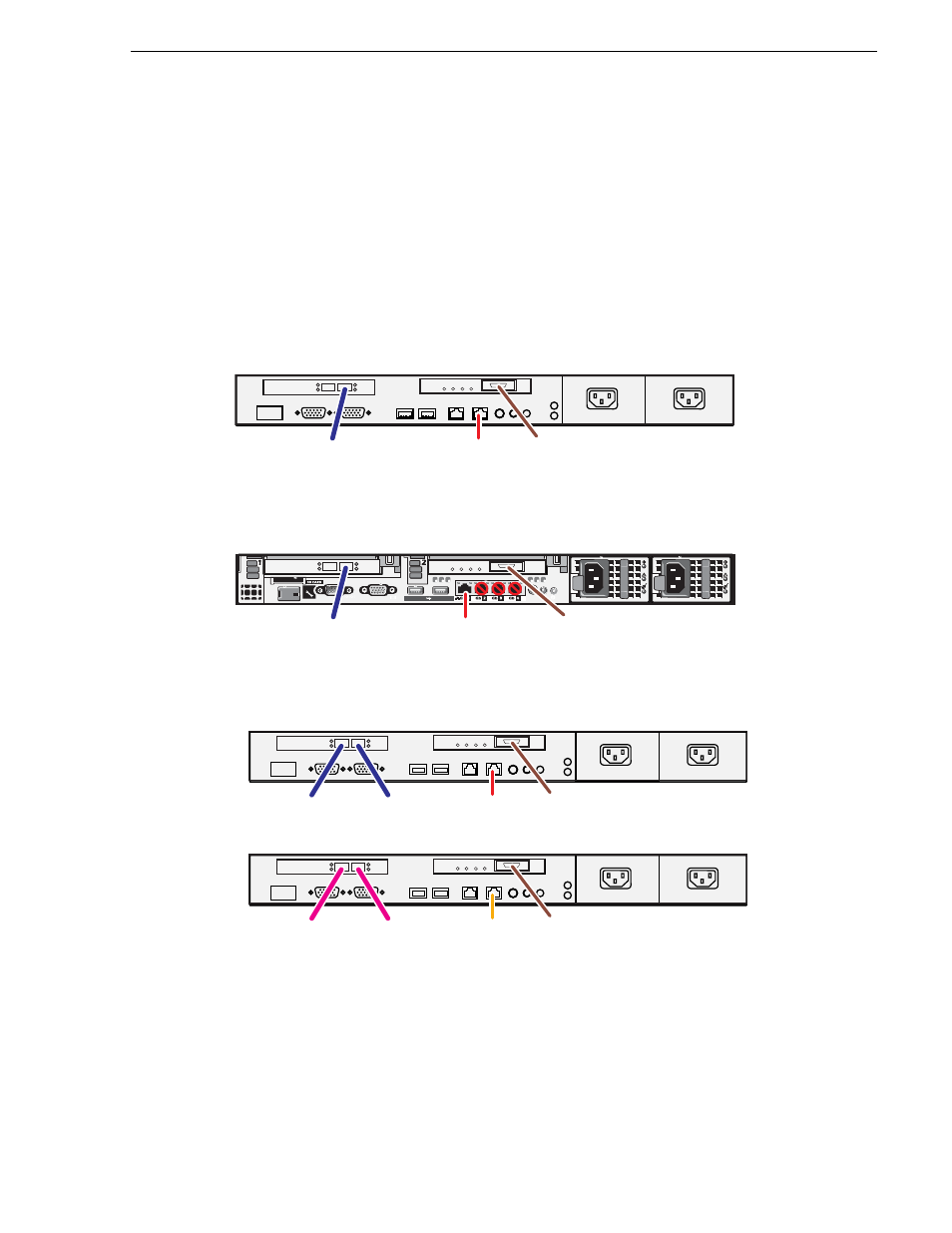

Cabling the NH K2 Media Server for a Nearline K2 SAN
Connect the motherboard GigE port 1 (control) and GigE port 2 (FTP) to control
ports on the GigE switch. For the NL10R system, connect server A to GigE
switch A and connect server B to the GigE switch B.
Connect Fibre Channel ports to the RAID storage device. For the NL10 system,
connect one Fibre Channel port to the RAID controller. For the NL10R system,
on each server connect one Fibre channel port to controller 0 and one Fibre
channel port to controller 1.
• For the NL10R system, install MPIO software on the NH1 K2 Media Server.
One NH1-10GE K2 Media Server – Dell 1950 PowerEdge – Nearline 10 K2 SAN
One NH1-10GE K2 Media Server – Dell R610 PowerEdge – Nearline 10 K2 SAN
Two NH1-10GE K2 Media Servers – Dell 1950 PowerEdge – Nearline 10R K2 SAN
1 2
Gb 2 Gb 1
To control port
on GigE switch FTP: To 10 Gig port
on GigE switch Fibre Channel
to RAID controller
To control port
on GigE switch FTP: To 10 Gig port
on GigE switch Fibre Channel
to RAID controller
1 2
Gb 2 Gb 1
Fibre Channel to
RAID controller 1 Fibre Channel to
RAID controller 0 To control port
on GigE switch A
1 2
Gb 2 Gb 1
Fibre Channel to
RAID controller 1 Fibre Channel to
RAID controller 0 To control port
on GigE switch B
A
B
FTP: To 10 Gig port
on GigE switch A
FTP: To 10 Gig port
on GigE switch B
